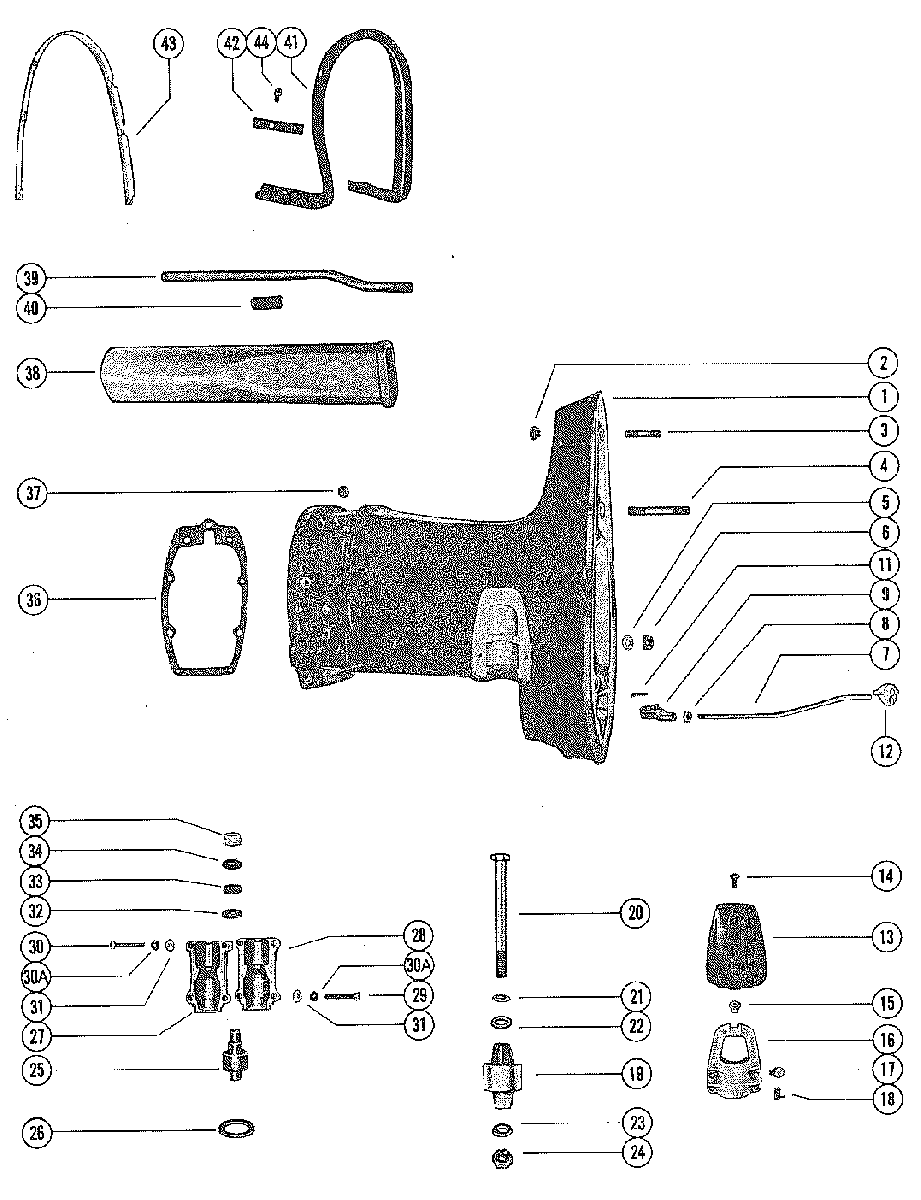

DRIVE SHAFT HOUSING ASSEMBLY для Mariner - 70 5361993 THRU 5702219

  • №
    Артикул
    Название
  • 1
    1592-8188A8 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
  • 1
    1593-7513A12 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
  • 2
    19-64649 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 3
    16-8M0022145 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (1 3/4")
  • 4
    16-57935 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (3")
  • 5
    12-65791 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
    WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
  • 7
    47835 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
    ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
  • 7
    47836 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
  • 8
    11-28770 NUT, JAM - PUSH ROD
    NUT, JAM - PUSH ROD
  • 9
    47837 ROD END, PUSH ROD
    ROD END, PUSH ROD
  • 11
    18-25191 COTTER PIN, PUSH ROD PIN
    COTTER PIN, PUSH ROD PIN
  • 12
    933361 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 13
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 14
    10-87884 SCREW, COVER TO LOWER MOUNT CLAMP (5/8")
    SCREW, COVER TO LOWER MOUNT CLAMP (5/8")
  • 15
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 16
    69592F1 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
  • 17
    10-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
    SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
  • 18
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 19
    75304T1 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 20
    10-75284 SCREW, LOWER MOUNT (5 1/2")
    SCREW, LOWER MOUNT (5 1/2")
  • 21
    12-28051 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 22
    12-28053 WASHER, RUBBER - LOWER MOUNT SCREW
    WASHER, RUBBER - LOWER MOUNT SCREW
  • 23
    12-61709 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 24
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 25
    923373 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 26
    96401 SEAL, BELLOWS - UPPER MOUNT
    SEAL, BELLOWS - UPPER MOUNT
  • 27
    79680A1 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 28
    79681 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 29
    10-69029 SCREW, UPPER MOUNT COVER - REAR (1 3/4")
    SCREW, UPPER MOUNT COVER - REAR (1 3/4")
  • 30
    10-67916 SCREW, UPPER MOUNT COVER - FRONT (2")
    SCREW, UPPER MOUNT COVER - FRONT (2")
  • 30A
    12-29245 WASHER, UPPER MOUNT COVER SCREW
    WASHER, UPPER MOUNT COVER SCREW
  • 31
    11-36069 NUT, UPPER MOUNT COVER SCREW
    NUT, UPPER MOUNT COVER SCREW
  • 32
    12-27727 WASHER, UPPER MOUNT BOLT (4/16 I.D.)
    WASHER, UPPER MOUNT BOLT (4/16 I.D.)
  • 33
    12-66966 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 34
    12-30514 WASHER, UPPER MOUNT BOLT (7/16 I.D.)
    WASHER, UPPER MOUNT BOLT (7/16 I.D.)
  • 35
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 36
    27-385011 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 37
    11-64809 NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
    NUT, POWERHEAD TO DRIVE SHAFT HOUSING STUDS (5/16")
  • 38
    695431 TUBE, EXHAUST (SHORT SHAFT)
    TUBE, EXHAUST (SHORT SHAFT)
  • 38
    695441 TUBE, EXHAUST (LONG SHAFT)
    TUBE, EXHAUST (LONG SHAFT)
  • 39
    32-37727 TUBE, WATER INLET (SHORT SHAFT)
    TUBE, WATER INLET (SHORT SHAFT)
  • 39
    32-45679 TUBE, WATER INLET (LONG SHAFT)
    TUBE, WATER INLET (LONG SHAFT)
  • 40
    23-23651 SLEEVE, WATER INLET TUBE
    SLEEVE, WATER INLET TUBE
  • 41
    38157 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 42
    38154 STRIP, RETAINING - TRIM COVER SEAL (SIDE)
    STRIP, RETAINING - TRIM COVER SEAL (SIDE)
  • 43
    38158 STRIP, RETAINING - TRIM COVER SEAL (REAR)
    STRIP, RETAINING - TRIM COVER SEAL (REAR)
  • 44
    10-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
    SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (SELF TAPPING)
