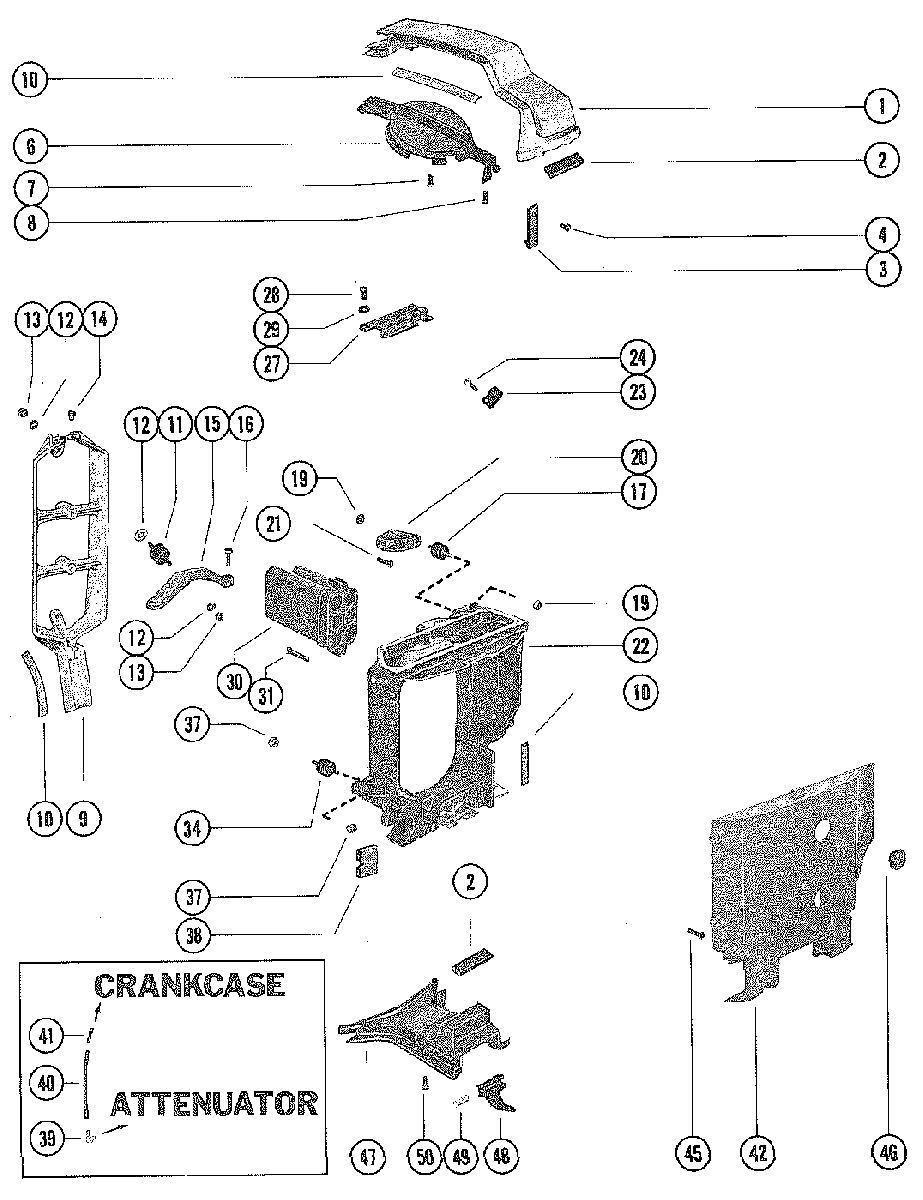

COWL SUPPORT BRACKETS для Mariner - 70 5361993 THRU 5702219
-
№АртикулНазвание
-
173641A2 BRACKET, COWL SUPPORT-TOPBRACKET, COWL SUPPORT-TOP
-
262444 SEAL, RUBBER-TOP BRACKET AND COVER MOUNTING PLATESEAL, RUBBER-TOP BRACKET AND COVER MOUNTING PLATE
-
379652 CLIP, TOP COWL SUPPORT BRACKETCLIP, TOP COWL SUPPORT BRACKET
-
410-48408 SCREW, CLIP TO TOP COWL SUPPORT (1/2")SCREW, CLIP TO TOP COWL SUPPORT (1/2")
-
679490 SHIELD, FLYWHEELSHIELD, FLYWHEEL
-
710-37656 SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8")
-
810-48408 SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")SCREW, SHIELD TO TOP SUPPORT BRACKET (1/2")
-
974510A2 BRACKET, COWL SUPPORT-REARBRACKET, COWL SUPPORT-REAR
-
10698761 SEAL, REAR BRACKET AND TOP BRACKETSEAL, REAR BRACKET AND TOP BRACKET
-
1190435 MOUNT, RUBBER-BRACE TO REAR SUPPORT BRACKETMOUNT, RUBBER-BRACE TO REAR SUPPORT BRACKET
-
1212-69057 WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
1311-20184 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKETNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
14269011 STOP, RUBBER-REAR SUPPORT BRACKETSTOP, RUBBER-REAR SUPPORT BRACKET
-
1560116 BRACE, REAR COWL SUPPORT BRACKET (TOP)BRACE, REAR COWL SUPPORT BRACKET (TOP)
-
1610-76596 SCREW, SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 1/4")SCREW, SUPPORT BRK. BRACE TO CYL. BLOCK COVER (1 1/4")
-
1790435 MOUNT, RUBBER-FRONT SUPPORT BRACKET TO BRACKETMOUNT, RUBBER-FRONT SUPPORT BRACKET TO BRACKET
-
1911-36069 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
2071097 BRACKET, RUBBER MOUNTBRACKET, RUBBER MOUNT
-
2110-824941 SCREW, BRACKET TO CRANKCASE (3/4")SCREW, BRACKET TO CRANKCASE (3/4")
-
2279489 ATTENUATOR, SOUNDATTENUATOR, SOUND
-
2354-28700 CLAMP, WIRES TO SOUND ATTENUATORCLAMP, WIRES TO SOUND ATTENUATOR
-
2410-98253 SCREW, CLAMP SCREWSCREW, CLAMP SCREW
-
2775841 COVER, MANUAL CHOKECOVER, MANUAL CHOKE
-
2810-38055 SCREW, COVER TO TOP COVERSCREW, COVER TO TOP COVER
-
2912-56681 WASHER, COVER SCREWWASHER, COVER SCREW
-
3073986 AIR MANIFOLDAIR MANIFOLD
-
3110-69093 SCREW, AIR MANIFOLD TO SOUND ATTENUATORSCREW, AIR MANIFOLD TO SOUND ATTENUATOR
-
3490435 MOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTER COVERMOUNT, RUBBER-FRONT SUPPORT TO STARTER MOTER COVER
-
3711-36069 NUT, RUBBER MOUNT ATTACHINGNUT, RUBBER MOUNT ATTACHING
-
3876410 SEAL, FUEL CONNECTOR-SOUND ATTENUATORSEAL, FUEL CONNECTOR-SOUND ATTENUATOR
-
3921-428671 CONNECTOR, ATTENUATORCONNECTOR, ATTENUATOR
-
4032-9938779 TUBE, VENT (LOWER)TUBE, VENT (LOWER)
-
4122-15133 ELBOW, CRANKCASE VENT (PRESS IN)ELBOW, CRANKCASE VENT (PRESS IN)
-
4276578 COVER, SOUND ATTENUATOR (FRONT)COVER, SOUND ATTENUATOR (FRONT)
-
4510-37571 SCREW, FRONT COVER TO SOUND TO ATTENUATOR (1/2")SCREW, FRONT COVER TO SOUND TO ATTENUATOR (1/2")
-
4619-73336 PLUG, FRONT COVERPLUG, FRONT COVER
-
4776251A1 PLATE ASSEMBLY, FRONT COVER MOUNTINGPLATE ASSEMBLY, FRONT COVER MOUNTING
-
4876264 LATCH, FRONT COVER ATTACHINGLATCH, FRONT COVER ATTACHING
-
4924-60295 SPRING, FRONT COVR LATCHSPRING, FRONT COVR LATCH
-
5010-28635 SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")SCREW, COVER PLATE TO SUPPORT BRACKET (5/8")
