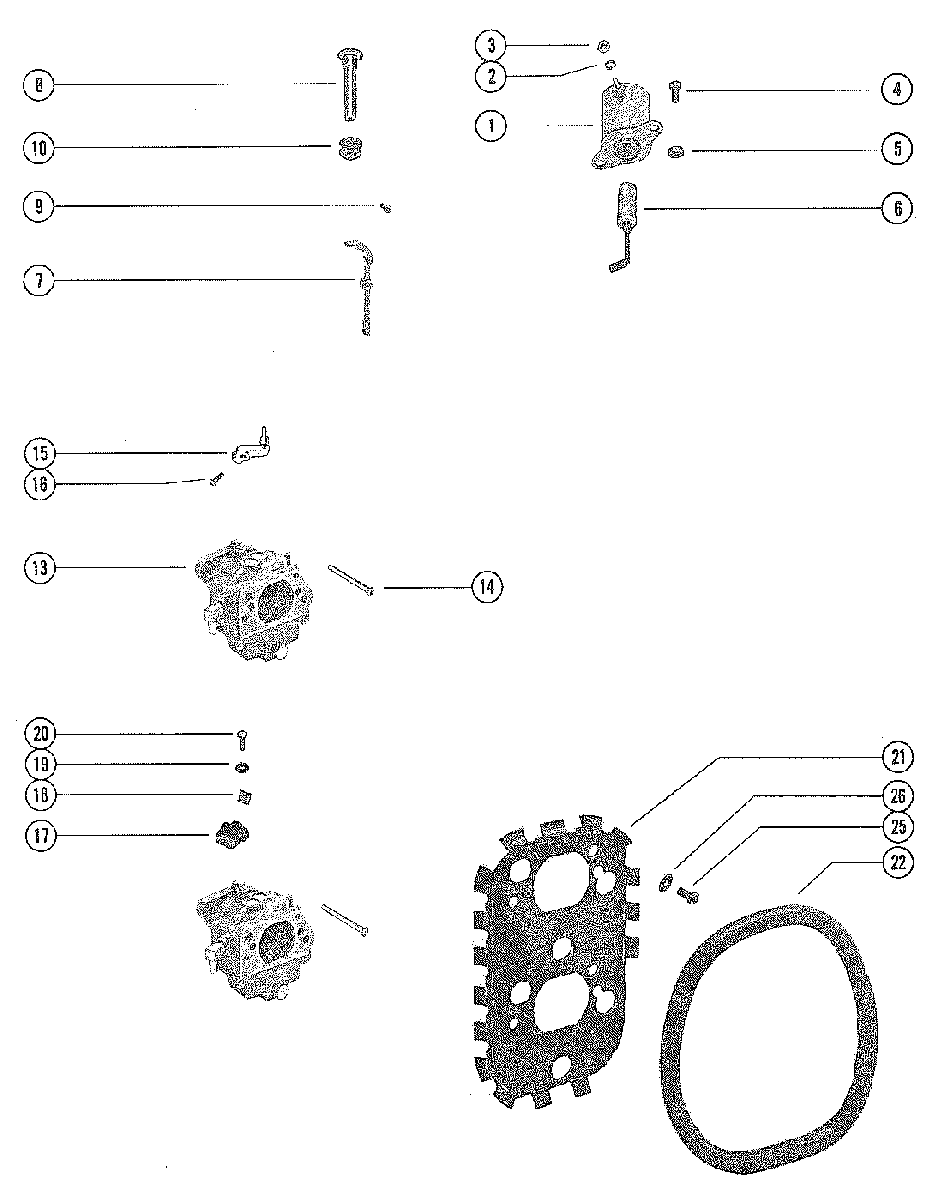

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mariner - 70 5361993 THRU 5702219

  • №
    Артикул
    Название
  • 1
    60549A7 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
    LOCKWASHER, HARNESS LEAD TO CHOKE SOLENOID
  • 3
    11-68219 NUT, HARNESS LEAD TO SOLENOID ATTACHING
    NUT, HARNESS LEAD TO SOLENOID ATTACHING
  • 4
    10-33524 SCREW, CHOKE SOLENOID ATTACHING (5/8")
    SCREW, CHOKE SOLENOID ATTACHING (5/8")
  • 5
    11-29250 NUT, CHOKE SOLENOID ATTACHING SCREWS
    NUT, CHOKE SOLENOID ATTACHING SCREWS
  • 6
    89008A2 PLUNGER ASSEMBLY, CHOKE SOLENOID
    PLUNGER ASSEMBLY, CHOKE SOLENOID
  • 7
    76076A1 CHOKE ROD
    CHOKE ROD
  • 8
    90242A1 CHOKE KNOB ASSEMBLY
    CHOKE KNOB ASSEMBLY
  • 9
    10-77137 SCREW, WIRE TO CHOKE KNOB
    SCREW, WIRE TO CHOKE KNOB
  • 10
    25-20116 GROMMET, CHOKE KNOB
    GROMMET, CHOKE KNOB
  • 13
    1379-6071A23 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 14
    10-52743 SCREW, CARBURETOR TO CRANKCASE (3 3/4")
    SCREW, CARBURETOR TO CRANKCASE (3 3/4")
  • 15
    77583 LEVER, THROTTLE
    LEVER, THROTTLE
  • 16
    10-60293 SCREW, LEVER TO CARBURETOR
    SCREW, LEVER TO CARBURETOR
  • 17
    60292A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 18
    28-89694 INSERT, THROTTLE SHAFT COUPLING
    INSERT, THROTTLE SHAFT COUPLING
  • 19
    11-92500 WASHER, ROLLED-COUPLING
    WASHER, ROLLED-COUPLING
  • 20
    10-60293 SCREW, ROLLED WASHER TO COUPLING
    SCREW, ROLLED WASHER TO COUPLING
  • 21
    76904A1 PLATE ASSEMBLY, CARBURETOR
    PLATE ASSEMBLY, CARBURETOR
  • 22
    71090 SEAL, CARBURETOR PLATE
    SEAL, CARBURETOR PLATE
  • 25
    10-20367 SCREW, PLATE TO CARBURETOR (7/16")
    SCREW, PLATE TO CARBURETOR (7/16")
  • 26
    12-29245 WASHER, PLATE SCREW
    WASHER, PLATE SCREW
