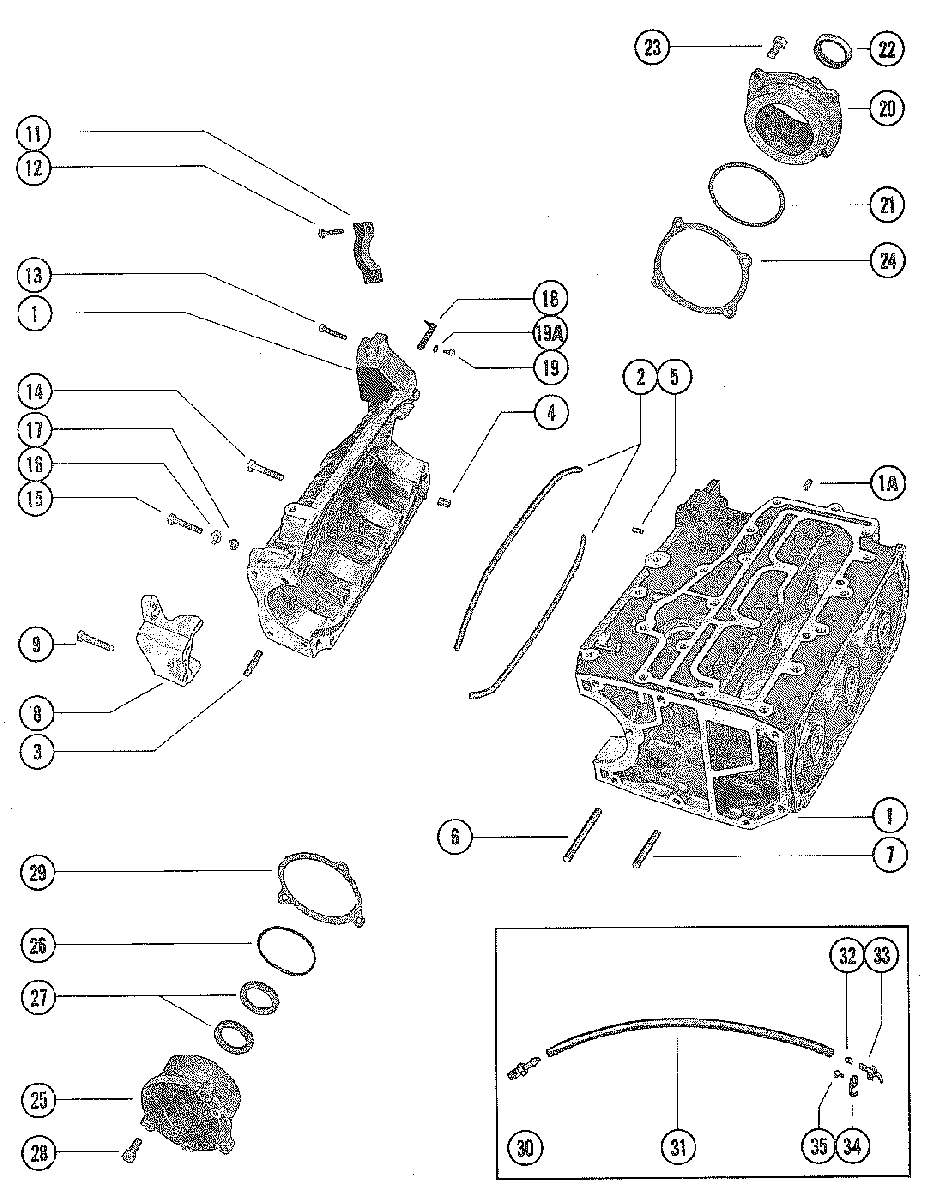

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mariner - 70 5361993 THRU 5702219

  • №
    Артикул
    Название
  • 1
    865-8362A11 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
  • 1A
    66517 RESTRICTOR, CRANKCASE BLEED
    RESTRICTOR, CRANKCASE BLEED
  • 2
    27-60286 GASKET, CRANKCASE TO CYLINDER BLOCK
    GASKET, CRANKCASE TO CYLINDER BLOCK
  • 3
    16-68201 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")
  • 4
    17-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
    DOWEL PIN, CRANKCASE TO CYLINDER BLOCK
  • 5
    17-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
    DOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
  • 6
    16-68203 STUD, BLOCK TO DRIVE SHAFT HOUSING (4")
    STUD, BLOCK TO DRIVE SHAFT HOUSING (4")
  • 7
    16-68202 STUD, BLOCK TO DRIVE SHAFT HSG. (3")-EXHAUST SIDE
    STUD, BLOCK TO DRIVE SHAFT HSG. (3")-EXHAUST SIDE
  • 7
    16-68167 STUD, BLOCK TO HOUSING (2 9/16")-TRANSFER SIDE
    STUD, BLOCK TO HOUSING (2 9/16")-TRANSFER SIDE
  • 8
    76975 COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)
    COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)
  • 9
    10-815549 SCREW, STARTER MOTOR COVER (2")
    SCREW, STARTER MOTOR COVER (2")
  • 11
    79735A1 COVER, STARTER MOTOR TO CRANKCASE (TOP)
    COVER, STARTER MOTOR TO CRANKCASE (TOP)
  • 12
    10-58414 SCREW, STARTER MOTOR COVER (2 1/2")
    SCREW, STARTER MOTOR COVER (2 1/2")
  • 12
    10-35385 SCREW, STARTER MOTOR COVER (1 3/4")
    SCREW, STARTER MOTOR COVER (1 3/4")
  • 13
    10-35385 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
  • 14
    10-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
  • 15
    10-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
  • 16
    12-26020 WASHER, CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)
    WASHER, CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)
  • 17
    11-29250 NUT, CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)
    NUT, CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)
  • 18
    79736 INDICATOR, TIMING
    INDICATOR, TIMING
  • 19
    10-58414 SCREW, INDICATOR TO STARTER COVER
    SCREW, INDICATOR TO STARTER COVER
  • 19A
    12-56720 WASHER, INDICATOR SCREW
    WASHER, INDICATOR SCREW
  • 20
    1161-6357A1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 21
    25-64966 "O"RING, END CAP
    "O"RING, END CAP
  • 22
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 23
    10-812618 SCREW, UPPER END CAP MOUNTING (1")
    SCREW, UPPER END CAP MOUNTING (1")
  • 24
    15-73644A1 SHIM, UPPER END CAP (.006-8-10)
    SHIM, UPPER END CAP (.006-8-10)
  • 25
    1144-6691A1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 26
    25-32546 "O"RING, END CAP
    "O"RING, END CAP
  • 27
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 28
    10-30225 SCREW, LOWER END CAP MOUNTING (1")
    SCREW, LOWER END CAP MOUNTING (1")
  • 29
    15-20085A1 SHIM, LOWER END CAP (.002-3-5-10)
    SHIM, LOWER END CAP (.002-3-5-10)
  • 30
    22-291112 CONNECTOR, HOSE TO CYLINDER BLOCK
    CONNECTOR, HOSE TO CYLINDER BLOCK
  • 31
    32-774572 HOSE, TELL TALE (15")
    HOSE, TELL TALE (15")
  • 32
    23-90882 SLEEVE, TELL TALE HOSE
    SLEEVE, TELL TALE HOSE
  • 33
    69555001 NOZZLE, TELL TALE-REAR SUPPORT BRACKET
    NOZZLE, TELL TALE-REAR SUPPORT BRACKET
  • 34
    54-70705 CLAMP, TELL TALE NOZZLE
    CLAMP, TELL TALE NOZZLE
  • 35
    10-48408 SCREW, TELL TALE CLAMP
    SCREW, TELL TALE CLAMP
