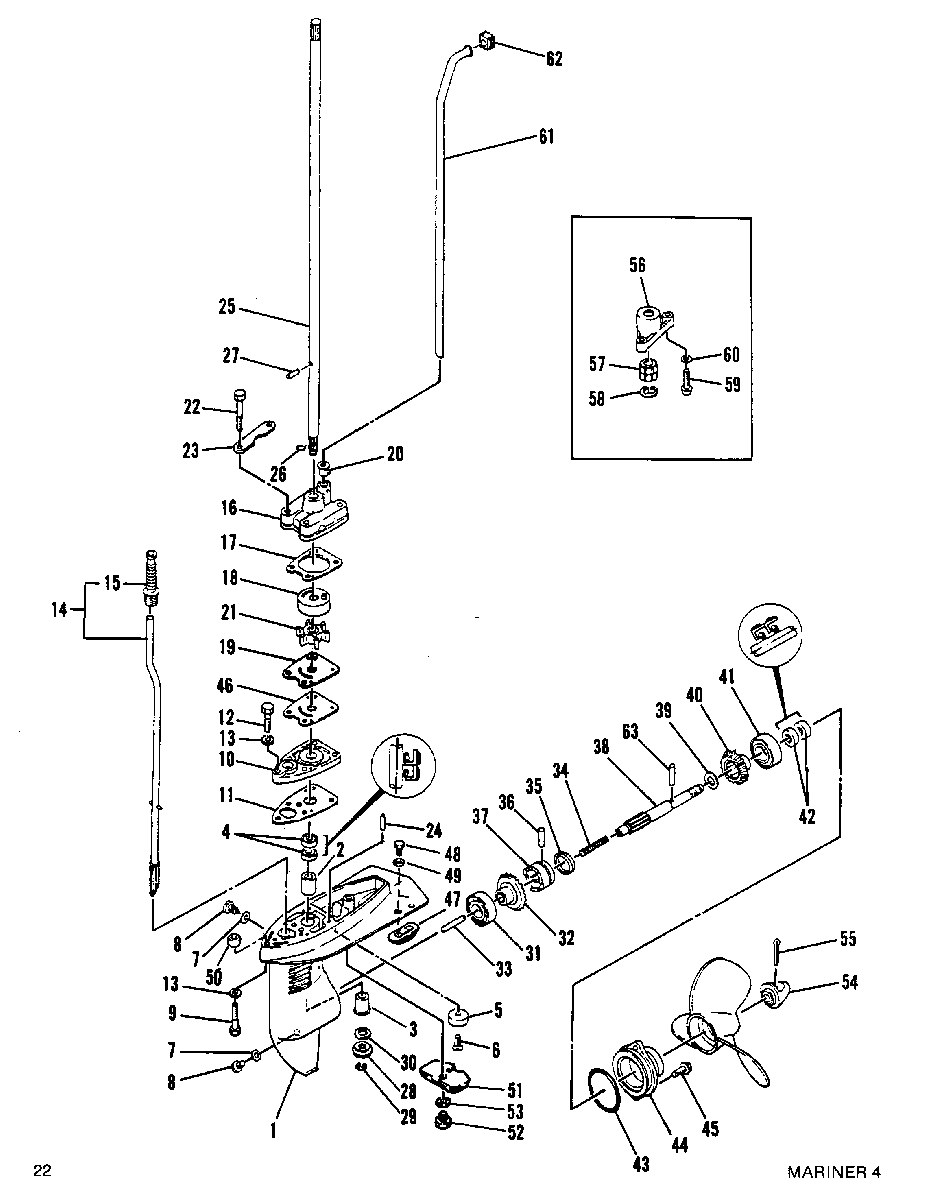

GEARHOUSING ASSEMBLY для Mariner - 4A 6E0-300101 AND UP

  • №
    Артикул
    Название
  • 0-1
    1651-810952M GEARHOUSING ASS'Y (SHORT)
    SERIAL (M-114253 ML-338166) AND ABOVE
    GEARHOUSING ASS'Y (SHORT)
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 0-1
    1651-810952M GEARHOUSING ASS'Y (SHORT)
    SERIAL (M-114252 ML-338165) AND BELOW
    GEARHOUSING ASS'Y (SHORT)
    SERIAL (M-114252 ML-338165) AND BELOW
  • 0-1
    1651-810953M GEARHOUSING ASS'Y (LONG)
    SERIAL (M-114253 ML-338166) AND ABOVE
    GEARHOUSING ASS'Y (LONG)
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 0-1
    1651-810953M GEARHOUSING ASS'Y (LONG)
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
    GEARHOUSING ASS'Y (LONG)
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
  • 0-1
    1651-810953M GEARHOUSING ASS'Y (LONG)
    SERIAL (M-093347 ML-332747) AND BELOW
    GEARHOUSING ASS'Y (LONG)
    SERIAL (M-093347 ML-332747) AND BELOW
  • 1
    1651-810954M GEARHOUSING
    SERIAL (M-114253 ML-338166) AND ABOVE
    GEARHOUSING
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 1
    1651-8259M GEARHOUSING
    SERIAL (M-093348 THRU 114252 NL-332748 THRU 338165)
    GEARHOUSING
    SERIAL (M-093348 THRU 114252 NL-332748 THRU 338165)
  • 1
    1651-8259M GEARHOUSING
    SERIAL (M-093347 ML-332747) AND BELOW
    GEARHOUSING
    SERIAL (M-093347 ML-332747) AND BELOW
  • 2
    23-95476M BUSHING
    SERIAL (M-043239 ML-212355) AND ABOVE
    BUSHING
    SERIAL (M-043239 ML-212355) AND ABOVE
  • 3
    23-95477M BUSHING
    SERIAL (M-043239 ML-212355) AND ABOVE
    BUSHING
    SERIAL (M-043239 ML-212355) AND ABOVE
  • 4
    26-91726M OIL SEAL
    OIL SEAL
  • 5
    95609M ANODE
    SERIAL (M-055866 THRU 114252 ML-321427 THRU 338165)
    ANODE
    SERIAL (M-055866 THRU 114252 ML-321427 THRU 338165)
  • 5
    43107M ANODE
    SERIAL (M-055885 ML-321425) AND BELOW
    ANODE
    SERIAL (M-055885 ML-321425) AND BELOW
  • 6
    10-91772M SCREW
    SERIAL (M-055886 THRU 114252 ML-321427 THRU 338165)
    SCREW
    SERIAL (M-055886 THRU 114252 ML-321427 THRU 338165)
  • 6
    10-84367M SCREW
    SERIAL (M-055885 ML-321426) AND BELOW
    SCREW
    SERIAL (M-055885 ML-321426) AND BELOW
  • 7
    27-81987 GASKET
    GASKET
  • 8
    22-81924M PLUG
    PLUG
  • 9
    10-18851M BOLT, W/WASHER
    SERIAL (M-093348 ML-332748) AND ABOVE
    BOLT, W/WASHER
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 9
    10-14185M BOLT, W/WASHER
    SERIAL (M-103610 ML-335564) AND BELOW
    BOLT, W/WASHER
    SERIAL (M-103610 ML-335564) AND BELOW
  • 9
    10-83285M BOLT
    SERIAL (M-070823 ML-325783) AND BELOW
    BOLT
    SERIAL (M-070823 ML-325783) AND BELOW
  • 10
    8M0080450 PLATE
    SERIAL (M-103611 ML-335565) AND ABOVE
    PLATE
    SERIAL (M-103611 ML-335565) AND ABOVE
  • 10
    8M0080450 PLATE
    SERIAL (M-103610 ML-335564) AND BELOW
    PLATE
    SERIAL (M-103610 ML-335564) AND BELOW
  • 10
    8M0080450 PLATE
    SERIAL (M-055885 ML-321426) AND BELOW
    PLATE
    SERIAL (M-055885 ML-321426) AND BELOW
  • 11
    27-96295 GASKET
    GASKET
  • 12
    10-82405M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    96297M SHIFT CAM ASS'Y (SHORT)
    SHIFT CAM ASS'Y (SHORT)
  • 14
    96298M SHIFT CAM ASS'Y (LONG)
    SHIFT CAM ASS'Y (LONG)
  • 15
    15304M BOOT, SHIFT ROD
    BOOT, SHIFT ROD
  • 16
    46-96299M HOUSING, WATER PUMP
    HOUSING, WATER PUMP
  • 17
    27-96300 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 18
    96301M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 18
    96302M INSERT, CHROME (OPT)
    INSERT, CHROME (OPT)
  • 19
    96303M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 19
    96304M OUTER PLATE, CHROME (OPT)
    OUTER PLATE, CHROME (OPT)
  • 20
    26-14186M SEAL
    SERIAL (M-070824 ML-325784) AND ABOVE
    SEAL
    SERIAL (M-070824 ML-325784) AND ABOVE
  • 20
    26-80398M SEAL
    SERIAL (M-070823 ML-325783) AND BELOW
    SEAL
    SERIAL (M-070823 ML-325783) AND BELOW
  • 21
    47-96305M IMPELLER
    IMPELLER
  • 22
    10-84657M BOLT
    BOLT
  • 23
    96306M PLATE
    PLATE
  • 24
    17-82357M PIN
    PIN
  • 25
    45-96307M DRIVESHAFT (SHORT)
    DRIVESHAFT (SHORT)
  • 25
    45-96308M DRIVESHAFT (LONG)
    DRIVESHAFT (LONG)
  • 26
    53-96309M CLIP
    CLIP
  • 27
    17-82355M PIN
    PIN
  • 28
    43-96310M PINION
    PINION
  • 29
    53-82331M SNAP RING
    SNAP RING
  • 30
    12-96311M WASHER
    WASHER
  • 31
    30-82291T BEARING
    SERIAL (M-070824 ML-325784) AND ABOVE
    BEARING
    SERIAL (M-070824 ML-325784) AND ABOVE
  • 31
    30-82291T BEARING
    SERIAL (M-070823 ML-325783) AND BELOW
    BEARING
    SERIAL (M-070823 ML-325783) AND BELOW
  • 32
    43-96312M GEAR, FORWARD
    GEAR, FORWARD
  • 33
    81014M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 34
    24-82077M SPRING
    SPRING
  • 35
    53-81013M RING, CROSS PIN
    RING, CROSS PIN
  • 36
    17-81902M PIN, CROSS
    PIN, CROSS
  • 37
    52-96313M CLUTCH, DOG
    CLUTCH, DOG
  • 38
    44-96314M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 39
    12-96315M WASHER
    WASHER
  • 40
    43-96316M GEAR, REVERSE
    GEAR, REVERSE
  • 41
    30-82291T BEARING
    SERIAL (M-043239 ML-212355) AND ABOVE
    BEARING
    SERIAL (M-043239 ML-212355) AND ABOVE
  • 41
    30-82291T BEARING
    SERIAL (M-043238 ML-212354) AND BELOW
    BEARING
    SERIAL (M-043238 ML-212354) AND BELOW
  • 42
    26-96317M OIL SEAL
    OIL SEAL
  • 43
    25-82280M O-RING
    O-RING
  • 44
    96318M CAP, GEARHOUSING
    CAP, GEARHOUSING
  • 45
    10-91686M BOLT
    BOLT
  • 46
    27-41822 GASKET, WATER PUMP
    SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)
    GASKET, WATER PUMP
    SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)
  • 47
    97-18852M ANODE
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
    ANODE
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
  • 48
    10-826957M BOLT
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
    BOLT
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
  • 49
    12-82214M WASHER
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
    WASHER
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
  • 50
    18853M COLLAR
    SERIAL (M-093348 ML-332748) AND ABOVE
    COLLAR
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 51
    810945M ANODE
    SERIAL (M-114253 ML-338166) AND ABOVE
    ANODE
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 52
    10-91772M SCREW
    SERIAL (M-114253 ML-338166) AND ABOVE
    SCREW
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 53
    12-82214M WASHER
    SERIAL (M-114253 ML-338166) AND ABOVE
    WASHER
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 54
    859931 NUT, PROPELLER
    NUT, PROPELLER
  • 55
    18-82132M PIN,C OTTER
    PIN,C OTTER
  • 56
    96321M HOUSING, BEARING (LONG)
    HOUSING, BEARING (LONG)
  • 57
    23-96322M BUSHING, DRIVE SHAFT (LONG)
    BUSHING, DRIVE SHAFT (LONG)
  • 58
    53-96323M SNAP RING (LONG)
    SNAP RING (LONG)
  • 59
    10-83108M SCREW (LONG)
    SCREW (LONG)
  • 60
    12-82211M WASHER (LONG)
    WASHER (LONG)
  • 61
    32-96319M TUBE, WATER (SHORT)
    TUBE, WATER (SHORT)
  • 61
    32-96320M TUBE, WATER (LONG)
    TUBE, WATER (LONG)
  • 62
    26-80397M SEAL
    SEAL
  • 63
    17-17554M PIN, DRIVE
    PIN, DRIVE
  • 63
    27-96324M LOWER UNIT GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 16.
    LOWER UNIT GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 16.
  • 63
    96325T WATER PUMP REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 17.
    WATER PUMP REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 17.
  • 63
    96326M CHROME PUMP KIT (OPT)
    CONTENTS INDICATED BY FOOTNOTE 18.
    CHROME PUMP KIT (OPT)
    CONTENTS INDICATED BY FOOTNOTE 18.
  • --
    27-99997M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
  • --
    27-91719M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
  • --
    27-14188M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
