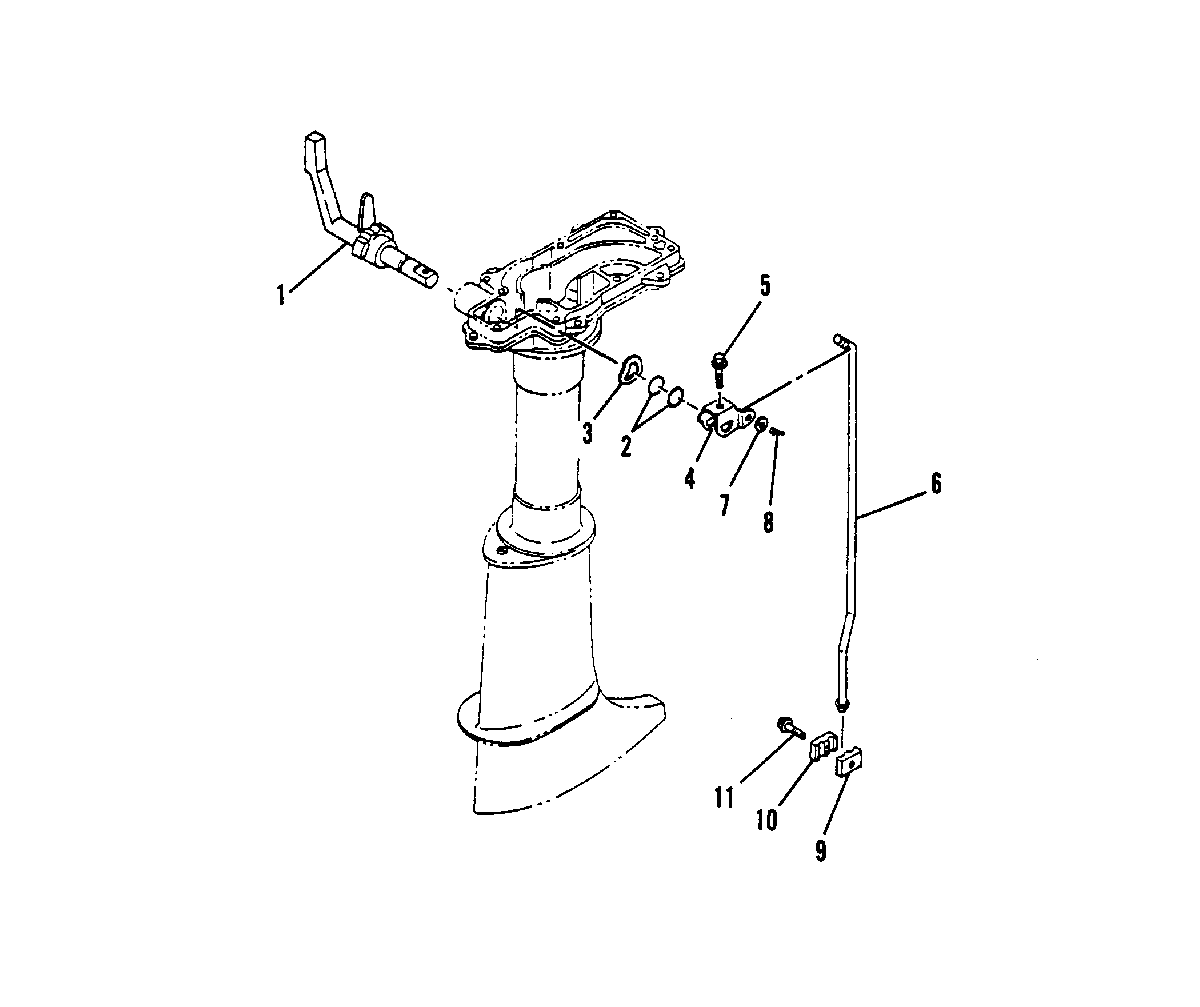

GEAR SHIFT LINKAGE для Mariner - 4A 6E0-300101 AND UP

  • №
    Артикул
    Название
  • 1
    91773M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 2
    25-91774M O-RING
    O-RING
  • 3
    13-91775M WASHER, WAVE
    WASHER, WAVE
  • 4
    91776M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 5
    10-11945M BOLT
    BOLT
  • 6
    91777M ROD, SHIFT (SHORT)
    ROD, SHIFT (SHORT)
  • 6
    91778M ROD, SHIFT (LONG)
    ROD, SHIFT (LONG)
  • 7
    12-82211M WASHER
    WASHER
  • 8
    18-82125M PIN, COTTER
    PIN, COTTER
  • 9
    98959M CONNECTOR, SHIFT ROD
    SERIAL (M-004021 ML-302046) AND ABOVE
    CONNECTOR, SHIFT ROD
    SERIAL (M-004021 ML-302046) AND ABOVE
  • 9
    80049M CONNECTOR, SHIFT ROD
    SERIAL (M-004020 ML-302045) AND BELOW
    CONNECTOR, SHIFT ROD
    SERIAL (M-004020 ML-302045) AND BELOW
  • 10
    98960M CONNECTOR SHIFT ROD
    SERIAL (M-004021 ML-302046) AND ABOVE
    CONNECTOR SHIFT ROD
    SERIAL (M-004021 ML-302046) AND ABOVE
  • 10
    80050M CONNECTOR, SHIFT ROD
    SERIAL (M-004020 ML-302045) AND BELOW
    CONNECTOR, SHIFT ROD
    SERIAL (M-004020 ML-302045) AND BELOW
  • 11
    10-91674M BOLT
    BOLT
