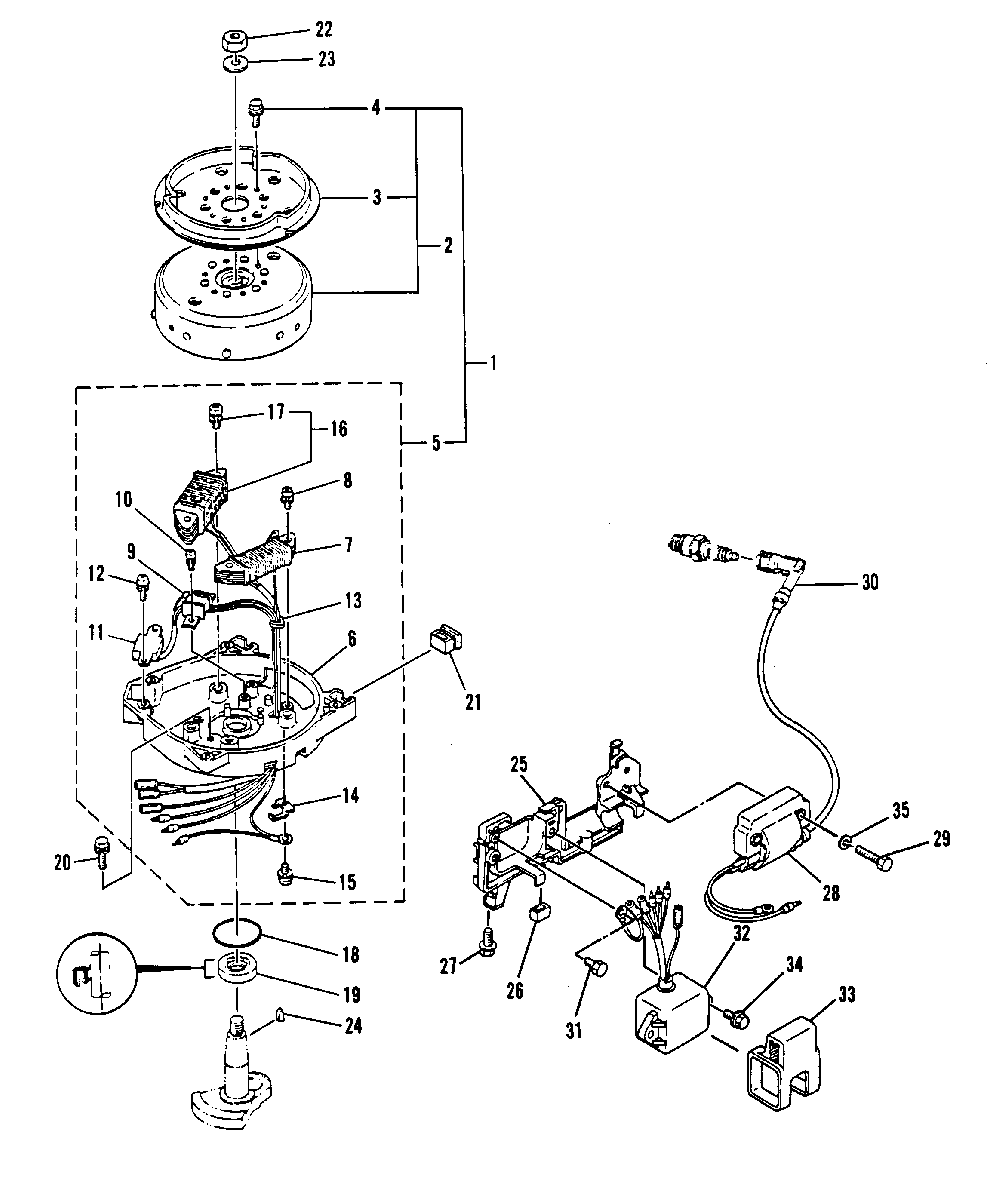

C.D.I. MAGNETO для Mariner - 4A 6E0-300101 AND UP

  • №
    Артикул
    Название
  • 1
    253-8252M C.D.I. MAGNETO ASS'Y
    SERIAL (M-103610 ML-335564) AND BELOW
    C.D.I. MAGNETO ASS'Y
    SERIAL (M-103610 ML-335564) AND BELOW
  • 2
    253-9775M FLYWHEEL ASS'Y
    SERIAL (M-093348 ML-332748) AND ABOVE
    FLYWHEEL ASS'Y
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 2
    253-8253M FLYWHEEL ASS'Y
    SERIAL (M-093347 ML-332747) AND BELOW
    FLYWHEEL ASS'Y
    SERIAL (M-093347 ML-332747) AND BELOW
  • 3
    50-91687M RATCHET,STARTER
    RATCHET,STARTER
  • 4
    10-91686M BOLT
    BOLT
  • 5
    95469M BASE ASS'Y
    BASE ASS'Y
  • 6
    91689M HOUSING, OIL SEAL
    HOUSING, OIL SEAL
  • 7
    91690T COIL ASS'Y
    COIL ASS'Y
  • 8
    10-91691M SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 9
    91692M PULSER COIL ASS'Y
    PULSER COIL ASS'Y
  • 10
    10-91693M SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 11
    91694M PULSER COIL ASS'Y
    PULSER COIL ASS'Y
  • 12
    10-91695M SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 13
    25-91696M GROMMET
    GROMMET
  • 14
    54-91698M CLAMP
    CLAMP
  • 15
    10-91699M SCREW, WITH WASHER
    SCREW, WITH WASHER
  • 16
    91697T LIGHTING COIL ASS'Y (60W) (OPT)
    LIGHTING COIL ASS'Y (60W) (OPT)
  • 17
    10-97803M SCREW, WITH WASHER (OPT)
    SCREW, WITH WASHER (OPT)
  • 18
    25-82276M O-RING
    O-RING
  • 19
    26-14195M OIL SEAL
    OIL SEAL
  • 20
    10-91686M BOLT
    SERIAL (M-055886 ML-321427) AND ABOVE
    BOLT
    SERIAL (M-055886 ML-321427) AND ABOVE
  • 20
    10-91681M BOLT
    SERIAL (M-055885 ML-321426) AND BELOW
    BOLT
    SERIAL (M-055885 ML-321426) AND BELOW
  • 21
    25-91702M GROMMET
    GROMMET
  • 22
    11-81769M NUT
    NUT
  • 23
    12-81805M WASHER
    WASHER
  • 24
    28-893761 KEY
    KEY
  • 25
    91703M BRACKET, IGNITION COIL
    BRACKET, IGNITION COIL
  • 26
    25-91704M GROMMET
    GROMMET
  • 27
    10-91686M BOLT
    BOLT
  • 28
    16635M IGNITION COIL ASS'Y
    IGNITION COIL ASS'Y
  • 29
    10-83285M BOLT
    BOLT
  • 30
    85-815119M PLUG CAP ASS'Y (STD-NOISE SUPPRESSOR)
    PLUG CAP ASS'Y (STD-NOISE SUPPRESSOR)
  • 30
    85-63709A1 PLUG CAP ASS'Y (OPT)
    PLUG CAP ASS'Y (OPT)
  • 30
    85-63709A1 PLUG CAP ASS'Y (HEAT PROOF)
    PLUG CAP ASS'Y (HEAT PROOF)
  • 31
    10-84088M BOLT
    BOLT
  • 32
    91707M C.D.I. UNIT ASS'Y
    C.D.I. UNIT ASS'Y
  • 33
    91708M HOLDER, WIRE HARNESS
    HOLDER, WIRE HARNESS
  • 34
    10-91674M BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
    BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 34
    10-91674M BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
    BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
  • 35
    12-82214M WASHER
    WASHER
  • 36
    27-99997M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
  • --
    27-91719M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
  • --
    27-17188M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
