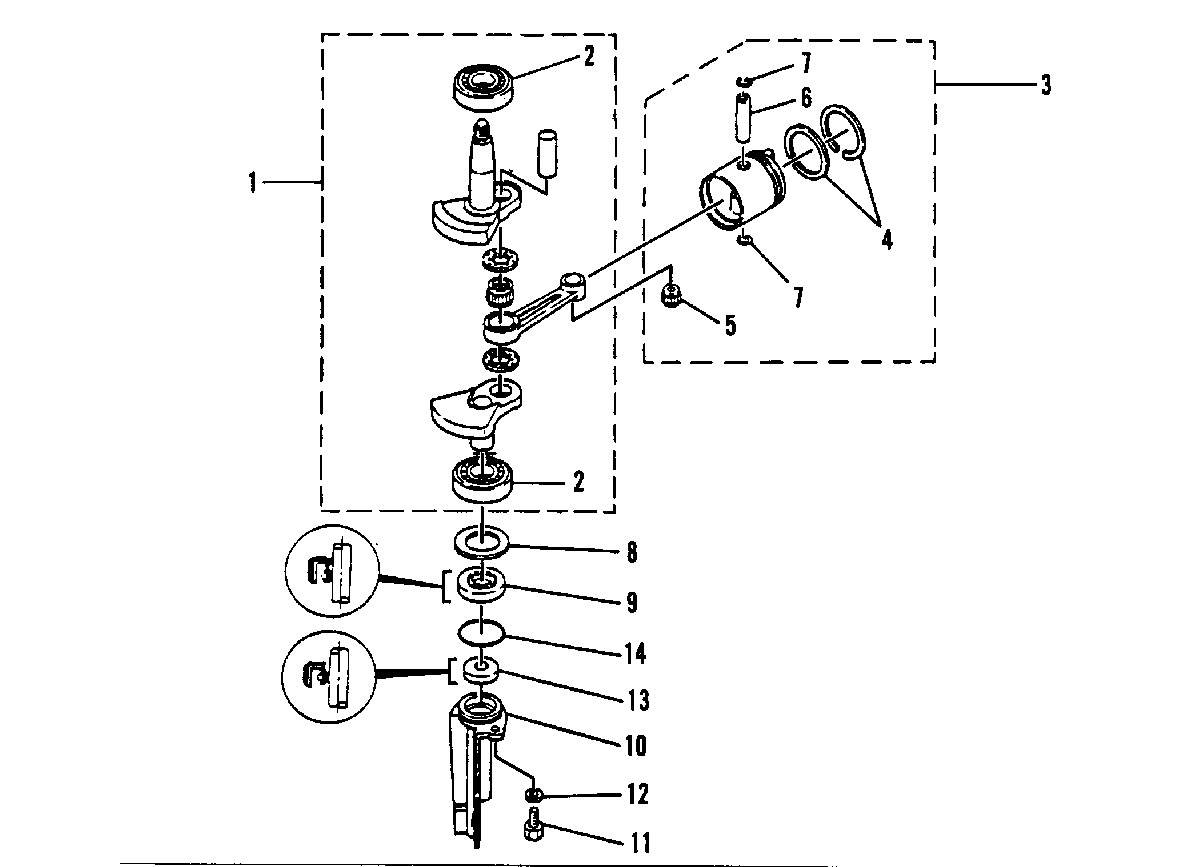

CRANKSHAFT AND PISTON для Mariner - 4A 6E0-300101 AND UP

  • №
    Артикул
    Название
  • 1
    463-8255M CRANKSHAFT ASS'Y
    CRANKSHAFT ASS'Y
  • 2
    30-18859T BEARING
    BEARING
  • 3
    761-8256M PISTON ASS'Y (STD)
    SERIAL (M-103610 ML-335564) AND BELOW
    PISTON ASS'Y (STD)
    SERIAL (M-103610 ML-335564) AND BELOW
  • 4
    39-11462T POSTON RING SET (STD)
    POSTON RING SET (STD)
  • 5
    31-91721M BEARING
    BEARING
  • 6
    41-80005M PIN
    SERIAL (M-005886 ML-321427) AND ABOVE
    PIN
    SERIAL (M-005886 ML-321427) AND ABOVE
  • 6
    41-80005M PIN
    SERIAL (M-055885 ML-321426) AND BELOW
    PIN
    SERIAL (M-055885 ML-321426) AND BELOW
  • 7
    53-82342M SNAP RING
    SNAP RING
  • 8
    15-83423M WASHER
    WASHER
  • 9
    26-18843M OIL SEAL
    SERIAL (M-093348 ML-332748) AND ABOVE
    OIL SEAL
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 9
    26-18843M OIL SEAL
    SERIAL (M-093347 ML-332747) AND BELOW
    OIL SEAL
    SERIAL (M-093347 ML-332747) AND BELOW
  • 10
    814455M HOUSING, OIL SEAL
    SERIAL (M-103611 ML-335565) AND ABOVE
    HOUSING, OIL SEAL
    SERIAL (M-103611 ML-335565) AND ABOVE
  • 10
    814455M HOUSING, OIL SEAL
    SERIAL (M-093348 THRU 103610 ML-332748 THRU 335564)
    HOUSING, OIL SEAL
    SERIAL (M-093348 THRU 103610 ML-332748 THRU 335564)
  • 10
    814455M HOUSING, OIL SEAL
    SERIAL (M-093347 ML-332747) AND BELOW
    HOUSING, OIL SEAL
    SERIAL (M-093347 ML-332747) AND BELOW
  • 11
    10-826957M BOLT
    BOLT
  • 12
    12-82214M WASHER
    WASHER
  • 13
    26-95472M OIL SEAL
    SERIAL (M-043239 ML-212355) AND ABOVE
    OIL SEAL
    SERIAL (M-043239 ML-212355) AND ABOVE
  • 13
    26-91726M OIL SEAL
    SERIAL (M-043238 ML-212354) AND BELOW
    OIL SEAL
    SERIAL (M-043238 ML-212354) AND BELOW
  • 14
    25-91727M O-RING
    O-RING
  • --
    27-99997M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
  • --
    27-91719M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
  • --
    27-14188M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
