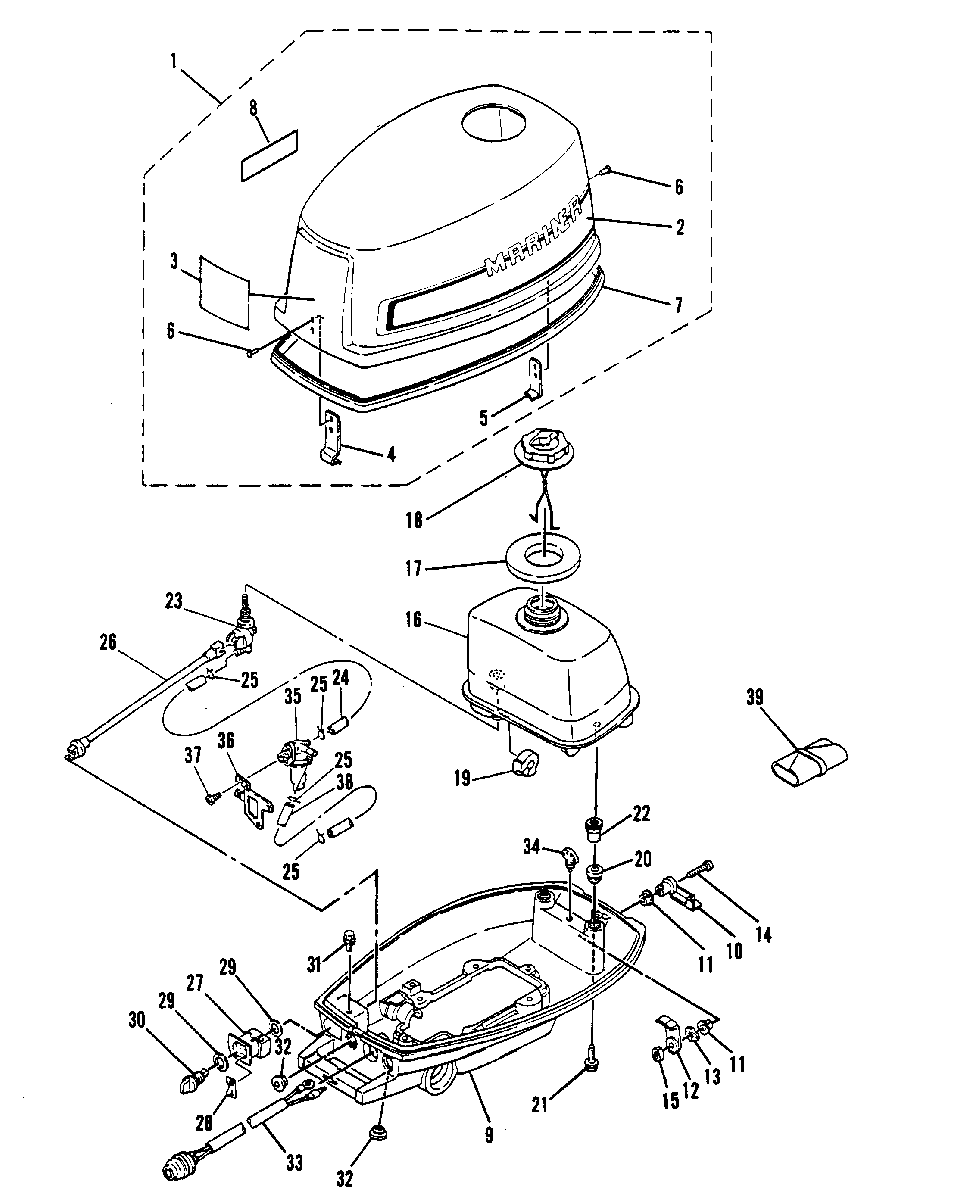

COWLING для Mariner - 4A 6E0-300101 AND UP

  • №
    Артикул
    Название
  • 1
    2168-9339M TOP COWLING ASS'Y
    TOP COWLING ASS'Y
  • 2
    37-810932A90 DECAL, SIDE SET
    SERIAL (M-114253 ML-338166) AND ABOVE
    DECAL, SIDE SET
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 2
    37-11913M DECAL, SIDE SET
    SERIAL (M-114252 ML-338165) AND BELOW
    DECAL, SIDE SET
    SERIAL (M-114252 ML-338165) AND BELOW
  • 3
    N.S.S. DECAL, FRONT (PART OF 37-810932A90)
    SERIAL (M-114253 ML-338166) AND ABOVE
    DECAL, FRONT (PART OF 37-810932A90)
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 3
    37-11914M DECAL, FRONT
    SERIAL (M-114252 ML-338165) AND BELOW
    DECAL, FRONT
    SERIAL (M-114252 ML-338165) AND BELOW
  • 4
    814454M HOOK
    SERIAL (M-103611 ML-335565) AND ABOVE
    HOOK
    SERIAL (M-103611 ML-335565) AND ABOVE
  • 4
    814454M HOOK
    SERIAL (M-103610 ML-335564) AND BELOW
    HOOK
    SERIAL (M-103610 ML-335564) AND BELOW
  • 5
    98957M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 6
    17-83140M RIVET
    RIVET
  • 7
    91658M SEAL
    SEAL
  • 8
    37-81202M INDICATOR, SHIFT
    SERIAL (M-070824 ML-325784) AND ABOVE
    INDICATOR, SHIFT
    SERIAL (M-070824 ML-325784) AND ABOVE
  • 9
    2168-9790M COWLING, BOTTOM
    SERIAL (M-093348 ML-332748) AND ABOVE
    COWLING, BOTTOM
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 9
    2168-9790M COWLING, BOTTOM
    SERIAL (M-093347 ML-332747) AND BELOW
    COWLING, BOTTOM
    SERIAL (M-093347 ML-332747) AND BELOW
  • 10
    91659M LEVER, CLAMP
    LEVER, CLAMP
  • 11
    23-81949M BUSHING
    BUSHING
  • 12
    91660M LEVER, CLAMP
    LEVER, CLAMP
  • 13
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 14
    10-8527876 SCREW
    SERIAL (M-114253 ML-338166) AND ABOVE
    SCREW
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 14
    10-8527876 SCREW
    SERIAL (M-114252 ML-338165) AND BELOW
    SCREW
    SERIAL (M-114252 ML-338165) AND BELOW
  • 15
    11-82390M NUT
    NUT
  • 16
    1252-8249M FUEL TANK
    FUEL TANK
  • 17
    27-91662M GASKET, CAP
    GASKET, CAP
  • 18
    36-91663T CAP ASS'Y
    CAP ASS'Y
  • 19
    25-91664M GROMMET
    GROMMET
  • 20
    25-91665M GROMMET
    GROMMET
  • 21
    10-11945M BOLT
    BOLT
  • 22
    23-95466M COLLAR
    SERIAL (M-043239 ML-212355) AND ABOVE
    COLLAR
    SERIAL (M-043239 ML-212355) AND ABOVE
  • 22
    23-804344003 COLLAR
    SERIAL (M-043238 ML-212354) AND BELOW
    COLLAR
    SERIAL (M-043238 ML-212354) AND BELOW
  • 23
    35-91667T FUEL COCK ASS'Y
    FUEL COCK ASS'Y
  • 24
    32-82012M HOSE
    SERIAL (M-082241 ML-329127) AND ABOVE
    HOSE
    SERIAL (M-082241 ML-329127) AND ABOVE
  • 24
    32-82012M HOSE
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
    HOSE
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
  • 24
    32-82012M HOSE
    SERIAL (M-055885 ML-321426) AND BELOW
    HOSE
    SERIAL (M-055885 ML-321426) AND BELOW
  • 25
    54-82047M CLAMP
    CLAMP
  • 26
    91669M SHAFT, FUEL SHUT OFF
    SHAFT, FUEL SHUT OFF
  • 27
    23-91670M BUSHING
    BUSHING
  • 28
    37-91671M GRAPHIC, FUEL SHUT OFF
    GRAPHIC, FUEL SHUT OFF
  • 29
    12-91672M WASHER
    WASHER
  • 30
    41249M LEVER, FUEL SHUT OFF
    LEVER, FUEL SHUT OFF
  • 31
    10-91674M BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
    BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 31
    10-91674M BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
    BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
  • 32
    25-91675M GROMMET
    GROMMET
  • 33
    87-93102M STOP SWITCH ASS'Y
    STOP SWITCH ASS'Y
  • 34
    80033M HOLDER,PIN
    HOLDER,PIN
  • 35
    35-11916M FUEL FILTER ASS'Y
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
    FUEL FILTER ASS'Y
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
  • 36
    11917M BRACKET, FUEL FILTER
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
    BRACKET, FUEL FILTER
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
  • 37
    10-83509M SCREW
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
    SCREW
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
  • 38
    32-82012M HOSE
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
    HOSE
    SERIAL (M-055886 THRU 082240 ML-321427 THRU 329126)
  • 39
    91-803581 TOOL KIT
    TOOL KIT
