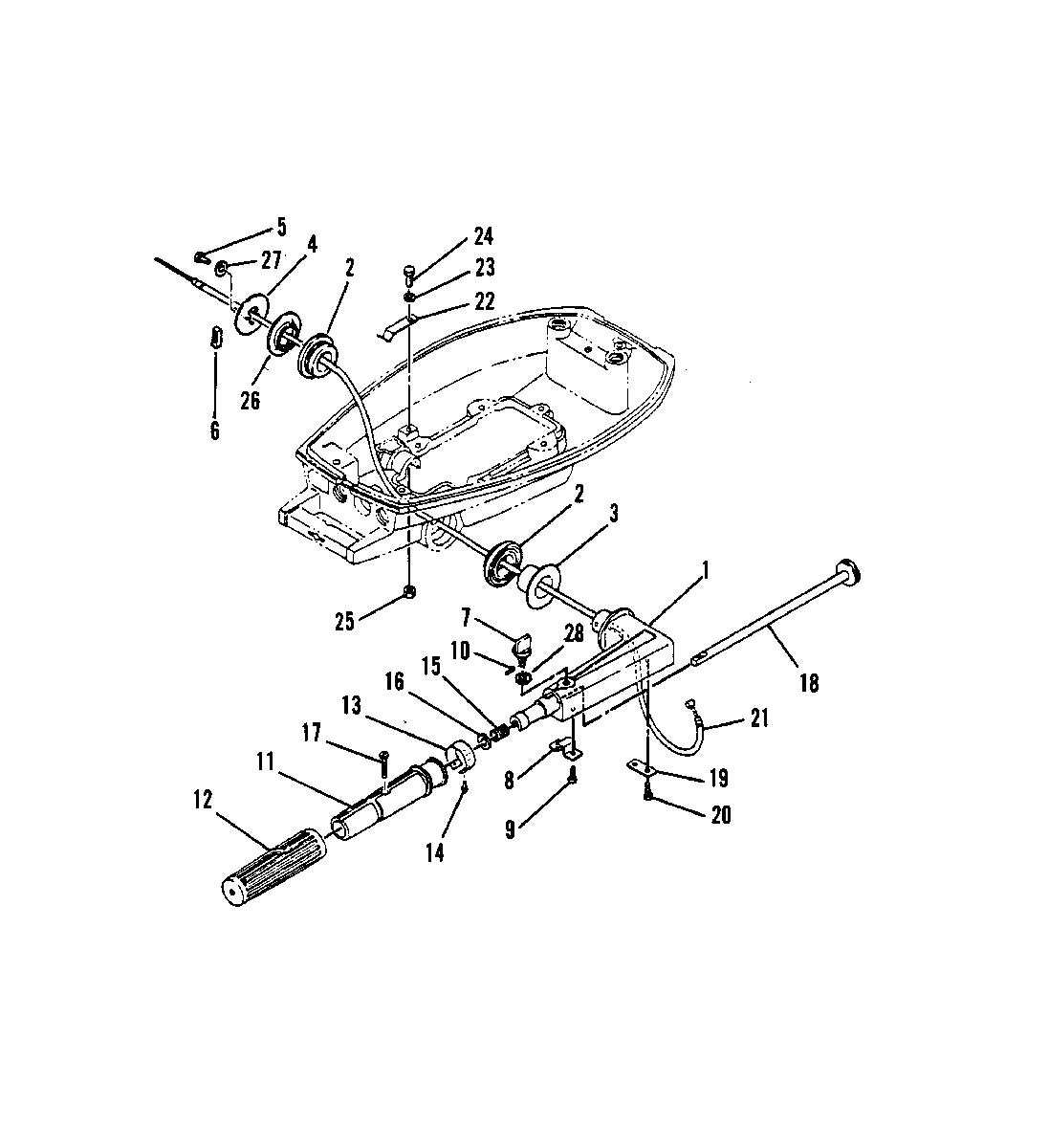

THROTTLE CONTROL для Mariner - 4A 6E0-001011 AND UP

  • №
    Артикул
    Название
  • 1
    91756M HANDLE, STEERING
    HANDLE, STEERING
  • 2
    23-17657M BUSHING, RUBBER
    BUSHING, RUBBER
  • 3
    23-91758M BUSHING
    BUSHING
  • 4
    18845M COVER, STEERING HANDLE
    SERIAL (M-093348 ML-332748) AND ABOVE
    COVER, STEERING HANDLE
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 4
    43112M COVER, STEERING HANDLE
    SERIAL (M-093347 ML-332747) AND BELOW
    COVER, STEERING HANDLE
    SERIAL (M-093347 ML-332747) AND BELOW
  • 5
    10-82419M BOLT
    SERIAL (M-070824 ML-325784) AND ABOVE
    BOLT
    SERIAL (M-070824 ML-325784) AND ABOVE
  • 5
    10-95473M BOLT
    SERIAL (M-043239-070823 ML-212355 THRU 325783)
    BOLT
    SERIAL (M-043239-070823 ML-212355 THRU 325783)
  • 5
    10-82417M BOLT
    SERIAL (M-043238 ML-212354) AND BELOW
    BOLT
    SERIAL (M-043238 ML-212354) AND BELOW
  • 6
    23-91760M BUSHING, RUBBER
    SERIAL (M-043238 ML-212354) AND BELOW
    BUSHING, RUBBER
    SERIAL (M-043238 ML-212354) AND BELOW
  • 7
    10-91761M BOLT, FRICTION ADJUSTING
    BOLT, FRICTION ADJUSTING
  • 8
    18846M COVER
    SERIAL (M-093348 ML-332748) AND ABOVE
    COVER
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 8
    18846M COVER
    SERIAL (M-093347 ML-332747) AND BELOW
    COVER
    SERIAL (M-093347 ML-332747) AND BELOW
  • 9
    10-14232M SCREW
    SCREW
  • 10
    18-16189 PIN
    PIN
  • 11
    91764M HANDLE
    HANDLE
  • 12
    91765M GRIP, HANDLE
    GRIP, HANDLE
  • 13
    16632M INDICATOR, THROTTLE
    SERIAL (M-082241 ML-329127) AND ABOVE
    INDICATOR, THROTTLE
    SERIAL (M-082241 ML-329127) AND ABOVE
  • 13
    16632M INDICATOR, THROTTLE
    SERIAL (M-082240 ML-329126) AND BELOW
    INDICATOR, THROTTLE
    SERIAL (M-082240 ML-329126) AND BELOW
  • 14
    17-81907M RIVET
    RIVET
  • 15
    24-82095M SPRING
    SPRING
  • 16
    12-91767M WASHER
    WASHER
  • 17
    10-811916M SCREW
    SERIAL (M-093348 ML-332748) AND ABOVE
    SCREW
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 17
    10-811916M SCREW
    SERIAL (M-093347 ML-332747) AND BELOW
    SCREW
    SERIAL (M-093347 ML-332747) AND BELOW
  • 18
    41252M SHAFT
    SHAFT
  • 19
    18848M PLATE
    SERIAL (M-093348 ML-332748) AND ABOVE
    PLATE
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 19
    18848M PLATE
    SERIAL (M-093347 ML-332747) AND BELOW
    PLATE
    SERIAL (M-093347 ML-332747) AND BELOW
  • 20
    10-14232M SCREW
    SCREW
  • 21
    11921M THROTTLE WIRE ASS'Y
    THROTTLE WIRE ASS'Y
  • 22
    24-91771M SPRING
    SPRING
  • 23
    12-82214M WASHER
    WASHER
  • 24
    10-91772M BOLT
    BOLT
  • 25
    11-82390M NUT
    NUT
  • 26
    23-96558M BUSHING
    SERIAL (M-013401 ML-306026) AND ABOVE
    BUSHING
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 27
    12-82211M WASHER
    SERIAL (M-013401 ML-306026) AND ABOVE
    WASHER
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 28
    12-41290M WASHER
    SERIAL (M-013401 ML-306026) AND ABOVE
    WASHER
    SERIAL (M-013401 ML-306026) AND ABOVE
