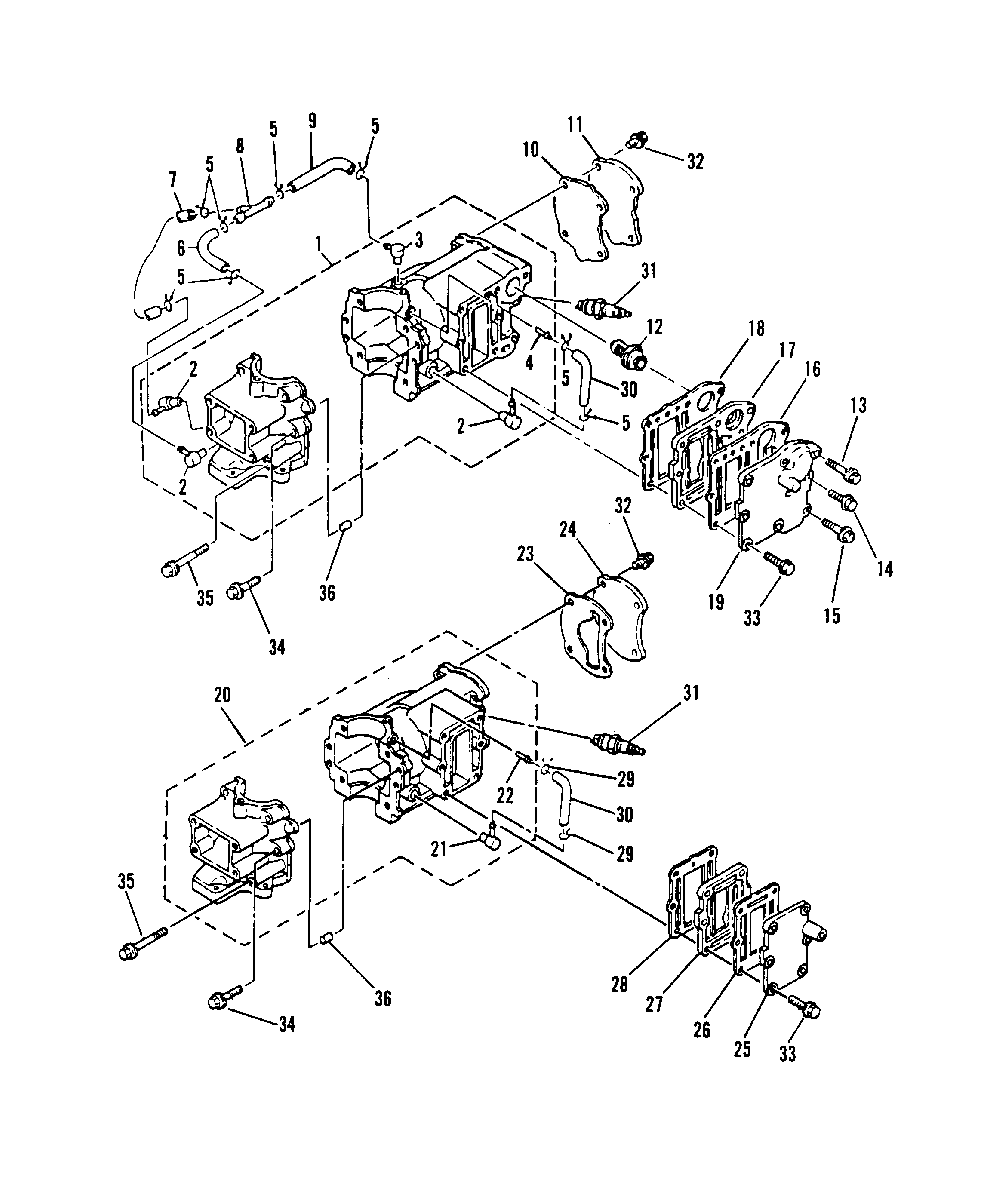

CRANKCASE AND CYLINDER HEAD для Mariner - 4A 6E0-001011 AND UP

  • №
    Артикул
    Название
  • 1
    968-8805M CRANKCASE ASS'Y
    SERIAL (M-013401 ML-306026) AND ABOVE
    CRANKCASE ASS'Y
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 2
    21-80727M CHECK VALVE ASS'Y
    SERIAL (M-013401 ML-306026) AND ABOVE
    CHECK VALVE ASS'Y
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 3
    22-99988M NIPPLE, HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
    NIPPLE, HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 4
    22-80122M FITTING
    SERIAL (M-013401 ML-306026) AND ABOVE
    FITTING
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 5
    54-82046M CLAMP
    SERIAL (M-013401 ML-306026) AND ABOVE
    CLAMP
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 6
    32-811045M HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
    HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 7
    32-811045M HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
    HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 8
    22-99989M FITTING
    SERIAL (M-013401 ML-306026) AND ABOVE
    FITTING
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 9
    32-811045M HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
    HOSE
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 10
    27-99991M GASKET, HEAD COVER
    SERIAL (M-013401 ML-306026) AND ABOVE
    GASKET, HEAD COVER
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 11
    99992M COVER, CYLINDER HEAD
    SERIAL (M-013401 ML-306026) AND ABOVE
    COVER, CYLINDER HEAD
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 12
    11919001 THERMOSTAT
    SERIAL (M-055886 ML-321427) AND ABOVE
    THERMOSTAT
    SERIAL (M-055886 ML-321427) AND ABOVE
  • 12
    83282M THERMOSTAT
    SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)
    THERMOSTAT
    SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)
  • 13
    10-11945M BOLT
    SERIAL (M-082241 ML-329127) AND ABOVE
    BOLT
    SERIAL (M-082241 ML-329127) AND ABOVE
  • 13
    10-11945M BOLT
    SERIAL (M-013401 THRU 082240 ML-306026 THRU 329126)
    BOLT
    SERIAL (M-013401 THRU 082240 ML-306026 THRU 329126)
  • 14
    10-91681M BOLT
    SERIAL (M-013401 ML-306026) AND ABOVE
    BOLT
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 15
    10-91686M BOLT
    SERIAL (M-013401 ML-306026) AND ABOVE
    BOLT
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 16
    27-99993M GASKET, OUTER COVER
    SERIAL (M-013401 ML-306026) AND ABOVE
    GASKET, OUTER COVER
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 17
    99994M INNER COVER, EXHAUST
    SERIAL (M-013401 ML-306026) AND ABOVE
    INNER COVER, EXHAUST
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 18
    27-99995M GASKET, INNER COVER
    SERIAL (M-013401 ML-306026) AND ABOVE
    GASKET, INNER COVER
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 19
    11920M OUTER COVER, EXHAUST
    SERIAL (M-013401 ML-306026) AND ABOVE
    OUTER COVER, EXHAUST
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 19
    91713M OUTER COVER, EXHAUST
    SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)
    OUTER COVER, EXHAUST
    SERIAL (M-013401 THRU 055885 ML-306026 THRU 321426)
  • 20
    968-8254M CRANKCASE ASS'Y
    SERIAL (M-013400 ML-306025) AND BELOW
    CRANKCASE ASS'Y
    SERIAL (M-013400 ML-306025) AND BELOW
  • 21
    21-80727M CHECK VALVE ASS'Y
    SERIAL (M-013400 ML-306025) AND BELOW
    CHECK VALVE ASS'Y
    SERIAL (M-013400 ML-306025) AND BELOW
  • 22
    22-80122M FITTING
    SERIAL (M-013400 ML-306025) AND BELOW
    FITTING
    SERIAL (M-013400 ML-306025) AND BELOW
  • 23
    27-91717M GASKET, HEAD COVER
    SERIAL (M-013400 ML-306025) AND BELOW
    GASKET, HEAD COVER
    SERIAL (M-013400 ML-306025) AND BELOW
  • 24
    99992M COVER, CYLINDER HEAD
    SERIAL (M-013400 ML-306025) AND BELOW
    COVER, CYLINDER HEAD
    SERIAL (M-013400 ML-306025) AND BELOW
  • 25
    91713M OUTER COVER, EXHAUST
    SERIAL (M-013400 ML-306025) AND BELOW
    OUTER COVER, EXHAUST
    SERIAL (M-013400 ML-306025) AND BELOW
  • 26
    27-91714M GASKET, OUTER COVER
    SERIAL (M-013400 ML-306025) AND BELOW
    GASKET, OUTER COVER
    SERIAL (M-013400 ML-306025) AND BELOW
  • 27
    91711M INNER COVER, EXHAUST
    SERIAL (M-013400 ML-306025) AND BELOW
    INNER COVER, EXHAUST
    SERIAL (M-013400 ML-306025) AND BELOW
  • 28
    27-91712M GASKET, INNER COVER
    SERIAL (M-013400 ML-306025) AND BELOW
    GASKET, INNER COVER
    SERIAL (M-013400 ML-306025) AND BELOW
  • 29
    54-82046M CLAMP
    SERIAL (M-013400 ML-306025) AND BELOW
    CLAMP
    SERIAL (M-013400 ML-306025) AND BELOW
  • 30
    32-811045M HOSE
    SERIAL (M-013400 ML-306025) AND BELOW
    HOSE
    SERIAL (M-013400 ML-306025) AND BELOW
  • 31
    33-8M0114739 SPARK PLUG
    STANDARD PART
    SPARK PLUG
    STANDARD PART
  • 32
    10-91686M BOLT
    STANDARD PART
    BOLT
    STANDARD PART
  • 33
    10-11945M BOLT
    STANDARD PART SERIAL (M-082241 ML-329127) AND ABOVE
    BOLT
    STANDARD PART SERIAL (M-082241 ML-329127) AND ABOVE
  • 33
    10-11945M BOLT
    STANDARD PART SERIAL (M-082240 ML-329126) AND BELOW
    BOLT
    STANDARD PART SERIAL (M-082240 ML-329126) AND BELOW
  • 34
    10-91681M BOLT
    STANDARD PART
    BOLT
    STANDARD PART
  • 35
    10-91710M BOLT
    STANDARD PART
    BOLT
    STANDARD PART
  • 36
    17-82354M PIN
    STANDARD PART SERIAL (M-093348 ML-332748) AND ABOVE
    PIN
    STANDARD PART SERIAL (M-093348 ML-332748) AND ABOVE
  • 36
    17-82364M PIN
    STANDARD PART SERIAL (M-093347 ML-332747) AND BELOW
    PIN
    STANDARD PART SERIAL (M-093347 ML-332747) AND BELOW
  • 36
    18842M POWERHEAD ASS'Y, COMPLETE
    REPLACEMENT PART SERIAL (M-093348 ML-332748) AND ABOVE
    POWERHEAD ASS'Y, COMPLETE
    REPLACEMENT PART SERIAL (M-093348 ML-332748) AND ABOVE
  • 36
    18842M POWERHEAD ASS'Y, COMPLETE
    REPLACEMENT PART SERIAL (M-093347 ML-332747) AND BELOW
    POWERHEAD ASS'Y, COMPLETE
    REPLACEMENT PART SERIAL (M-093347 ML-332747) AND BELOW
  • 36
    27-14188M GASKET SET, POWERHEAD
    REPLACEMENT PART SERIAL (M-070824 ML-325784) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 13.
    GASKET SET, POWERHEAD
    REPLACEMENT PART SERIAL (M-070824 ML-325784) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 13.
  • 36
    27-99997M GASKET SET, POWERHEAD
    REPLACEMENT PART SERIAL (M-013401 THRU 070823 ML-306026 THRU 325783). CONTENTS INDICATED BY FOOTNOTE 11.
    GASKET SET, POWERHEAD
    REPLACEMENT PART SERIAL (M-013401 THRU 070823 ML-306026 THRU 325783). CONTENTS INDICATED BY FOOTNOTE 11.
  • 36
    27-91719M GASKET SET, POWERHEAD
    REPLACEMENT PART SERIAL (M-0013400 ML-306025) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 12.
    GASKET SET, POWERHEAD
    REPLACEMENT PART SERIAL (M-0013400 ML-306025) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 12.
