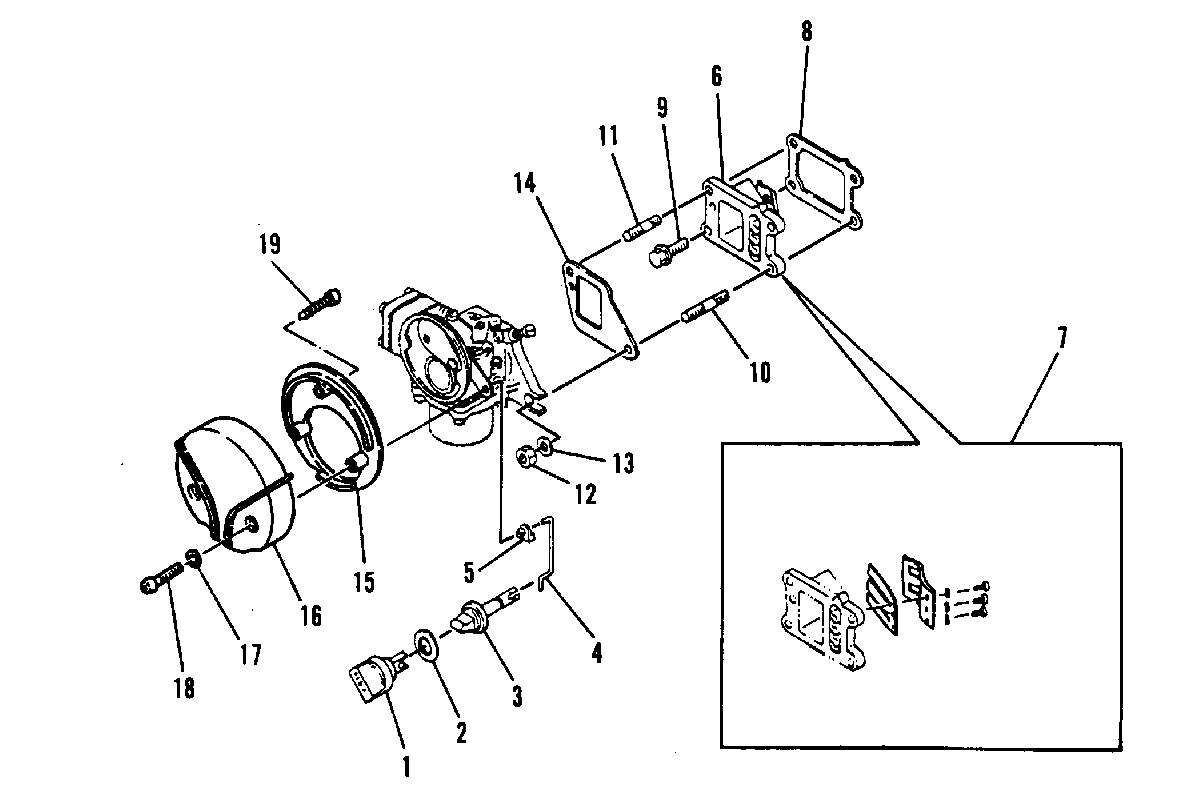

INTAKE MANIFOLD для Mariner - 4A 6E0-001011 AND UP

  • №
    Артикул
    Название
  • 1
    91728M KNOB, CHOKE
    KNOB, CHOKE
  • 2
    12-91729M WASHER
    WASHER
  • 3
    91730M KNOB, CHOKE
    KNOB, CHOKE
  • 4
    91731M ROD, CHOKE LINK
    ROD, CHOKE LINK
  • 5
    16333 RETAINER, CHOKE LEVER
    RETAINER, CHOKE LEVER
  • 6
    91732M REED VALVE ASS'Y
    REED VALVE ASS'Y
  • 7
    34-91733M REED SET
    REED SET
  • 8
    27-91734M GASKET, VALVE SEAT
    GASKET, VALVE SEAT
  • 9
    10-91686M BOLT
    BOLT
  • 10
    16-80232M STUD
    STUD
  • 11
    16-91735M STUD
    STUD
  • 12
    11-82390M NUT
    SERIAL (M-114253 ML-338166) AND ABOVE
    NUT
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 12
    11-82390M NUT
    SERIAL (M-114252 ML-338165) AND BELOW
    NUT
    SERIAL (M-114252 ML-338165) AND BELOW
  • 13
    12-82214M WASHER
    WASHER
  • 14
    27-91736 GASKET
    GASKET
  • 15
    96553M COVER
    COVER
  • 16
    96554M COVER
    COVER
  • 17
    12-82211M WASHER
    WASHER
  • 18
    10-83108M SCREW
    SERIAL (M-114253 ML-338166) AND ABOVE
    SCREW
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 18
    10-83108M SCREW
    SERIAL (M-114252 ML-338165) AND BELOW
    SCREW
    SERIAL (M-114252 ML-338165) AND BELOW
  • 19
    10-96555M SCREW
    SCREW
  • --
    27-99997M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 11.
  • --
    27-91719M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 12.
  • --
    27-14188M POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
    POWERHEAD GASKET SET
    CONTENTS INDICATED BY FOOTNOTE 13.
  • --
    14184T CARBURETOR REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 14.
    CARBURETOR REPAIR KIT
    CONTENTS INDICATED BY FOOTNOTE 14.
