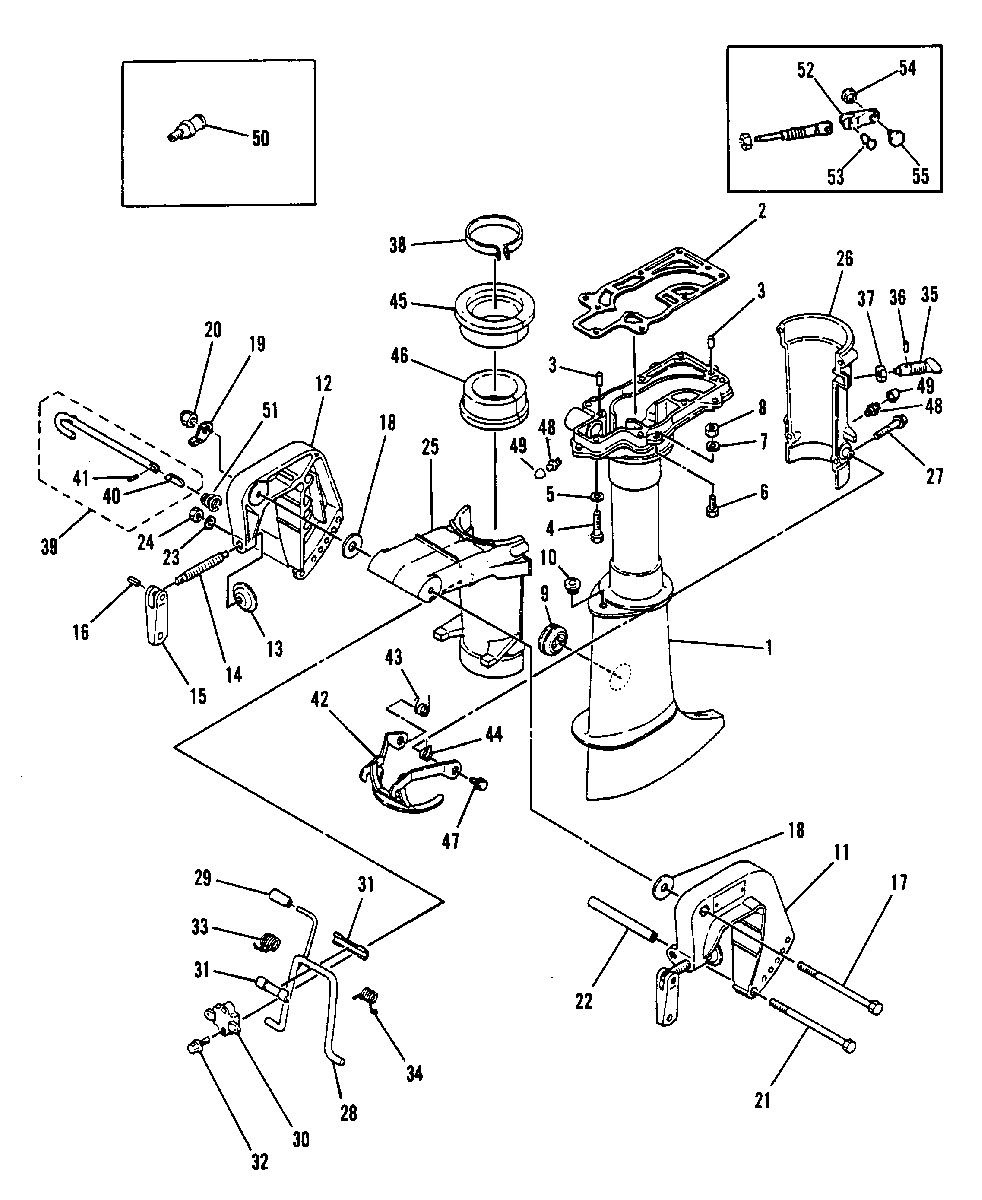

DRIVESHAFT HOUSING/CLAMP AND SWIVEL BRACKET для Mariner - 4A 6E0-001011 AND UP

  • №
    Артикул
    Название
  • 1
    1587-9777M DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-093348 ML-332748) AND ABOVE
    DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 1
    1587-9213M DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-043239 THRU 093347 ML-212355 THRU 332747)
    DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-043239 THRU 093347 ML-212355 THRU 332747)
  • 1
    1587-8347M DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-043238 ML-212354) AND BELOW
    DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-043238 ML-212354) AND BELOW
  • 1
    1587-9777M DRIVESHAFT HOUSING (LONG)
    SERIAL (M-093348 ML-332748) AND ABOVE
    DRIVESHAFT HOUSING (LONG)
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 1
    1587-9214M DRIVESHAFT HOUSING (LONG)
    SERIAL (M-043239 THRU 093347 ML-212355 THRU 332747)
    DRIVESHAFT HOUSING (LONG)
    SERIAL (M-043239 THRU 093347 ML-212355 THRU 332747)
  • 1
    1587-8348M DRIVESHAFT HOUSING (LONG)
    SERIAL (M-043238 ML-212354) AND BELOW
    DRIVESHAFT HOUSING (LONG)
    SERIAL (M-043238 ML-212354) AND BELOW
  • 2
    27-91780 GASKET
    GASKET
  • 3
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 4
    10-83285M BOLT
    BOLT
  • 5
    12-82214M WASHER
    WASHER
  • 6
    10-826957M BOLT
    BOLT
  • 7
    12-82214M WASHER
    WASHER
  • 8
    11-82390M NUT
    NUT
  • 9
    80533M COVER, DRIVESHAFT HOUSING
    COVER, DRIVESHAFT HOUSING
  • 10
    25-91782M GROMMET
    GROMMET
  • 11
    1484-9778M BRACKET, CLAMP (PORT)
    SERIAL (M-093348 ML-332748) AND ABOVE
    BRACKET, CLAMP (PORT)
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 11
    1484-8349M BRACKET, CLAMP (PORT)
    SERIAL (M-093347 ML-332747) AND BELOW
    BRACKET, CLAMP (PORT)
    SERIAL (M-093347 ML-332747) AND BELOW
  • 12
    1484-9779M BRACKET, CLAMP (STARBOARD)
    SERIAL (M-093348 ML-332748) AND ABOVE
    BRACKET, CLAMP (STARBOARD)
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 12
    1484-8350M BRACKET, CLAMP (STARBOARD)
    SERIAL (M-093347 ML-332747) AND BELOW
    BRACKET, CLAMP (STARBOARD)
    SERIAL (M-093347 ML-332747) AND BELOW
  • 13
    12-80638M PAD, TRANSOM CLAMP
    PAD, TRANSOM CLAMP
  • 14
    10-91783M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 15
    91784M HANDLE, TRANSOM CLAMP
    HANDLE, TRANSOM CLAMP
  • 16
    17-852812 PIN
    PIN
  • 17
    10-18849M BOLT
    SERIAL (M-093348 ML-332748) AND ABOVE
    BOLT
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 17
    10-98961M BOLT
    SERIAL (M-093347 ML-332747) AND BELOW
    BOLT
    SERIAL (M-093347 ML-332747) AND BELOW
  • 18
    12-18850M WASHER
    WASHER
  • 19
    18840M PLATE, CLAMP BRACKET
    SERIAL (M-093348 ML-332748) AND ABOVE
    PLATE, CLAMP BRACKET
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 19
    12-82217M WASHER
    SERIAL (M-093347 ML-332747) AND BELOW
    WASHER
    SERIAL (M-093347 ML-332747) AND BELOW
  • 20
    11-84295M NUT
    NUT
  • 21
    10-82858M BOLT
    BOLT
  • 22
    23-82116M SPACER
    SPACER
  • 23
    12-82214M WASHER
    WASHER
  • 24
    11-82389M NUT
    NUT
  • 25
    1485-811997M BRACKET, SWIVEL
    SERIAL (M-114253 ML-338166) AND ABOVE
    BRACKET, SWIVEL
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 25
    1485-9705M BRACKET, SWIVEL
    SERIAL (M-114252 ML-338165) AND BELOW
    BRACKET, SWIVEL
    SERIAL (M-114252 ML-338165) AND BELOW
  • 26
    1485-9342M BRACKET, SWIVEL
    SERIAL (M-055886 ML-321427) AND ABOVE
    BRACKET, SWIVEL
    SERIAL (M-055886 ML-321427) AND ABOVE
  • 26
    1485-9216M BRACKET, SWIVEL
    SERIAL (M-055885 ML-321426) AND BELOW
    BRACKET, SWIVEL
    SERIAL (M-055885 ML-321426) AND BELOW
  • 27
    10-91788M BOLT
    BOLT
  • 28
    91789M LEVER, TILT STOP
    LEVER, TILT STOP
  • 29
    91790M KNOB, TILT
    KNOB, TILT
  • 30
    91791M BRACKET, SWIVEL
    BRACKET, SWIVEL
  • 31
    23-80097M BUSING
    BUSING
  • 32
    10-91674M BOLT
    BOLT
  • 33
    24-82110M SPRING
    SPRING
  • 34
    24-82111M SPRING
    SPRING
  • 35
    10-810947M SCREW, FRICTION PIECE
    SERIAL (M-114253 ML-338166) AND ABOVE
    SCREW, FRICTION PIECE
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 35
    10-17496M SCREW, FRICTION PIECE
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
    SCREW, FRICTION PIECE
    SERIAL (M-093348 THRU 114252 ML-332748 THRU 338165)
  • 35
    10-98962M SCREW, FRICTION PIECE
    SERIAL (M-093347 ML-332747) AND BELOW
    SCREW, FRICTION PIECE
    SERIAL (M-093347 ML-332747) AND BELOW
  • 36
    17-91793M PIN
    SERIAL (M-093347 ML-332747) AND BELOW
    PIN
    SERIAL (M-093347 ML-332747) AND BELOW
  • 37
    11-82382M NUT
    NUT
  • 38
    17497M PIECE, FRICTION
    PIECE, FRICTION
  • 39
    17-91795M TILT ROD ASS'Y
    TILT ROD ASS'Y
  • 40
    82857M STOPPER PLATE
    STOPPER PLATE
  • 41
    17-82144M PIN
    PIN
  • 42
    91796M PLATE, TILT LOCK
    PLATE, TILT LOCK
  • 43
    24-91797M SPRING
    SPRING
  • 44
    24-91798M SPRING
    SPRING
  • 45
    23-41258M BUSHING, PIVOT SHAFT
    BUSHING, PIVOT SHAFT
  • 46
    23-41821M BUSHING, PIVOT SHAFT
    BUSHING, PIVOT SHAFT
  • 47
    10-96292M BOLT
    BOLT
  • 48
    22-82369M FITTING, GREASE
    SERIAL (M-055886 ML-321427) AND ABOVE
    FITTING, GREASE
    SERIAL (M-055886 ML-321427) AND ABOVE
  • 49
    81439M CAP, GREASE FITTING
    SERIAL (M-055886 THRU 103610 ML-341427 THRU 335564)
    CAP, GREASE FITTING
    SERIAL (M-055886 THRU 103610 ML-341427 THRU 335564)
  • 50
    22-8M0121335 PLUG, WATER CHECK (OPT)
    SERIAL (M-055886 ML-341427) AND ABOVE
    PLUG, WATER CHECK (OPT)
    SERIAL (M-055886 ML-341427) AND ABOVE
  • 50
    22-8M0121335 PLUG, WATER CHECK (OPT)
    SERIAL (M-055885 ML-321426) AND BELOW
    PLUG, WATER CHECK (OPT)
    SERIAL (M-055885 ML-321426) AND BELOW
  • 51
    24-814456M SPRING, CONICAL
    SERIAL (M-103611 ML-335565) AND ABOVE
    SPRING, CONICAL
    SERIAL (M-103611 ML-335565) AND ABOVE
  • 52
    810948M KNOB
    SERIAL (M-114253 ML-338166) AND ABOVE
    KNOB
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 53
    17-810951M RIVET
    SERIAL (M-114253 ML-338166) AND ABOVE
    RIVET
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 54
    810949M INDICATOR
    SERIAL (M-114253 ML-338166) AND ABOVE
    INDICATOR
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 55
    810950M INDICATOR
    SERIAL (M-114253 ML-338166) AND ABOVE
    INDICATOR
    SERIAL (M-114253 ML-338166) AND ABOVE
