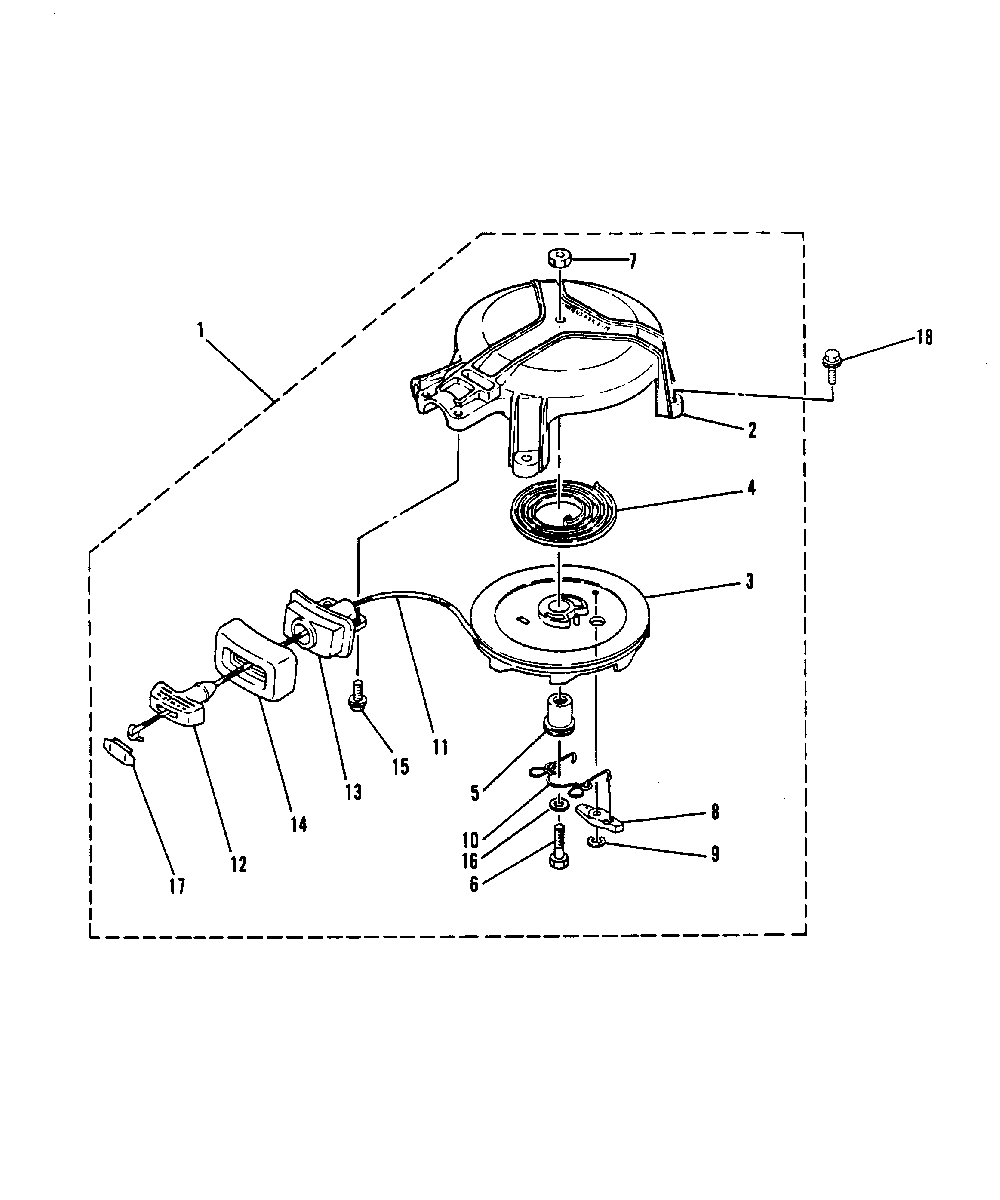

RECOIL STARTER для Mariner - 4A 6E0-001011 AND UP

  • №
    Артикул
    Название
  • 1
    2169-9774M STARTER ASS'Y
    STARTER ASS'Y
  • 2
    2169-9218M CASE, STARTER
    CASE, STARTER
  • 3
    50-99986M SHEAVE, STARTER
    SHEAVE, STARTER
  • 4
    24-95484M SPRING, SPIRAL
    SPRING, SPIRAL
  • 5
    91680M SHAFT
    SHAFT
  • 6
    10-83285M BOLT
    SERIAL (M-013401 ML-306026) AND ABOVE
    BOLT
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 6
    10-91681M BOLT
    SERIAL (M-013400 ML-306025) AND BELOW
    BOLT
    SERIAL (M-013400 ML-306025) AND BELOW
  • 7
    11-82389M NUT
    NUT
  • 8
    83252M PAWL, DRIVE
    PAWL, DRIVE
  • 9
    53-84895M SNAP RING
    SNAP RING
  • 10
    24-91682M SPRING, DRIVE PAWL
    SPRING, DRIVE PAWL
  • 11
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 12
    95468M HANDLE, STARTER
    HANDLE, STARTER
  • 13
    41250M GUIDE, ROPE
    GUIDE, ROPE
  • 14
    91685M SEAL, RUBBER
    SEAL, RUBBER
  • 15
    10-91686M BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
    BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 15
    10-91686M BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
    BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
  • 16
    12-92564M WASHER
    SERIAL (M-013401 ML-306026) AND ABOVE
    WASHER
    SERIAL (M-013401 ML-306026) AND ABOVE
  • 17
    18841M COVER
    SERIAL (M-093348 ML-332748) AND ABOVE
    COVER
    SERIAL (M-093348 ML-332748) AND ABOVE
  • 17
    814491A1 COVER
    SERIAL (M-043239 THRU 093347 ML-212355 THRU 332747)
    COVER
    SERIAL (M-043239 THRU 093347 ML-212355 THRU 332747)
  • 18
    10-91674M BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
    BOLT, FLANGE
    SERIAL (M-114253 ML-338166) AND ABOVE
  • 18
    10-91674M BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
    BOLT
    SERIAL (M-114252 ML-338165) AND BELOW
