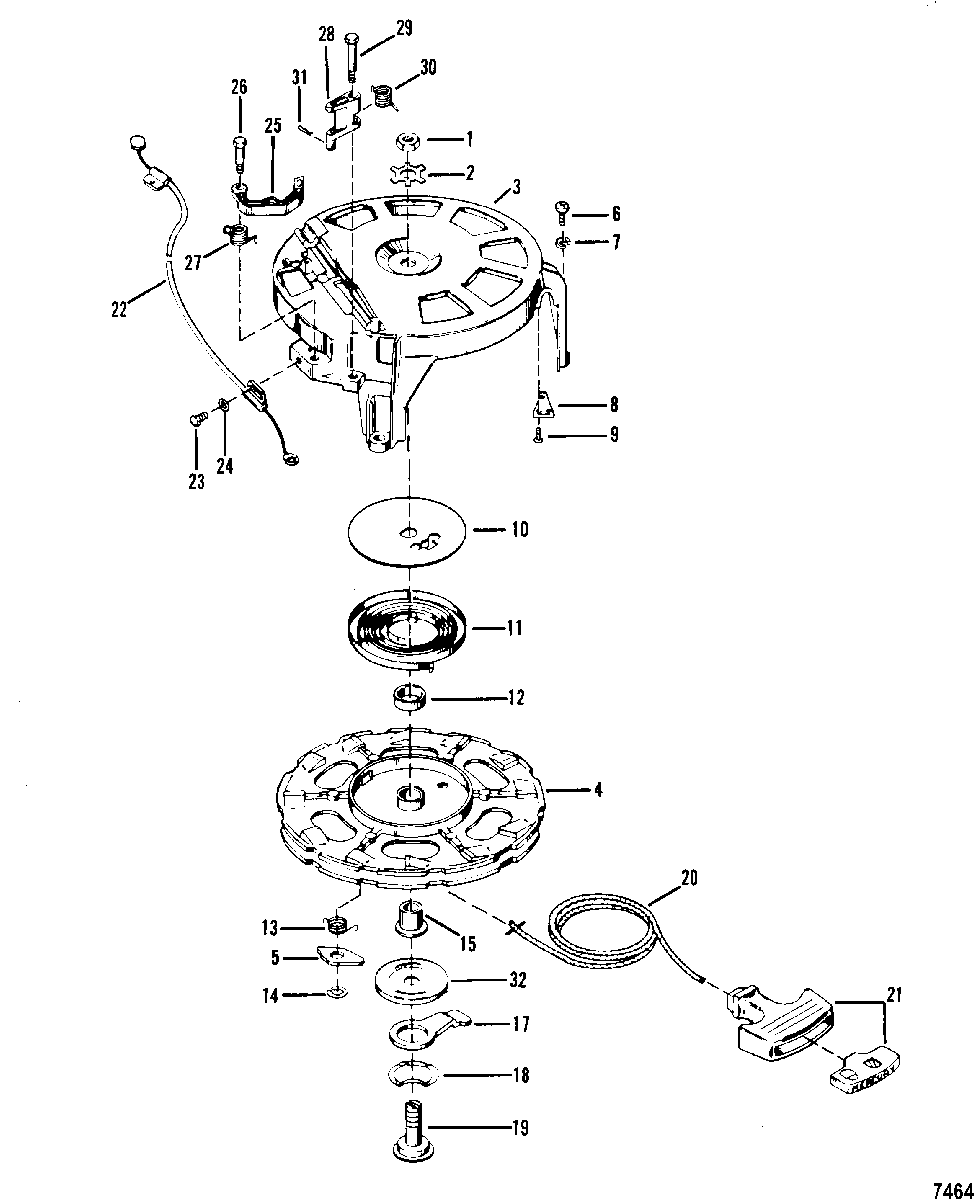

Starter Rewind для Mariner - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    11-20166 NUT, Sheave Shaft (Left Hand Thread)
    NUT, Sheave Shaft (Left Hand Thread)
  • 2
    14-61004 TAB WASHER, Sheave Shaft Nut
    TAB WASHER, Sheave Shaft Nut
  • 3
    890162 HOUSING, Starter
    HOUSING, Starter
  • 4
    50-44255A1 SHEAVE ASSEMBLY, Starter
    SHEAVE ASSEMBLY, Starter
  • 5
    44508 PAWL, Starter
    PAWL, Starter
  • 6
    10-54523 SCREW, (.312-18 x 1.00), Starter Housing
    SCREW, (.312-18 x 1.00), Starter Housing
  • 7
    13-20202 LOCKWASHER, Starter Housing Screw
    LOCKWASHER, Starter Housing Screw
  • 8
    37691 PLATE, Cable Guide
    PLATE, Cable Guide
  • 9
    10-358811 SCREW, (#6-32 x .250), Drive - Cable Guide Plate
    SCREW, (#6-32 x .250), Drive - Cable Guide Plate
  • 10
    61002 PLATE, Starter Rewind
    PLATE, Starter Rewind
  • 11
    24-39502T02 SPRING
    SPRING
  • 12
    23-87649 BUSHING, Spring Guide
    BUSHING, Spring Guide
  • 13
    24-87651 SPRING, Starter Pawl
    SPRING, Starter Pawl
  • 14
    53-87706 E RING, Starter Pawl
    E RING, Starter Pawl
  • 15
    23-63061 SPACER, Sheave Shaft
    SPACER, Sheave Shaft
  • 17
    94962 LEVER
    LEVER
  • 18
    13-20160 WAVE WASHER
    WAVE WASHER
  • 19
    87656 SHEAVE SHAFT
    SHEAVE SHAFT
  • 20
    50-12066Q10 ROPE
    ROPE
  • 20
    47341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, For Manual Starting
    ROPE AND HANDLE KIT, Manual/Emergency Start, For Manual Starting
  • 21
    85174A1 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 22
    76568 CABLE, Interlock
    (Also Used on Electric Tiller Handle Models)
    CABLE, Interlock
    (Also Used on Electric Tiller Handle Models)
  • 23
    10-69022 SCREW, (#10-32 x .500) Stainless Steel, Interlock Cable Attaching
    (Also Used on Electric Tiller Handle Models)
    SCREW, (#10-32 x .500) Stainless Steel, Interlock Cable Attaching
    (Also Used on Electric Tiller Handle Models)
  • 24
    12-73288 WASHER, Interlock Cable Screw
    (Also Used on Electric Tiller Handle Models)
    WASHER, Interlock Cable Screw
    (Also Used on Electric Tiller Handle Models)
  • 25
    428201 CAM, Interlock
    CAM, Interlock
  • 26
    10-76138 SCREW, (.312-18 x 1.120), Interlock Cam (1.125 Inch)
    SCREW, (.312-18 x 1.120), Interlock Cam (1.125 Inch)
  • 27
    24-761401 SPRING, Interlock Cam Screw
    SPRING, Interlock Cam Screw
  • 28
    79371 ACTUATOR, Interlock
    ACTUATOR, Interlock
  • 29
    10-76137 SCREW, Interlock Actuator (1.625 Inch)
    SCREW, Interlock Actuator (1.625 Inch)
  • 30
    24-76139 SPRING, Interlock Actuator Screw
    SPRING, Interlock Actuator Screw
  • 31
    18-26811 COTTER PIN, Interlock Cable to Actuator
    COTTER PIN, Interlock Cable to Actuator
  • 32
    12-35559 WASHER, Starter Rewind
    WASHER, Starter Rewind
  • -
    89016A3 STARTER ASSEMBLY, Rewind
    STARTER ASSEMBLY, Rewind
