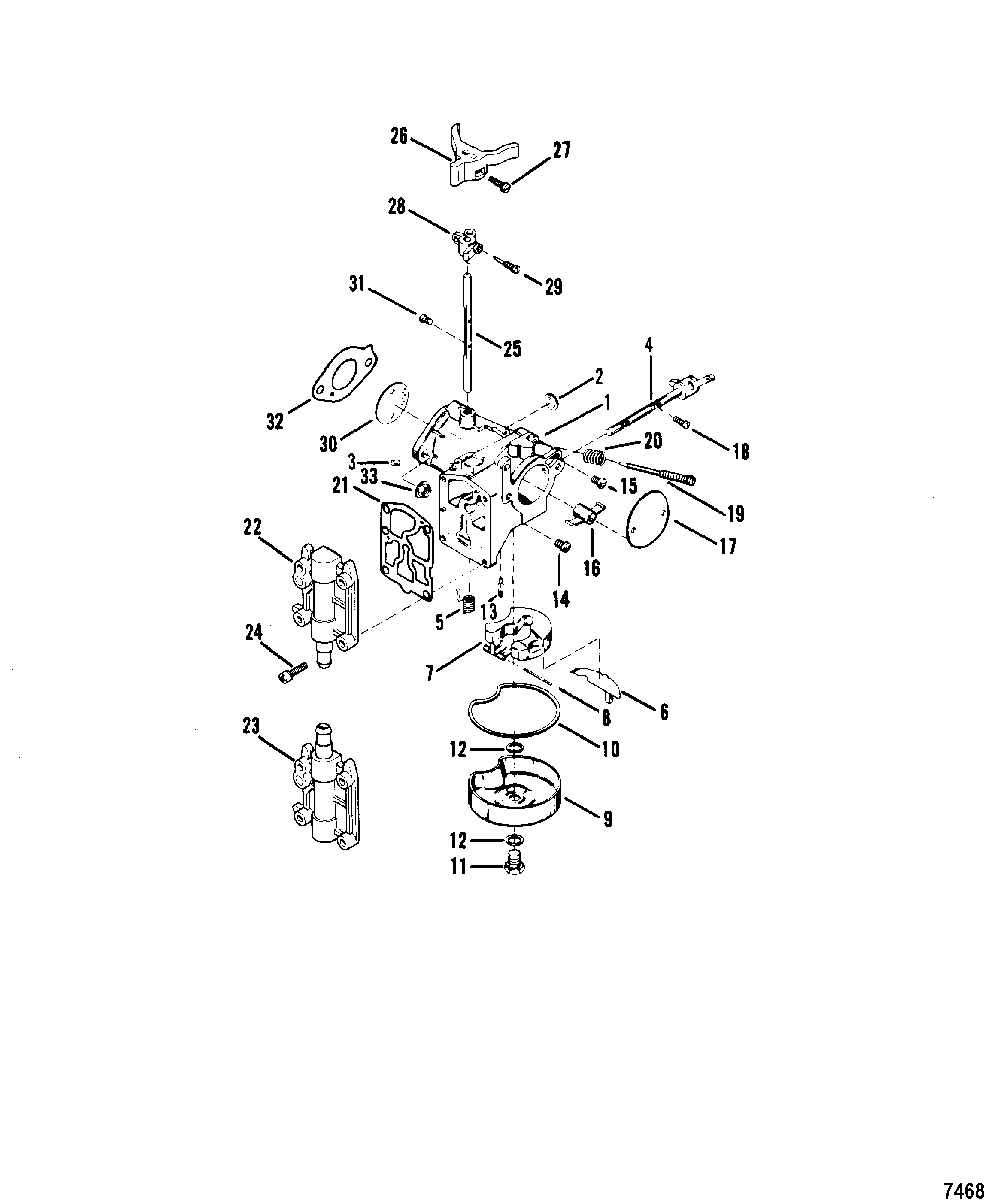

Carburetor Assembly для Mariner - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    1367-6517A63 CARBURETOR ASSEMBLY
    (Upper)
    CARBURETOR ASSEMBLY
    (Upper)
  • 1
    1367-6517A64 CARBURETOR ASSEMBLY
    (Lower)
    CARBURETOR ASSEMBLY
    (Lower)
  • 2
    NSS NOT SOLD SEPARATE, Large Body Channel
    NOT SOLD SEPARATE, Large Body Channel
  • 3
    NSS NOT SOLD SEPARATE, Body Channel
    NOT SOLD SEPARATE, Body Channel
  • 4
    1395-9296A1 SHAFT ASSEMBLY, Choke
    SHAFT ASSEMBLY, Choke
  • 5
    NSS NOT SOLD SEPARATE, Return-Throttle Shaft
    NOT SOLD SEPARATE, Return-Throttle Shaft
  • 6
    814483 BAFFLE, Fuel Bowl
    BAFFLE, Fuel Bowl
  • 7
    1395-9293 FLOAT
    FLOAT
  • 8
    NSS NOT SOLD SEPARATE, Float Retaining
    NOT SOLD SEPARATE, Float Retaining
  • 9
    1399-5127 BOWL, Fuel
    BOWL, Fuel
  • 10
    NSS NOT SOLD SEPARATE, Fuel Bowl
    NOT SOLD SEPARATE, Fuel Bowl
  • 11
    1395-9652 SCREW, Fuel Bowl to Carburetor
    SCREW, Fuel Bowl to Carburetor
  • 12
    NSS NOT SOLD SEPARATE, Fuel Bowl Screw
    NOT SOLD SEPARATE, Fuel Bowl Screw
  • 13
    1395-9022 NEEDLE AND SPRING, Inlet
    NEEDLE AND SPRING, Inlet
  • 14
    1399-1457 JET, Main Fuel (.057)
    JET, Main Fuel (.057)
  • 15
    1395-7335 JET, (.098), Economizer (.098)
    JET, (.098), Economizer (.098)
  • 16
    64677 VENTURI
    VENTURI
  • 17
    1399-8665 SHUTTER, Choke
    SHUTTER, Choke
  • 18
    NSS NOT SOLD SEPARATE, Choke Shutter to Choke Shaft
    NOT SOLD SEPARATE, Choke Shutter to Choke Shaft
  • 19
    NSS NOT SOLD SEPARATE, Idle Mixture
    NOT SOLD SEPARATE, Idle Mixture
  • 20
    NSS NOT SOLD SEPARATE, Idle Mixture Screw
    NOT SOLD SEPARATE, Idle Mixture Screw
  • 21
    NSS NOT SOLD SEPARATE, Fuel Pump
    NOT SOLD SEPARATE, Fuel Pump
  • 22
    1395-9653 COVER, Plate (Upper Carburetor)
    COVER, Plate (Upper Carburetor)
  • 23
    1395-9654 COVER, Plate (Lower Carburetor)
    COVER, Plate (Lower Carburetor)
  • 24
    1395-808612 SCREW, Strainer Body to Carburetor
    SCREW, Strainer Body to Carburetor
  • 25
    1395-9020 SHAFT, Throttle
    (Upper Carburetor)
    SHAFT, Throttle
    (Upper Carburetor)
  • 25
    1395-9656 SHAFT, Throttle
    (Lower Carburetor)
    SHAFT, Throttle
    (Lower Carburetor)
  • 26
    92880 LEVER, Throttle (Upper Carburetor)
    LEVER, Throttle (Upper Carburetor)
  • 27
    1395-6027 SCREW, Throttle Lever (Upper Carburetor)
    SCREW, Throttle Lever (Upper Carburetor)
  • 28
    8146791 LEVER, Throttle (Lower Carburetor)
    LEVER, Throttle (Lower Carburetor)
  • 29
    1395-6027 SCREW, Throttle Lever (Lower Carburetor)
    SCREW, Throttle Lever (Lower Carburetor)
  • 30
    1395-9649 SHUTTER, Throttle
    SHUTTER, Throttle
  • 31
    NSS NOT SOLD SEPARATE, Throttle Shutter to Throttle Shaft
    NOT SOLD SEPARATE, Throttle Shutter to Throttle Shaft
  • 32
    27-757911 GASKET, Carburetor Flange
    GASKET, Carburetor Flange
  • 33
    11-64809 NUT, Carburetor Mounting Stud
    NUT, Carburetor Mounting Stud
  • --
    1395-9650 REPAIR KIT
    REPAIR KIT
  • --
    1395-9651 GASKET SET
    GASKET SET
