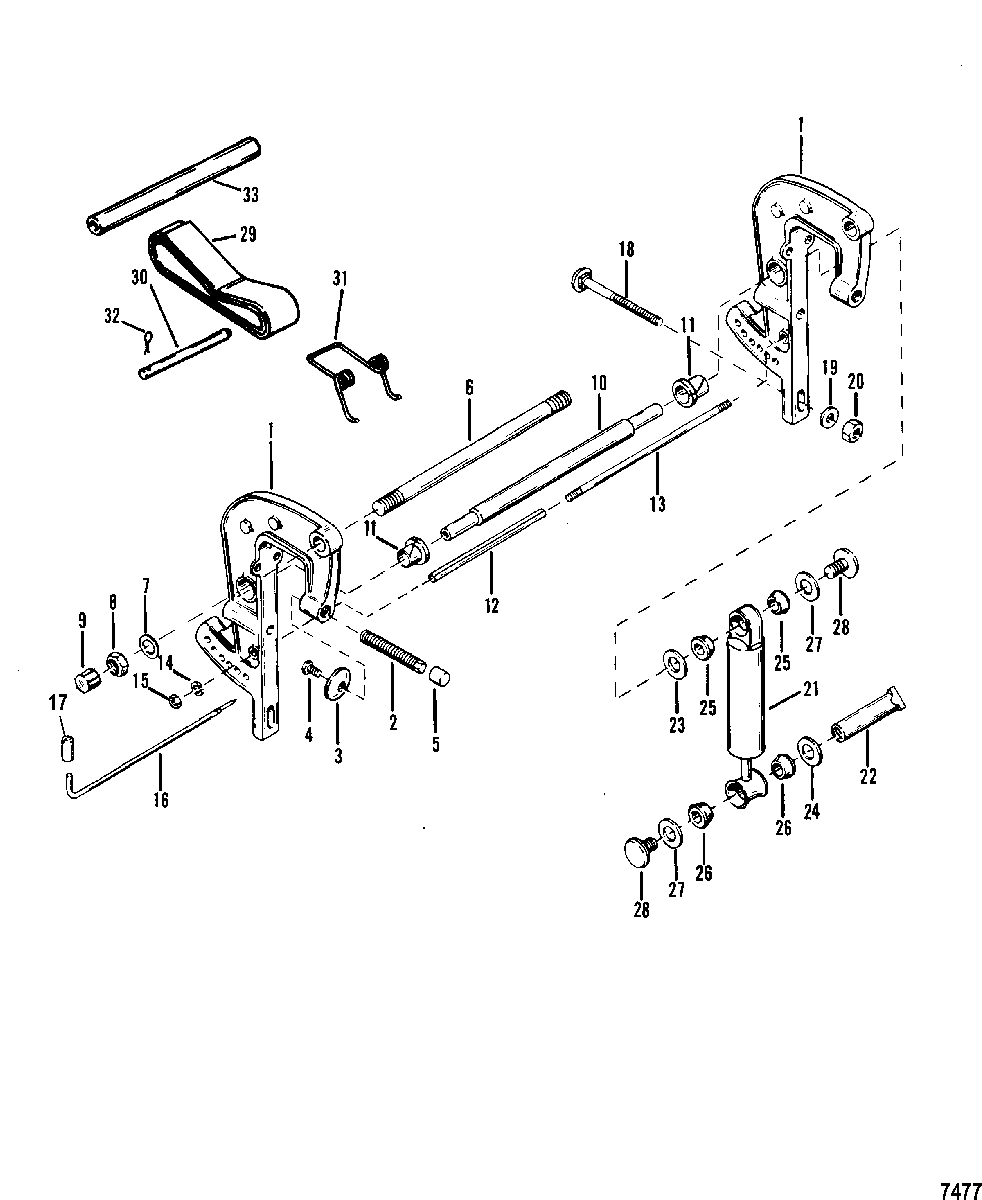

Clamp Bracket Assembly(Non Power Trim) для Mariner - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    1440-8394A2 CLAMP BRACKET ASSEMBLY
    (Manual)
    CLAMP BRACKET ASSEMBLY
    (Manual)
  • 1
    1440-8394A1 CLAMP BRACKET ASSEMBLY, Black
    (Electric)
    CLAMP BRACKET ASSEMBLY, Black
    (Electric)
  • 1
    1440-8394A3 CLAMP BRACKET ASSEMBLY, Gray
    (Electric)
    CLAMP BRACKET ASSEMBLY, Gray
    (Electric)
  • 2
    10-90470A3 THUMB SCREW ASSEMBLY
    (Manual)
    THUMB SCREW ASSEMBLY
    (Manual)
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    (Electric)
    THUMB SCREW ASSEMBLY
    (Electric)
  • 3
    12-78493 WASHER, Thumb Screw
    WASHER, Thumb Screw
  • 4
    10-78495 SCREW, Washer to Thumb Screw
    SCREW, Washer to Thumb Screw
  • 5
    75043 CAP, Thumb Screw
    CAP, Thumb Screw
  • 6
    8M0041936 TILT TUBE
    TILT TUBE
  • 7
    12-52864 WASHER, Tilt Tube
    WASHER, Tilt Tube
  • 8
    11-858869 NUT, (.875-14), Tilt Tube
    NUT, (.875-14), Tilt Tube
  • 9
    53078 CAP, Plastic - Tilt Tube
    CAP, Plastic - Tilt Tube
  • 10
    55-28416 PIN, Upper Shock
    (With Shock Absorber)
    PIN, Upper Shock
    (With Shock Absorber)
  • 11
    23-73203 BUSHING, Clamp Bracket
    BUSHING, Clamp Bracket
  • 12
    23-59623 SPACER, Clamp Bracket Stud
    SPACER, Clamp Bracket Stud
  • 13
    16-59625 STUD, Clamp Bracket
    STUD, Clamp Bracket
  • 14
    13-26993 LOCKWASHER, (.312), Clamp Bracket Stud
    LOCKWASHER, (.312), Clamp Bracket Stud
  • 15
    11-28770 NUT, (.312-24) Stainless Steel, Clamp Bracket Stud
    NUT, (.312-24) Stainless Steel, Clamp Bracket Stud
  • 16
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 18
    10-68298 BOLT, (.375-16 x 3.250), Clamp Bracket to Tramsom (3.25 Inch)
    BOLT, (.375-16 x 3.250), Clamp Bracket to Tramsom (3.25 Inch)
  • 19
    12-46765 WASHER, Clamp Bracket Bolt
    WASHER, Clamp Bracket Bolt
  • 18
    10-89673 SCREW, (.375-16 x 5.00), Clamp Bracket to Transom (5 Inch)
    SCREW, (.375-16 x 5.00), Clamp Bracket to Transom (5 Inch)
  • 19
    12-28420 WASHER, (1-1/ 4 x 25/64 x .125 SS), Clamp Bracket Bolt
    WASHER, (1-1/ 4 x 25/64 x .125 SS), Clamp Bracket Bolt
  • 19
    12-68300 WASHER, (..88 x .39 x .06), Clamp Bracket Bolt
    WASHER, (..88 x .39 x .06), Clamp Bracket Bolt
  • 20
    11-82671112 NUT, Clamp Bracket Bolt
    NUT, Clamp Bracket Bolt
  • 21
    55-58780A7 SHOCK ABSORBER, Black
    (With Shock Absorber)
    SHOCK ABSORBER, Black
    (With Shock Absorber)
  • 21
    55-58780A4 SHOCK ABSORBER, Gray
    (With Shock Absorber)
    SHOCK ABSORBER, Gray
    (With Shock Absorber)
  • 22
    55-696531 PIN, Lower Shock
    (With Shock Absorber)
    PIN, Lower Shock
    (With Shock Absorber)
  • 23
    12-34937 WASHER, (.766 x 1.312 x .125), Upper Bushing Retainer (Inner)
    (With Shock Absorber)
    WASHER, (.766 x 1.312 x .125), Upper Bushing Retainer (Inner)
    (With Shock Absorber)
  • 24
    12-59378 WASHER, Lower Bushing Retainer (Inner)
    (With Shock Absorber)
    WASHER, Lower Bushing Retainer (Inner)
    (With Shock Absorber)
  • 25
    23-32171 BUSHING, Rubber - Shock Absorber (Upper)
    (With Shock Absorber)
    BUSHING, Rubber - Shock Absorber (Upper)
    (With Shock Absorber)
  • 26
    23-28198 BUSHING, Rubber - Shock Absorber (Lower)
    (With Shock Absorber)
    BUSHING, Rubber - Shock Absorber (Lower)
    (With Shock Absorber)
  • 27
    12-69374 WASHER, Upper and Lower Bushing (Outer)
    (With Shock Absorber)
    WASHER, Upper and Lower Bushing (Outer)
    (With Shock Absorber)
  • 28
    10-69375A1 SCREW, (.500-20 x .625), Upper and Lower Shock Pin (0.625 Inch)
    (With Shock Absorber)
    SCREW, (.500-20 x .625), Upper and Lower Shock Pin (0.625 Inch)
    (With Shock Absorber)
  • 29
    98876 STRAP, Tilt Stop
    (Without Shock Absorber)
    STRAP, Tilt Stop
    (Without Shock Absorber)
  • 30
    98878 PIN, Lower Shock Mount
    (Without Shock Absorber)
    PIN, Lower Shock Mount
    (Without Shock Absorber)
  • 31
    24-98875 SPRING
    (Without Shock Absorber)
    SPRING
    (Without Shock Absorber)
  • 32
    18-328571 COTTER PIN
    (Without Shock Absorber)
    COTTER PIN
    (Without Shock Absorber)
  • 33
    98877 SHOCK MOUNT, Upper
    (Without Shock Absorber)
    SHOCK MOUNT, Upper
    (Without Shock Absorber)
