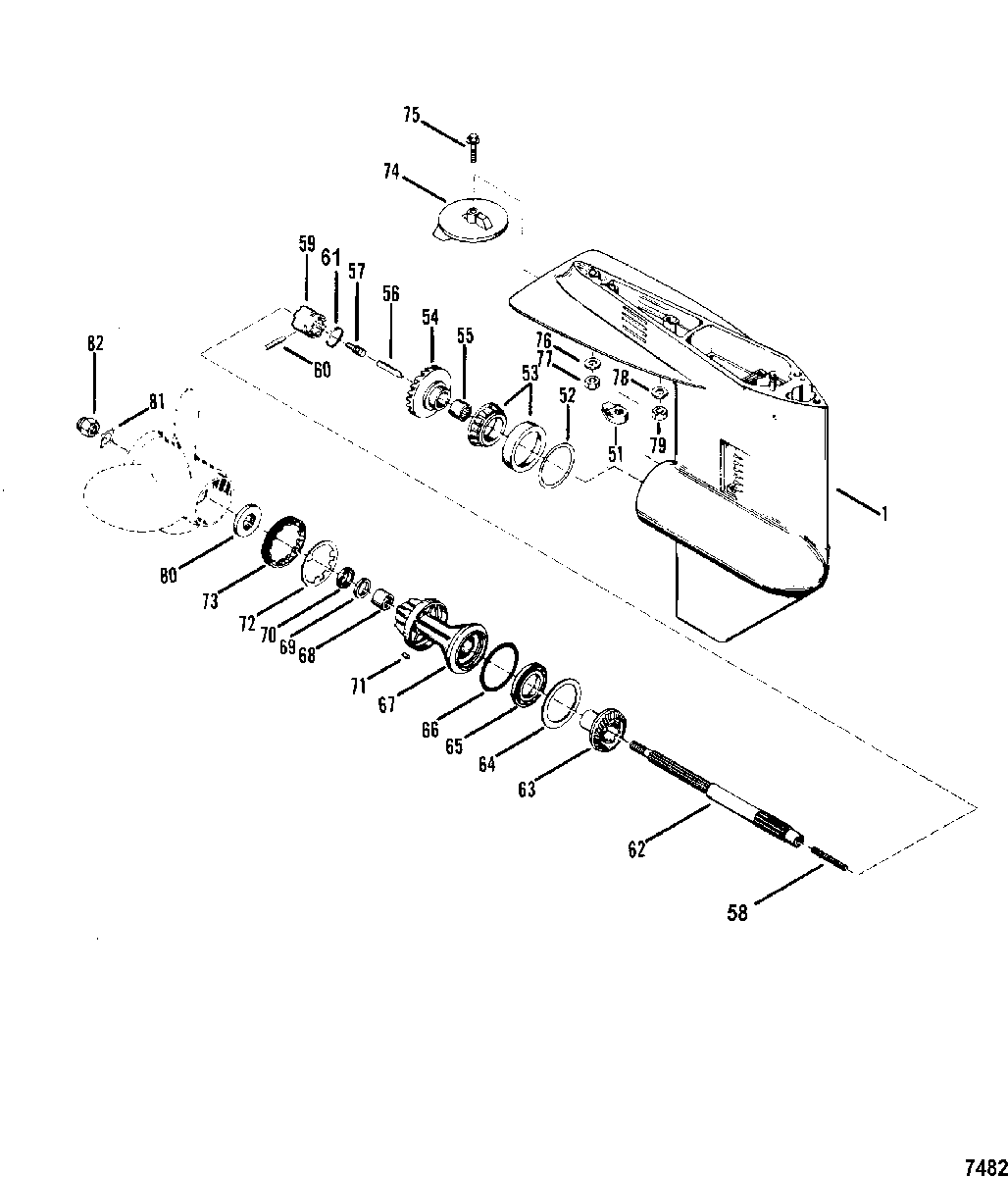

Gear Housing, Propeller Shaft для Mariner - 45 (4 CYL.) 0B110789 & Up
-
№АртикулНазвание
-
-1643-9539A4 GEAR HOUSING ASSEMBLY, Short Shaft - BlackGEAR HOUSING ASSEMBLY, Short Shaft - Black
-
-1643-9539A5 GEAR HOUSING ASSEMBLY, Long Shaft - BlackGEAR HOUSING ASSEMBLY, Long Shaft - Black
-
-1643-9539A6 GEAR HUSING ASSEMBLY, Short Shaft - GrayGEAR HUSING ASSEMBLY, Short Shaft - Gray
-
-1643-9539A7 GEAR HOUSING ASSEMBLY, Long Shaft - GrayGEAR HOUSING ASSEMBLY, Long Shaft - Gray
-
11643-9539T1 GEAR HOUSING ASSEMBLY
BlackGEAR HOUSING ASSEMBLY
Black -
11643-9539T1 GEAR HOUSING ASSEMBLY
GrayGEAR HOUSING ASSEMBLY
Gray -
51760394 CAM, Shift ControlCAM, Shift Control
-
5215-38374A1 SHIM SET, Bearing Cup to Gear Housing (.002-3-5-10)SHIM SET, Bearing Cup to Gear Housing (.002-3-5-10)
-
5331-38356A1 BEARING SETBEARING SET
-
5443-55608T4 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5531-21739 BEARING, Roller, Foward GearBEARING, Roller, Foward Gear
-
5638441 FOLLOWER, CamFOLLOWER, Cam
-
5720843 SLIDE, Cross PinSLIDE, Cross Pin
-
5824-38114 SPRING, Retaining - Cross PinSPRING, Retaining - Cross Pin
-
5952-92911T RATCHET, Sliding ClutchRATCHET, Sliding Clutch
-
6017-8M0020942 PIN, Cross, Ratchet to Propeller ShaftPIN, Cross, Ratchet to Propeller Shaft
-
6124-39845 SPRING, Compression - Cam FollowerSPRING, Compression - Cam Follower
-
6244-75365 PROPELLER SHAFTPROPELLER SHAFT
-
6343-79158T GEAR, ReverseGEAR, Reverse
-
6412-32004 WASHER, Thrust - Reverse GearWASHER, Thrust - Reverse Gear
-
6530-20839T BEARING, Ball, Reverse GearBEARING, Ball, Reverse Gear
-
6625-31986 O-RING, Bearing CarrierO-RING, Bearing Carrier
-
6769386T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6831-21700 BEARING, Needle, Bearing CarrierBEARING, Needle, Bearing Carrier
-
6926-69188 SEAL, Oil, Bearing CarrierSEAL, Oil, Bearing Carrier
-
7026-69189 SEAL, Oil, Bearing CarrierSEAL, Oil, Bearing Carrier
-
7128-30281 KEY, Locating - Bearing CarrierKEY, Locating - Bearing Carrier
-
7214-53012 TAB WASHER, Gear Housing CoverTAB WASHER, Gear Housing Cover
-
7311-87763 NUT, Gear HousingNUT, Gear Housing
-
7497-31640Q4 TRIM TAB ASSEMBLY, Gear HousingTRIM TAB ASSEMBLY, Gear Housing
-
7510-66024 SCREW, (.437-14 x 1.75), Trim Tab to Gear HousingSCREW, (.437-14 x 1.75), Trim Tab to Gear Housing
-
7612-856774 WASHER, (.406 x .750 x .104), Driveshaft Housing Stud (0.375 Inch)WASHER, (.406 x .750 x .104), Driveshaft Housing Stud (0.375 Inch)
-
7711-8M0042636 NUT, (.375-24), Driveshaft Housing StudNUT, (.375-24), Driveshaft Housing Stud
-
7812-65791 WASHER, Housing to Stud (0.437 Inch)WASHER, Housing to Stud (0.437 Inch)
-
7911-34933 NUT, (.437-20) Stainless Steel, StudNUT, (.437-20) Stainless Steel, Stud
-
8073345A1 THRUST HUB, FrontTHRUST HUB, Front
-
8114-76281 TAB WASHER, Propeller NutTAB WASHER, Propeller Nut
-
8211-69578Q1 PROP NUT KITPROP NUT KIT
-
-26-79831A1 SEAL KITSEAL KIT
-
-27-85491A90 GASKET SETGASKET SET
