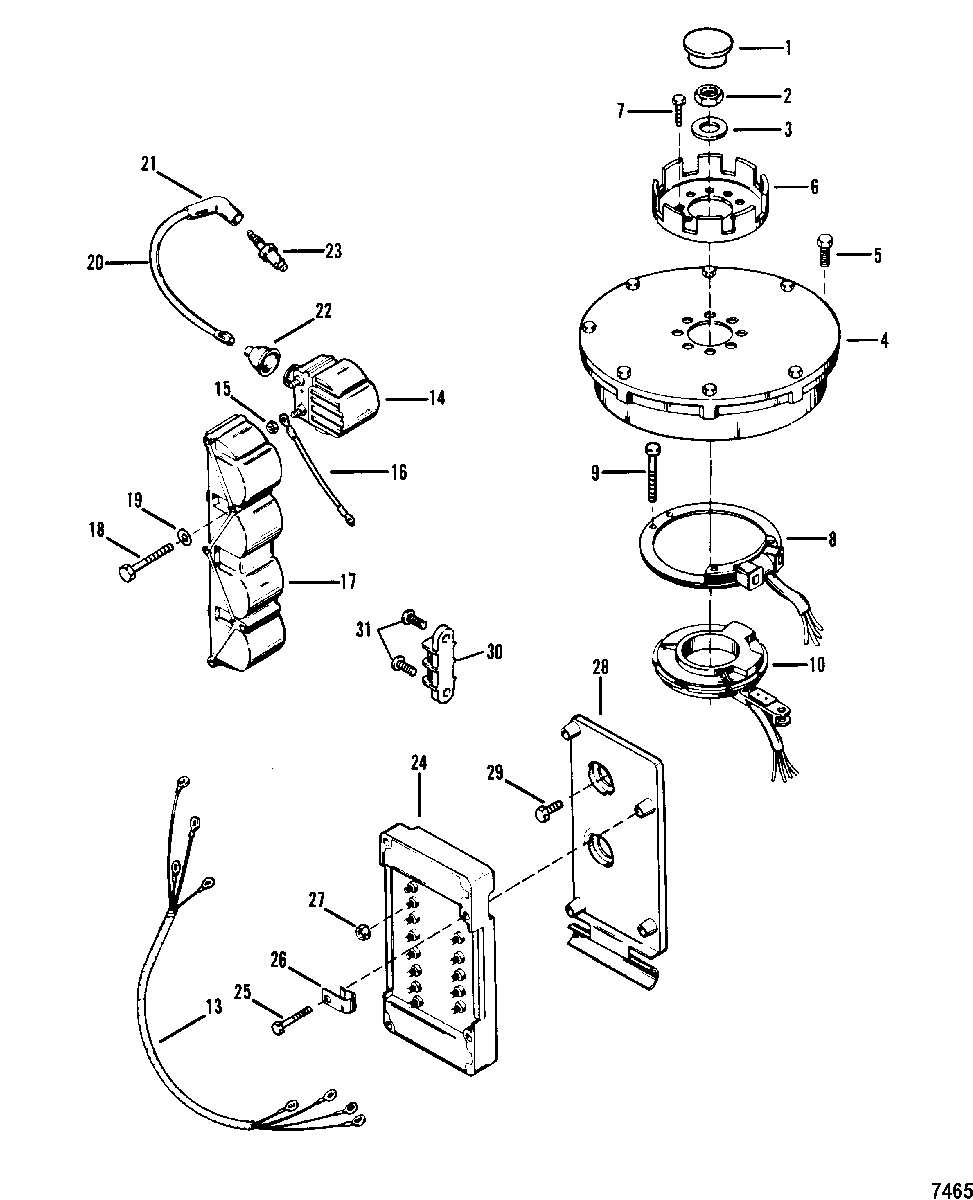

Flywheel, Ignition Coil and Switch Box для Mariner - 45 (4 CYL.) 0B110789 & Up

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, Yellow, Flywheel
    PLUG, Yellow, Flywheel
  • 2
    11-22339 NUT, (.625-18), Flywheel
    NUT, (.625-18), Flywheel
  • 3
    12-33001 WASHER, (.641 x 1.250 x .190), Flywheel Nut
    WASHER, (.641 x 1.250 x .190), Flywheel Nut
  • 4
    248-8722A16 FLYWHEEL ASSEMBLY
    (Manual)
    FLYWHEEL ASSEMBLY
    (Manual)
  • 4
    248-8722A17 FLYWHEEL ASSMEBLY
    (Electric)
    FLYWHEEL ASSMEBLY
    (Electric)
  • 5
    10-32417 SCREW, (.250-28 x .625), Flexible Plate to Flywheel
    SCREW, (.250-28 x .625), Flexible Plate to Flywheel
  • 6
    50-88755 RATCHET, Flywheel (Manual)
    RATCHET, Flywheel (Manual)
  • 7
    10-68997 SCREW, (.312-24 x .750), Ratchet to Flywheel (Manual)
    SCREW, (.312-24 x .750), Ratchet to Flywheel (Manual)
  • 8
    398-832074A6 STATOR
    (Manual)
    STATOR
    (Manual)
  • 8
    398-832075A20 STATOR
    (Electric)
    STATOR
    (Electric)
  • 9
    10-75840 SCREW, (#10-24 x .880), Stator to Upper End Cap
    SCREW, (#10-24 x .880), Stator to Upper End Cap
  • 10
    96452A4 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 13
    84-88721A1 HARNESS ASSEMBLY, Switch Box to Ignition Coil
    HARNESS ASSEMBLY, Switch Box to Ignition Coil
  • 14
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 15
    11-45076 NUT, (#10-32) Brass, Ignition Coil Terminals
    NUT, (#10-32) Brass, Ignition Coil Terminals
  • 16
    84-60466A19 CABLE ASSEMBLY, Coil to Switch Box
    CABLE ASSEMBLY, Coil to Switch Box
  • 17
    87554 COVER, Ignition Coil
    COVER, Ignition Coil
  • 18
    10-88856 SCREW, (.190-32 x 2.00), Coil Cover
    (10-32 X 2 Inch)
    SCREW, (.190-32 x 2.00), Coil Cover
    (10-32 X 2 Inch)
  • 19
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, Coil Cover Screw
    WASHER, (.192 x .375 x .0312) Stainless Steel, Coil Cover Screw
  • 20
    84-813715A5 LEAD ASSEMBLY, Spark Plug
    LEAD ASSEMBLY, Spark Plug
  • 21
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 22
    332-2854T01 BOOT, Ignition Coil
    BOOT, Ignition Coil
  • 23
    33-97182Q SPARK PLUG
    (USA Models)
    SPARK PLUG
    (USA Models)
  • 23
    33-14103550 SPARK PLUG, (NGK-BUZHW)
    (Belgium and Canada Models)
    SPARK PLUG, (NGK-BUZHW)
    (Belgium and Canada Models)
  • 24
    332-5772A7 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 25
    10-20619 SCREW, (#12-24 x 1.25), Switch Box and "J" Clip to Plate
    SCREW, (#12-24 x 1.25), Switch Box and "J" Clip to Plate
  • 26
    54-642351 J CLIP, Switch Box Leads
    J CLIP, Switch Box Leads
  • 27
    11-45076 NUT, (#10-32) Brass, Switch Box Terminals
    NUT, (#10-32) Brass, Switch Box Terminals
  • 28
    88322 PLATE, Switch Box
    PLATE, Switch Box
  • 29
    10-54615 SCREW, (.250-20 x .625), Switch Box Plate to Cylinder Block
    SCREW, (.250-20 x .625), Switch Box Plate to Cylinder Block
  • 30
    86-638131 TERMINAL BLOCK
    TERMINAL BLOCK
  • 31
    10-20568 SCREW, (.190-24 x .62), Terminal Block
    SCREW, (.190-24 x .62), Terminal Block
  • 31
    10-62568 SCREW, (#10-16 x .375), Terminal Block
    SCREW, (#10-16 x .375), Terminal Block
