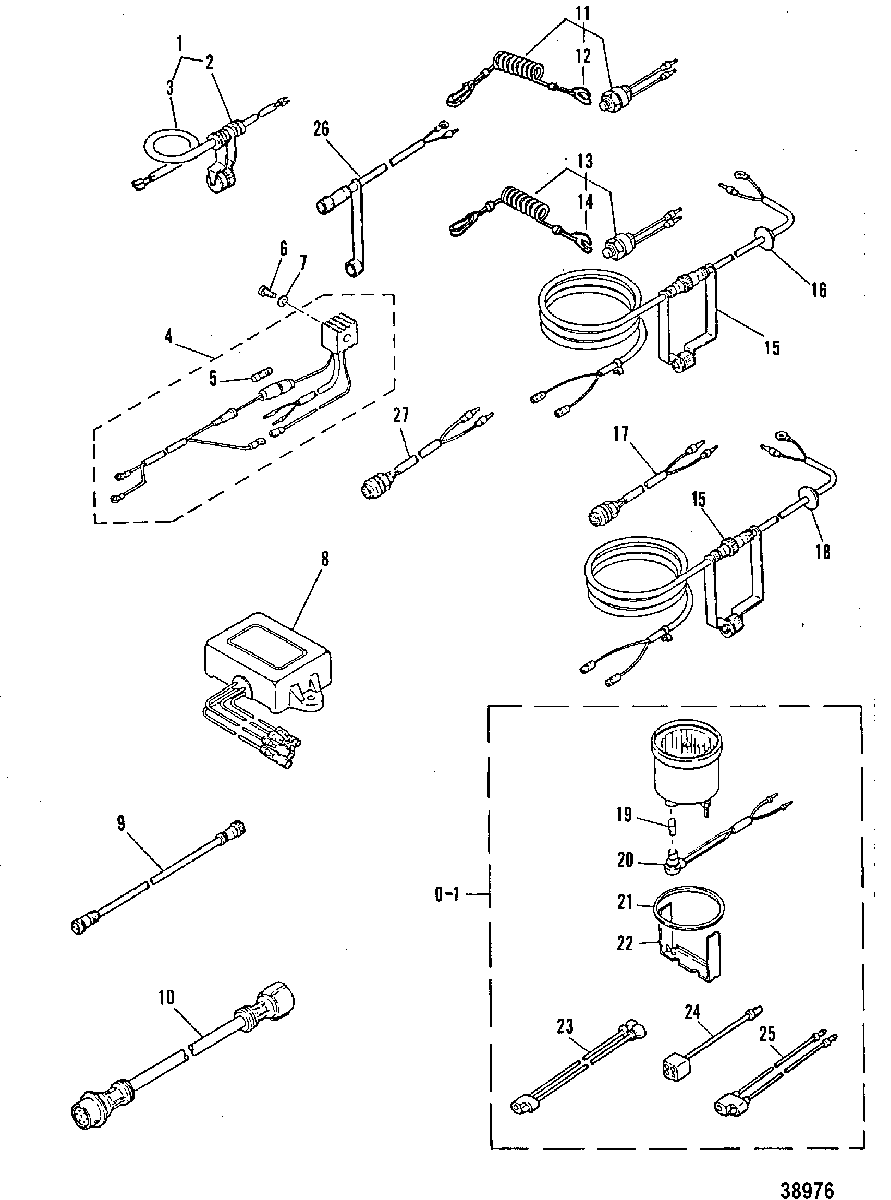

OPTIONAL PARTS для Mariner - 30A 689-000366 THRU 022058

  • №
    Артикул
    Название
  • 1
    84-84124M CONNECTOR , WIRE (USED WITH REMOTE KILL OR STOP SWITCH)
    CONNECTOR , WIRE (USED WITH REMOTE KILL OR STOP SWITCH)
  • 2
    84-99051M CONNECTOR
    CONNECTOR
  • 3
    84-99052M CONNECTOR
    CONNECTOR
  • 4
    83-8M0060278 RECTIFIER ASSEMBLY, ENGINE MOUNT
    RECTIFIER ASSEMBLY, ENGINE MOUNT
  • 5
    88-81522M FUSE
    FUSE
  • 6
    10-83108M SCREW
    SCREW
  • 7
    12-82214M WASHER
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    WASHER
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 7
    12-82211M WASHER
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
    WASHER
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
  • 8
    84125T REGULATOR ASSEMBLY, Voltage, BOAT MOUNT
    REGULATOR ASSEMBLY, Voltage, BOAT MOUNT
  • 9
    84959M EXTENSION, USED WITH REMOTE KILL OR STOP SWITCH
    EXTENSION, USED WITH REMOTE KILL OR STOP SWITCH
  • 10
    84960M EXTENSION (2M) - USED WITH ELECTIC START SWITCH PANEL HARNES
    EXTENSION (2M) - USED WITH ELECTIC START SWITCH PANEL HARNES
  • 11
    87-97774M SWITCH ASSEMBLY, Stop, ENGINE MOUNT
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415
    SWITCH ASSEMBLY, Stop, ENGINE MOUNT
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415
  • 11
    87-97774M SWITCH ASSEMBLY, Stop, ENGINE MOUNT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    SWITCH ASSEMBLY, Stop, ENGINE MOUNT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 12
    97756M STOPPER
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415
    STOPPER
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820/ML-318386/E-104275/EL-409415
  • 12
    97756M STOPPER
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    STOPPER
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 13
    87-97765M SWITCH ASSEMBLY, Stop, REMOTE
    SWITCH ASSEMBLY, Stop, REMOTE
  • 14
    97756M STOPPER
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    STOPPER
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 14
    97756M STOPPER
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    STOPPER
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 15
    84964M EXTENSION (5M) - FOR REMOTE KILL OR STOP SWITCH
    EXTENSION (5M) - FOR REMOTE KILL OR STOP SWITCH
  • 16
    25-84967M GROMMET
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    GROMMET
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 16
    25-826981M GROMMET
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    GROMMET
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 17
    87-97754M SWITCH ASSEMBLY, Stop, REMOTE
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    SWITCH ASSEMBLY, Stop, REMOTE
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 17
    87-97754M SWITCH ASSEMBLY, Stop, REMOTE
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    SWITCH ASSEMBLY, Stop, REMOTE
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 18
    25-84967M GROMMET
    GROMMET
  • 0-1
    79-43984A1 TACHOMETER KIT
    TACHOMETER KIT
  • 19
    88-99055M BULB
    BULB
  • 20
    99056A1 SOCKET, BULB
    SOCKET, BULB
  • 21
    99057M DAMPER
    DAMPER
  • 22
    99058M PLATE
    PLATE
  • 23
    84-99059M WIRE
    WIRE
  • 24
    84-84353M CONNECTOR
    CONNECTOR
  • 25
    84-84352M EXTENSION, LEAD
    EXTENSION, LEAD
  • 26
    99053M SOCKET CORD ASSEMBLY
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    SOCKET CORD ASSEMBLY
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 27
    87-93102M SWITCH ASSEMBLY, Stop
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    SWITCH ASSEMBLY, Stop
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
