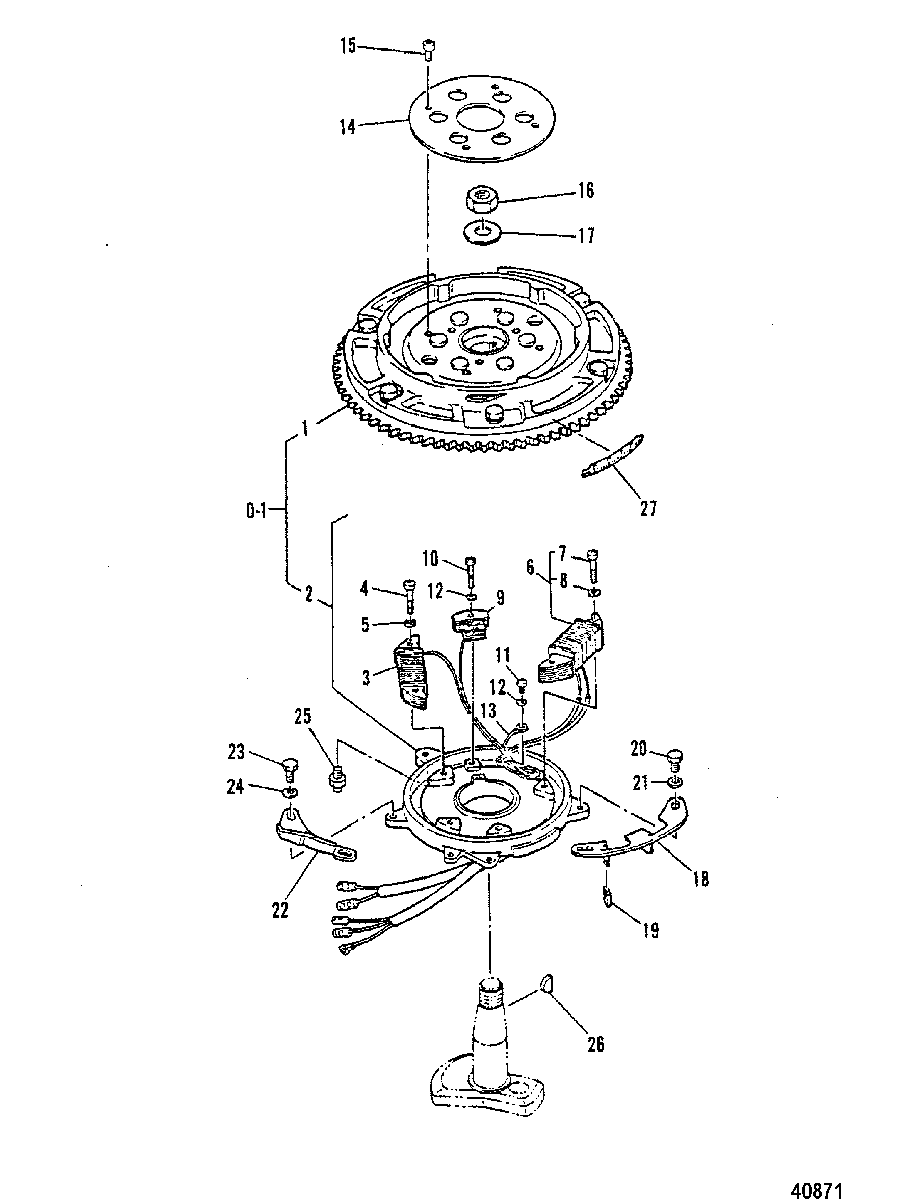

C.D.I MAGNETO ASSEMBLY для Mariner - 30A 689-000366 THRU 022058

  • №
    Артикул
    Название
  • 0-1
    253-8483M CDI MAGNETO ASSEMBLY
    (ELECTRIC WITH LIGHTING COIL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    CDI MAGNETO ASSEMBLY
    (ELECTRIC WITH LIGHTING COIL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 0-1
    253-7850M MAGNETO ASSEMBLY
    (ELECTRIC WITH LIGHTING COIL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    MAGNETO ASSEMBLY
    (ELECTRIC WITH LIGHTING COIL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 0-1
    253-8483M CDI MAGNETO ASSEMBLY
    (MANUAL WITH LIGHTING COIL)
    CDI MAGNETO ASSEMBLY
    (MANUAL WITH LIGHTING COIL)
  • 1
    253-8482M FLYWHEEL
    (ELECTRIC) SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    FLYWHEEL
    (ELECTRIC) SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 1
    253-8482M FLYWHEEL
    (MANUAL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    FLYWHEEL
    (MANUAL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 1
    253-7851M FLYWHEEL
    (ELECTRIC AND MANUAL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    FLYWHEEL
    (ELECTRIC AND MANUAL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 2
    811176M BASE ASSEMBLY
    (WITHOUT LIGHTING COIL)
    BASE ASSEMBLY
    (WITHOUT LIGHTING COIL)
  • 2
    811176M BASE ASSEMBLY
    (WITH LIGHTING COIL)
    BASE ASSEMBLY
    (WITH LIGHTING COIL)
  • 3
    84879T COIL, IGNITION
    COIL, IGNITION
  • 4
    10-83108M SCREW
    SCREW
  • 5
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 6
    84881M COIL ASSEMBLY, Lighting
    COIL ASSEMBLY, Lighting
  • 7
    10-83108M SCREW
    SCREW
  • 8
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 9
    84877M PULSER
    PULSER
  • 10
    253-8482M FLYWHEEL
    FLYWHEEL
  • 11
    10-82499M SCREW
    SCREW
  • 12
    13-82206M LOCKWASHER, LOCK
    LOCKWASHER, LOCK
  • 13
    84-84883M WIRE, GROUND
    WIRE, GROUND
  • 14
    96649M COVER
    COVER
  • 15
    10-82436M BOLT
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    BOLT
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 15
    10-83523M SCREW
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    SCREW
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 16
    11-96650M NUT, (M16), FLYWHEEL
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    NUT, (M16), FLYWHEEL
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 16
    11-893789 NUT, FLYWHEEL
    SN# 00000000 THRU 00007185 SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    NUT, FLYWHEEL
    SN# 00000000 THRU 00007185 SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 17
    12-96651M WASHER
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    WASHER
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 17
    12-893762 WASHER
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    WASHER
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 18
    84885M STOP, MAGNETO BASE
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    STOP, MAGNETO BASE
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 18
    94652M STOP, MAGNETO BASE
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    STOP, MAGNETO BASE
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 19
    84886M CAP
    CAP
  • 20
    10-84088M BOLT
    BOLT
  • 21
    12-82214M WASHER, LOCK
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820,ML-318386/E-104275/EL-409415
    WASHER, LOCK
    SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820,ML-318386/E-104275/EL-409415
  • 22
    84887M CAM, THROTTLE ACCEL
    CAM, THROTTLE ACCEL
  • 23
    10-84313M BOLT
    BOLT
  • 24
    12-82211M WASHER
    WASHER
  • 25
    84305M JOINT
    JOINT
  • 26
    28-81915M KEY, FLYWHEEL
    KEY, FLYWHEEL
  • 27
    37-84888M DECAL, TIMING MARK
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
    DECAL, TIMING MARK
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
