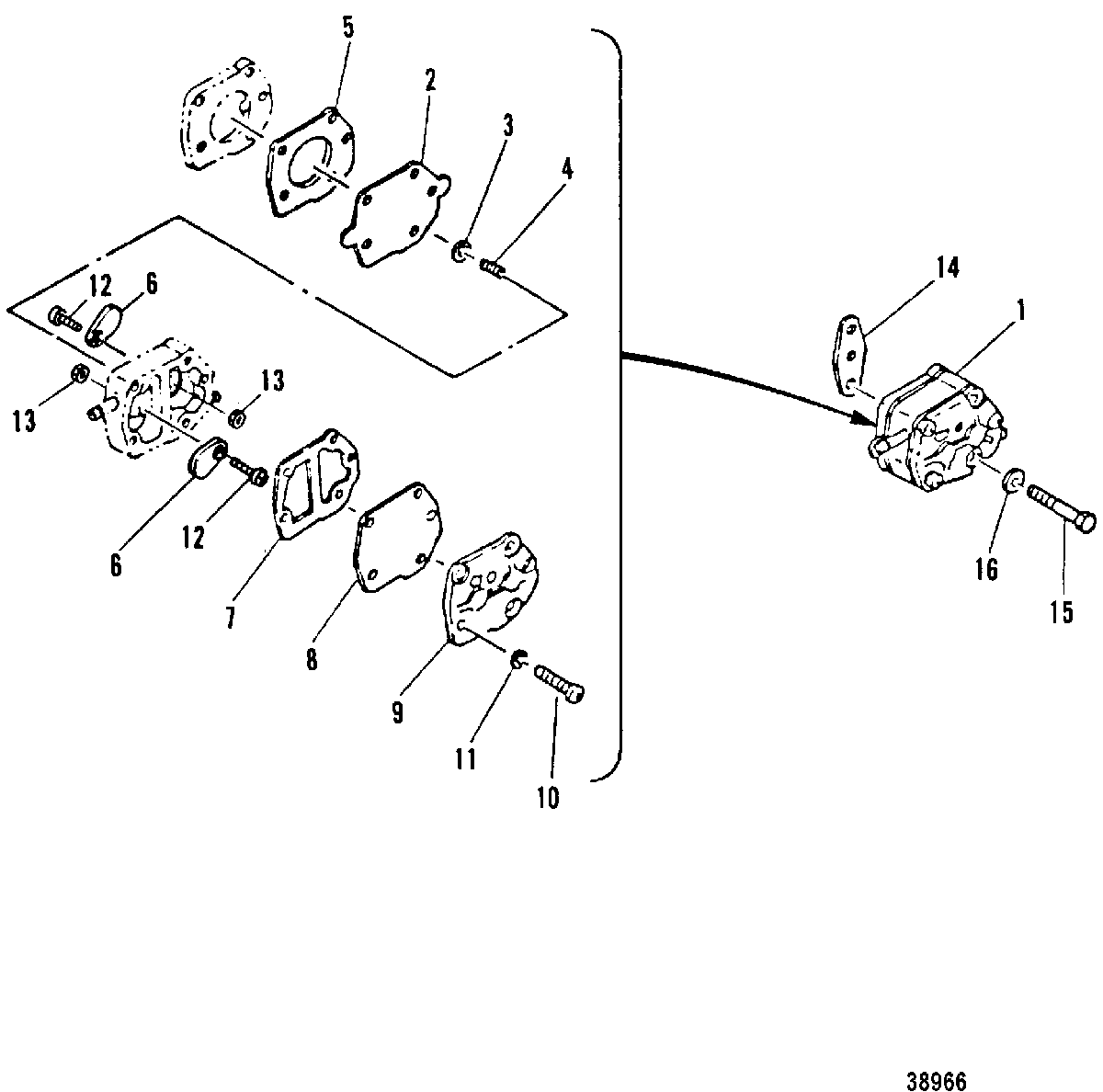

FUEL PUMP для Mariner - 30A 689-000366 THRU 022058

  • №
    Артикул
    Название
  • 1
    43113T PUMP ASSEMBLY, Fuel
    SN# M-018821/NL-318387/E-104276/EL-409416 & Up
    PUMP ASSEMBLY, Fuel
    SN# M-018821/NL-318387/E-104276/EL-409416 & Up
  • 1
    43113T PUMP ASSEMBLY, Fuel
    SN# M-018820/NL-318386/E-104275/EL-409415 & Below
    PUMP ASSEMBLY, Fuel
    SN# M-018820/NL-318386/E-104275/EL-409415 & Below
  • 2
    80606M DIAPHRAGM
    DIAPHRAGM
  • 3
    80611M PLATE, SPRING
    PLATE, SPRING
  • 4
    24-80610M SPRING
    SPRING
  • 5
    27-80613 GASKET, BODY TO BASE
    GASKET, BODY TO BASE
  • 6
    21-41888M CHECK VALVE
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    CHECK VALVE
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 6
    21-41888M CHECK VALVE
    SN# M-005226/ML-305751/E-101141/EL-403151 THRU M-010645/ML-311475/E-102355/EL-405455
    CHECK VALVE
    SN# M-005226/ML-305751/E-101141/EL-403151 THRU M-010645/ML-311475/E-102355/EL-405455
  • 6
    21-84650M CHECK VALVE
    SN# M-005225/ML-305750/E-101140/EL-403150 & Below
    CHECK VALVE
    SN# M-005225/ML-305750/E-101140/EL-403150 & Below
  • 7
    27-43095M GASKET, COVER TO BODY
    SN# M-018821/NL-318387/E-104276/EL-409416 & Up
    GASKET, COVER TO BODY
    SN# M-018821/NL-318387/E-104276/EL-409416 & Up
  • 7
    27-80614 GASKET, COVER TO BODY
    SN# M-018820/NL-318386/E-104275/EL-409415 & Below
    GASKET, COVER TO BODY
    SN# M-018820/NL-318386/E-104275/EL-409415 & Below
  • 8
    84141M DIAPHRAGM
    DIAPHRAGM
  • 9
    80607M COVER
    SN# M-018821/NL-318387/E-104276/EL-409416 & Up
    COVER
    SN# M-018821/NL-318387/E-104276/EL-409416 & Up
  • 9
    80607M COVER
    SN# M-018820/NL-318386/E-104275/EL-409415 & Below
    COVER
    SN# M-018820/NL-318386/E-104275/EL-409415 & Below
  • 10
    10-82522M SCREW
    SCREW
  • 11
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 12
    10-41889M SCREW, (M3 x 5)
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    SCREW, (M3 x 5)
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 12
    10-813484M SCREW
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    SCREW
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • 13
    11-82537M NUT
    SN# M-005226/ML-305751/E-101141/EL-403151 & Up
    NUT
    SN# M-005226/ML-305751/E-101141/EL-403151 & Up
  • 14
    27-80757 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 15
    10-827043M BOLT
    BOLT
  • 16
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • -
    27-96658M GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • -
    27-84744M GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
