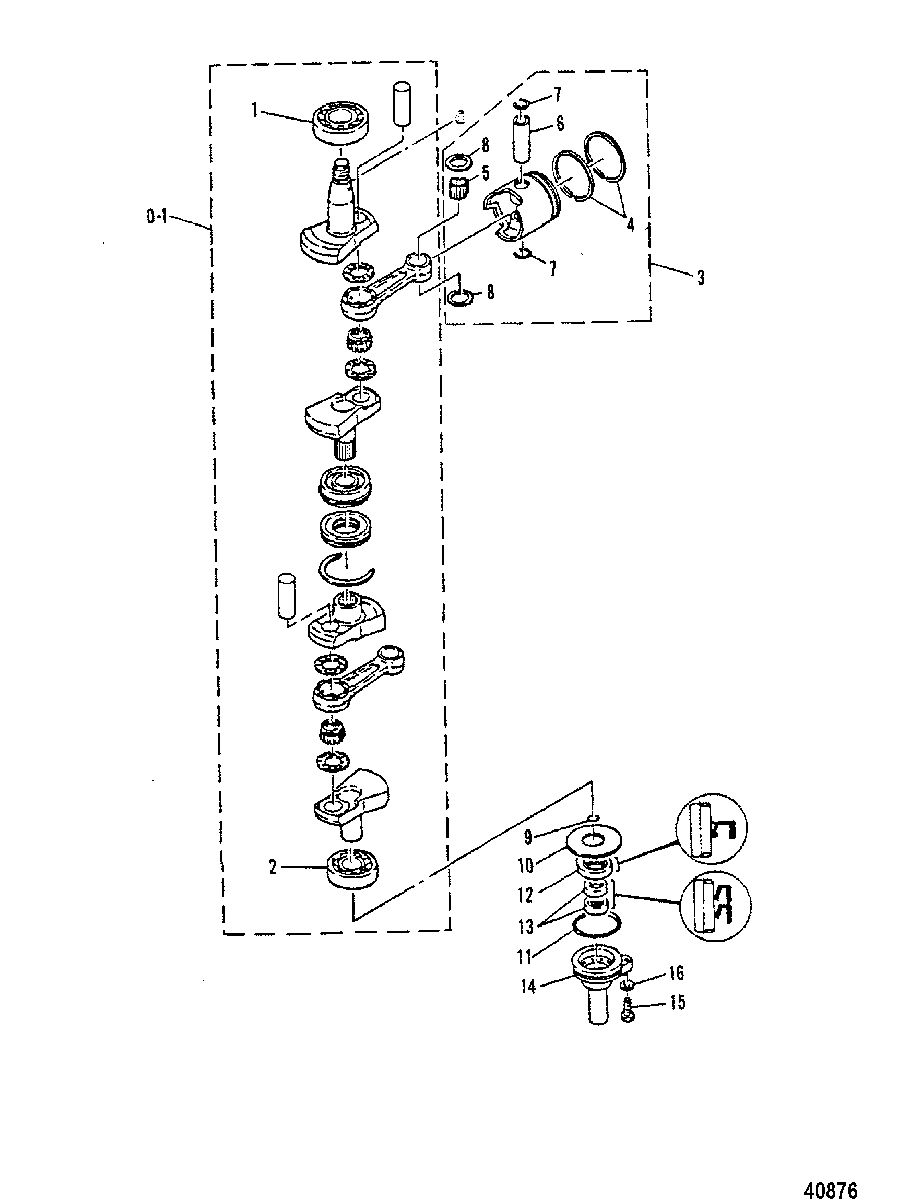

CRANKSHAFT AND PISTON для Mariner - 30A 689-000366 THRU 022058

  • №
    Артикул
    Название
  • 0-1
    463-9068M CRANKSHAFT ASSEMBLY
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    CRANKSHAFT ASSEMBLY
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 0-1
    463-9068M CRANKSHAFT ASSEMBLY
    SN# M-007186/ML-308701/E-101516/EL-404001 THRU M-018820/ML-318386/E-104275/EL-409415
    CRANKSHAFT ASSEMBLY
    SN# M-007186/ML-308701/E-101516/EL-404001 THRU M-018820/ML-318386/E-104275/EL-409415
  • 0-1
    463-7195M CRANKSHAFT ASSEMLBY
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    CRANKSHAFT ASSEMLBY
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 1
    30-96659T BEARING, UPPER
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    BEARING, UPPER
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 1
    30-84745M BEARING, UPPER
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    BEARING, UPPER
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 2
    30-82307T BEARING, LOWER
    BEARING, LOWER
  • 3
    761-8484M PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 3
    761-8485T PISTON ASSEMBLY
    (1ST OVERSIZE-72.25 MM)
    PISTON ASSEMBLY
    (1ST OVERSIZE-72.25 MM)
  • 3
    761-8486T PISTON ASSEMBLY
    (2ND OVERSIZE-72.50 MM)
    PISTON ASSEMBLY
    (2ND OVERSIZE-72.50 MM)
  • 4
    39-14235T RING SET, Piston
    (STANDARD)
    RING SET, Piston
    (STANDARD)
  • 4
    39-84747T RING SET, Piston
    (1ST OVERSIZE-72.25 MM)
    RING SET, Piston
    (1ST OVERSIZE-72.25 MM)
  • 4
    39-14236T RING SET, Piston
    (2ND OVERSIZE-72.50 MM)
    RING SET, Piston
    (2ND OVERSIZE-72.50 MM)
  • 5
    29-84452M BEARING
    BEARING
  • 6
    41-84749M PIN, Piston
    PIN, Piston
  • 7
    53-81264M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 8
    12-84750M WASHER
    WASHER
  • 9
    25-82268M O-RING
    O-RING
  • 10
    23-81842M SPACER
    SPACER
  • 11
    25-84089M O-RING
    O-RING
  • 12
    26-84752M SEAL, Oil, LOWER
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    SEAL, Oil, LOWER
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 12
    26-84752M SEAL, Oil, LOWER
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
    SEAL, Oil, LOWER
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
  • 13
    26-83347M SEAL, Oil, LOWER
    SEAL, Oil, LOWER
  • 14
    8M0059029 HOUSING, LOWER OIL SEAL
    HOUSING, LOWER OIL SEAL
  • 15
    10-94526M BOLT
    SN# M-010646/NL-311476/E-102356/EL-405456 & Up
    BOLT
    SN# M-010646/NL-311476/E-102356/EL-405456 & Up
  • 15
    10-82405M BOLT
    SN# M-010645/NL-311475/E-102355/EL-405455 & Below
    BOLT
    SN# M-010645/NL-311475/E-102355/EL-405455 & Below
  • 16
    12-82214M WASHER
    WASHER
  • -
    27-96658M GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • -
    27-84744M GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
