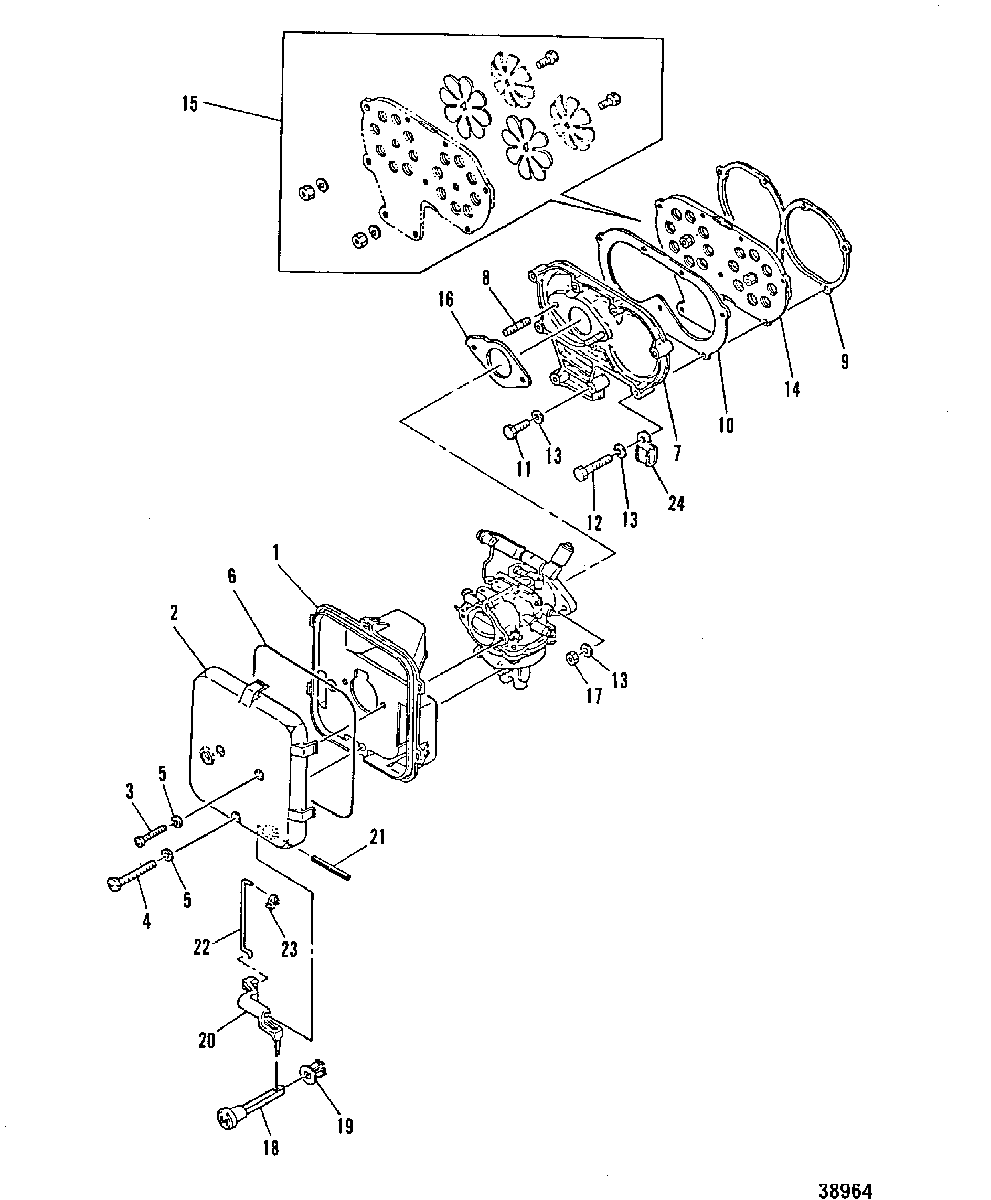

INTAKE MANIFOLD для Mariner - 30A 689-000366 THRU 022058

  • №
    Артикул
    Название
  • 1
    811031M COVER, Air Intake, INNER
    COVER, Air Intake, INNER
  • 2
    95682M COVER, Air Intake, OUTER
    COVER, Air Intake, OUTER
  • 3
    10-82522M SCREW
    SCREW
  • 4
    10-17148M SCREW
    SCREW
  • 5
    12-82211M WASHER
    WASHER
  • 6
    25-84757M O-RING
    O-RING
  • 7
    80570002 MANIFOLD
    MANIFOLD
  • 8
    16-91735M STUD
    STUD
  • 9
    27-80569M GASKET, REED VALVE
    GASKET, REED VALVE
  • 10
    27-80571M GASKET, INTAKE MANIFOLD
    GASKET, INTAKE MANIFOLD
  • 11
    10-82405M BOLT
    BOLT
  • 12
    10-83285M BOLT
    BOLT
  • 13
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 14
    811027M REED VALVE ASSEMBLY
    REED VALVE ASSEMBLY
  • 15
    34-84759M REED SET (REED STOPS - NOT INCLUDED)
    REED SET (REED STOPS - NOT INCLUDED)
  • 16
    27-80572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 17
    11-82389M NUT
    NUT
  • 18
    83960M KNOB, CHOKE
    KNOB, CHOKE
  • 19
    25-84760M GROMMET
    GROMMET
  • 20
    84761M LEVER, CHOKE
    LEVER, CHOKE
  • 21
    17-84762M PIN, ROLL
    PIN, ROLL
  • 22
    84763M ROD, CHOKE LINK
    ROD, CHOKE LINK
  • 23
    16333 BRACKET, CHOKE LINK ROD
    BRACKET, CHOKE LINK ROD
  • 24
    54-96348M CLAMP, WIRE
    CLAMP, WIRE
  • -
    27-96658M GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    GASKET SET, POWERHEAD
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • -
    27-84744M GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    GASKET SET, POWERHEAD
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
  • -
    811038M REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
