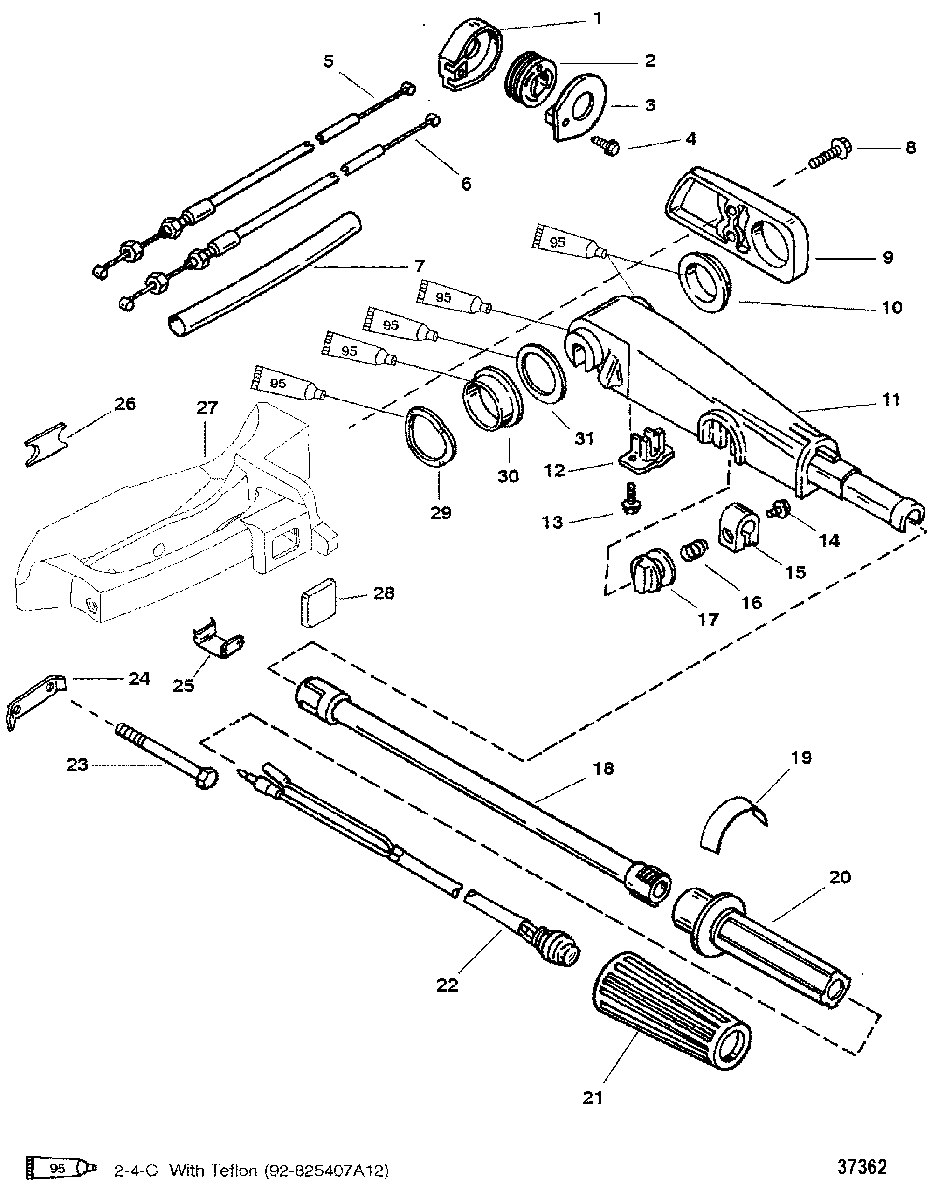

TILLER HANDLE для Mariner - 30 (2 CYL.) 9854537 THRU 0P016999

№

Артикул

Название
1

822148A1 COVER KIT

COVER KIT
2

822150 PULLEY

PULLEY
3

NSS NOT SOLD SEPARATE, CASE (PART OF REF #1)

NOT SOLD SEPARATE, CASE (PART OF REF #1)
4

10-878608 SCREW, (#10-16 x .500) (SELF TAP)

SCREW, (#10-16 x .500) (SELF TAP)
5

432425 CABLE

CABLE
6

432427 CABLE

CABLE
7

85-960099 SLEEVE, (12.00 Inches)

SLEEVE, (12.00 Inches)
8

10-82526225 SCREW, (M8 x 25 MM) (HEX FLANGE HEAD)

SCREW, (M8 x 25 MM) (HEX FLANGE HEAD)
9

8M0072298 COVER
(BLACK)

COVER
(BLACK)
9

822407F2 COVER
(GRAY)

COVER
(GRAY)
10

23-821477 BUSHING

BUSHING
11

822325T1 ARM, Steering Handle
(BLACK)

ARM, Steering Handle
(BLACK)
11

822325T1 ARM, Steering Handle
(GRAY)

ARM, Steering Handle
(GRAY)
12

822441 RETAINER

RETAINER
13

10-82239312 SCREW, (M5 x 12) (HEX FLANGE HEAD)

SCREW, (M5 x 12) (HEX FLANGE HEAD)
14

10-4000330 SCREW, (M6 x 25) ( HEX HEAD CAP)

SCREW, (M6 x 25) ( HEX HEAD CAP)
15

892995 LOCK, Throttle

LOCK, Throttle
16

24-96203 SPRING

SPRING
17

821972T KNOB, Throttle

KNOB, Throttle
18

821463T01 TILLER TUBE

TILLER TUBE
19

37-8242004 DECAL
(TURTLE/RABBIT)

DECAL
(TURTLE/RABBIT)
19

37-8242002 DECAL
(SLOW/FAST)

DECAL
(SLOW/FAST)
20

821465 HANDLE, Throttle

HANDLE, Throttle
21

99589003 GRIP

GRIP
22

87-8M0104611 SWITCH, Stop

SWITCH, Stop
23

10-82484890 SCREW, (M10 x 90) (HEX HEAD CAP)

SCREW, (M10 x 90) (HEX HEAD CAP)
24

14-8M0009820 TAB WASHER

TAB WASHER
25

823687 CLIP

CLIP
26

826658 BUMPER

BUMPER
27

821455A4 BRACKET, Tiller
(BLACK)

BRACKET, Tiller
(BLACK)
27

821455A4 BRACKET, Tiller
(GRAY)

BRACKET, Tiller
(GRAY)
28

19-17230 PLUG

PLUG
29

13-826792 WAVE WASHER

WAVE WASHER
30

23-821477 BUSHING

BUSHING
31

12-827314 WASHER

WASHER
