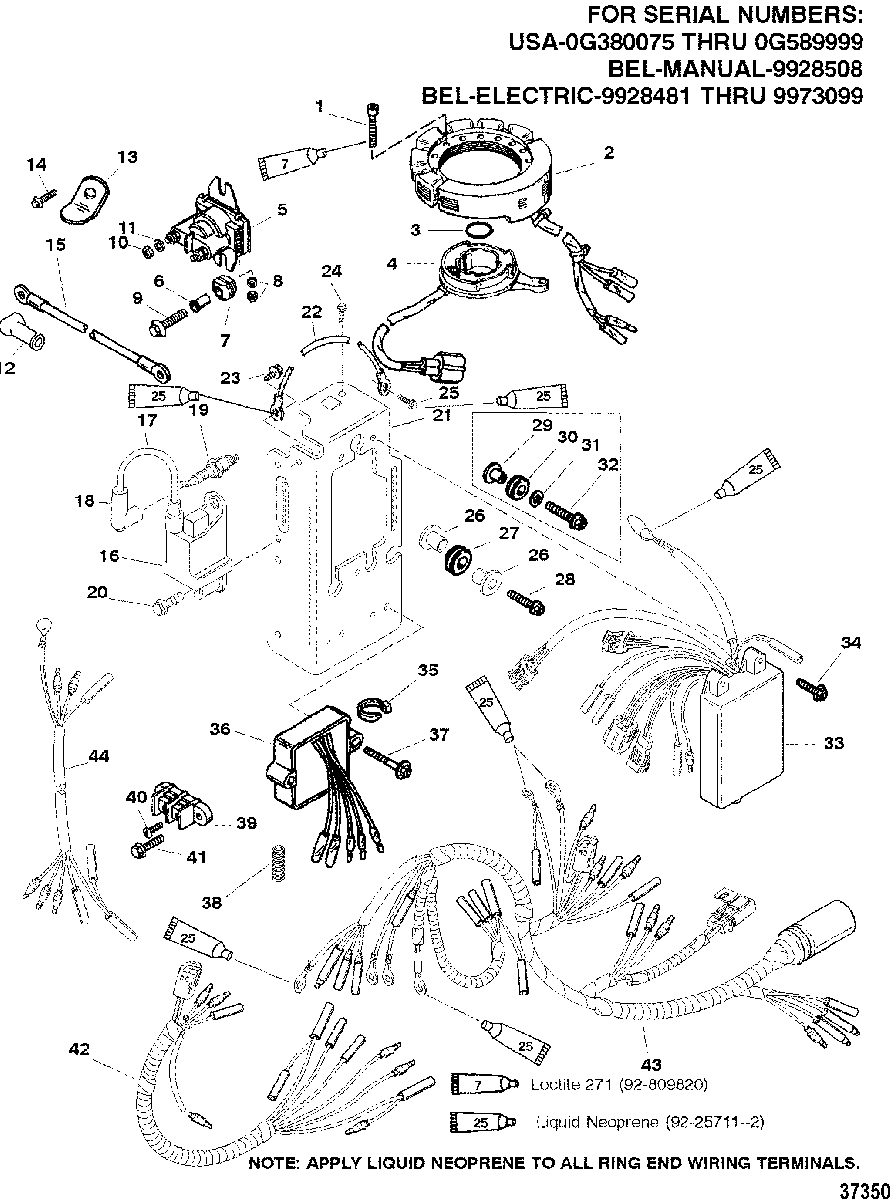

ELECTRICAL COMPONENTS(2) для Mariner - 30 (2 CYL.) 9854537 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    10-4013930 SCREW, (M5 x 30)
    MANUAL
    SCREW, (M5 x 30)
    MANUAL
  • 2
    398-832074A11 STATOR
    MANUAL
    STATOR
    MANUAL
  • 3
    25-62457 O-RING
    MANUAL
    O-RING
    MANUAL
  • 4
    99021A14 TRIGGER
    MANUAL
    TRIGGER
    MANUAL
  • 5
    89-850187T1 SOLENOID ASSEMBLY
    ELECTRIC
    SOLENOID ASSEMBLY
    ELECTRIC
  • 6
    23-818968 BUSHING
    ELECTRIC
    BUSHING
    ELECTRIC
  • 7
    25-818967 GROMMET
    ELECTRIC
    GROMMET
    ELECTRIC
  • 8
    11-26419 NUT, (#8-32) Brass
    ELECTRIC
    NUT, (#8-32) Brass
    ELECTRIC
  • 9
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    ELECTRIC
    SCREW, (M6 x 25) Stainless Steel
    ELECTRIC
  • 10
    11-64015 NUT, (.250-20)
    ELECTRIC
    NUT, (.250-20)
    ELECTRIC
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel
    ELECTRIC
    LOCKWASHER, (.250) Stainless Steel
    ELECTRIC
  • 12
    85-830233 BOOT, Insulator - Red
    ELECTRIC
    BOOT, Insulator - Red
    ELECTRIC
  • 13
    8275101 RETAINER (ELECTRIC HANDLE)
    RETAINER (ELECTRIC HANDLE)
  • 14
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 15
    84-88439A4 CABLE ASSEMBLY, Battery - Negative (ELECTRIC)
    CABLE ASSEMBLY, Battery - Negative (ELECTRIC)
  • 16
    827509T7 CDM ASSEMBLY
    CDM ASSEMBLY
  • 17
    84-821945A61 CABLE ASSEMBLY, Hi Tension
    CABLE ASSEMBLY, Hi Tension
  • 18
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 19
    33-816737Q SPARK PLUG (NGK# BP8H-N-10)
    SPARK PLUG (NGK# BP8H-N-10)
  • 19
    33-816837Q SPARK PLUG (NGK#BPZ-8H-N-10)
    SPARK PLUG (NGK#BPZ-8H-N-10)
  • 20
    10-82129116 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 21
    8302361 PLATE, Electrical
    PLATE, Electrical
  • 22
    84-86322A32 CABLE ASSEMBLY (MANUAL)
    CABLE ASSEMBLY (MANUAL)
  • 23
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 24
    10-82239312 SCREW, (M5 x 12) (ELECTRIC)
    SCREW, (M5 x 12) (ELECTRIC)
  • 25
    10-81893412 SCREW, (M8 x 12) (MANUAL)
    SCREW, (M8 x 12) (MANUAL)
  • 26
    23-8318701 BUSHING
    DESIGN I
    BUSHING
    DESIGN I
  • 27
    25-822002 GROMMET
    DESIGN I
    GROMMET
    DESIGN I
  • 28
    10-40011130 SCREW, (M6 x 30) Stainless Steel
    DESIGN I
    SCREW, (M6 x 30) Stainless Steel
    DESIGN I
  • 29
    23-831870 BUSHING, Flanged
    DESIGN II
    BUSHING, Flanged
    DESIGN II
  • 30
    25-822002 GROMMET
    DESIGN II
    GROMMET
    DESIGN II
  • 31
    12-831869 WASHER
    DESIGN II
    WASHER
    DESIGN II
  • 32
    10-40011131 SCREW, (M6 x 35) Stainless Steel
    DESIGN II
    SCREW, (M6 x 35) Stainless Steel
    DESIGN II
  • 33
    823251A6 TPM ASSEMBLY
    TPM ASSEMBLY
  • 34
    10-82239320 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 35
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 36
    8M0084173 REGULATOR, Voltage
    ELECTRIC
    REGULATOR, Voltage
    ELECTRIC
  • 37
    10-82129135 SCREW, (M6 x 35)
    ELECTRIC
    SCREW, (M6 x 35)
    ELECTRIC
  • 38
    32-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
  • 39
    86-638131 TERMINAL BLOCK
    MANUAL
    TERMINAL BLOCK
    MANUAL
  • 40
    10-48408 SCREW, (#10-16 x .500)
    MANUAL
    SCREW, (#10-16 x .500)
    MANUAL
  • 41
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 42
    84-830575A2 HARNESS ASSEMBLY, Engine
    (MANUAL)
    HARNESS ASSEMBLY, Engine
    (MANUAL)
  • 43
    84-830574A2 HARNESS ASSEMBLY, Engine
    (ELECTRIC)
    HARNESS ASSEMBLY, Engine
    (ELECTRIC)
  • 44
    84-852375A4 HARNESS ASSEMBLY
    (ELECTRIC)
    HARNESS ASSEMBLY
    (ELECTRIC)
  • -
    808569T02 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
