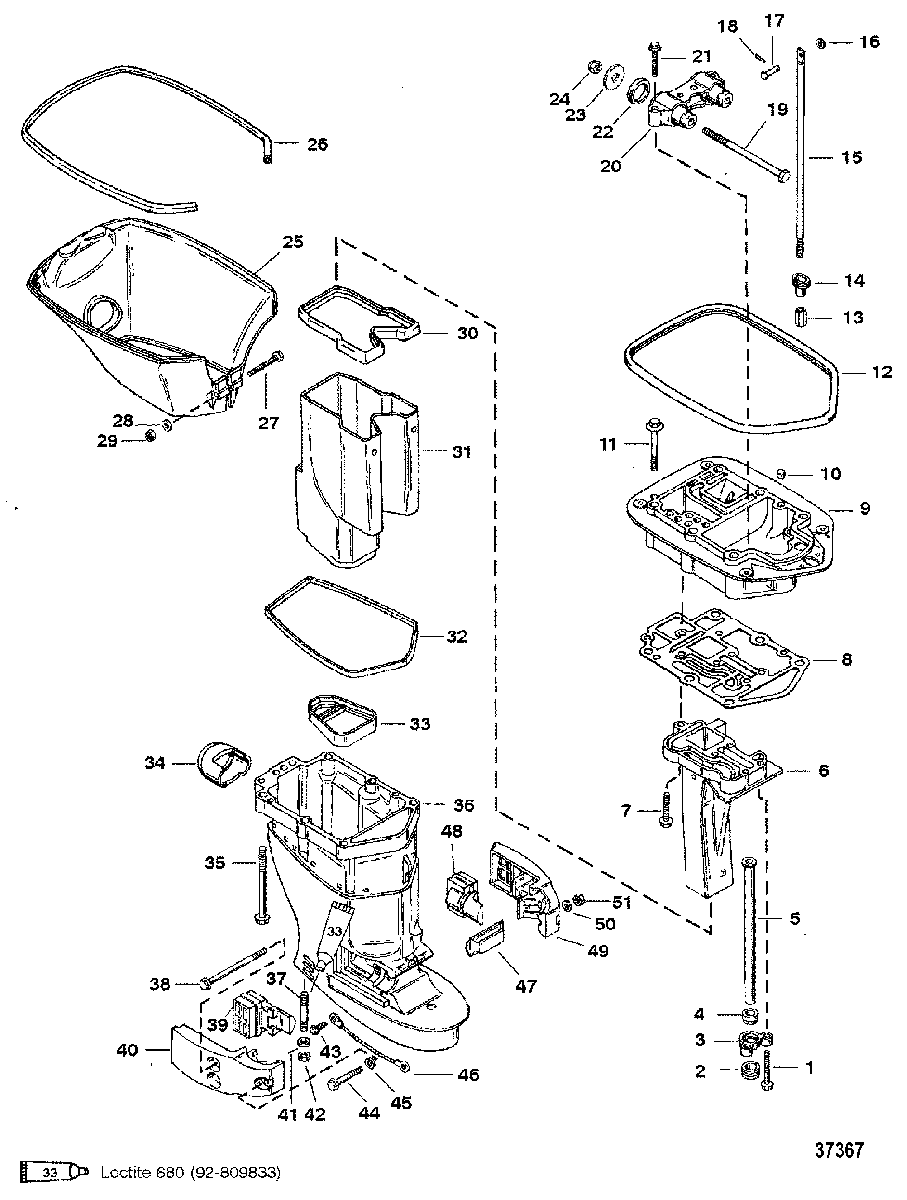

DRIVESHAFT HOUSING для Mariner - 30 (2 CYL.) 9854537 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    10-40011155 SCREW, (M8 x 55) Stainless Steel
    SCREW, (M8 x 55) Stainless Steel
  • 2
    25-93221002 GROMMET
    GROMMET
  • 3
    99019 CLAMP
    CLAMP
  • 4
    42941001 SEAL, Water Tube
    SEAL, Water Tube
  • 5
    32-8M0042795 TUBE, Water
    (SHORT)
    TUBE, Water
    (SHORT)
  • 5
    32-8M0042794 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 6
    8M0046061 TUBE, Exhaust
    TUBE, Exhaust
  • 7
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 8
    27-8M0000821 GASKET, Driveshaft Housing
    GASKET, Driveshaft Housing
  • 9
    821439T4 ADAPTOR PLATE ASSEMBLY
    SN# USA 0G590000/BEL 9973100 & Up
    ADAPTOR PLATE ASSEMBLY
    SN# USA 0G590000/BEL 9973100 & Up
  • 9
    821439T4 ADAPTOR PLATE ASSEMBLY
    (BLACK) SN# USA 0G589999/BEL 9973099 & Below
    ADAPTOR PLATE ASSEMBLY
    (BLACK) SN# USA 0G589999/BEL 9973099 & Below
  • 9
    821439T4 ADAPTOR PLATE ASSEMBLY
    (GRAY) SN# USA 0G589999/BEL 9973099 & Up
    ADAPTOR PLATE ASSEMBLY
    (GRAY) SN# USA 0G589999/BEL 9973099 & Up
  • 10
    17-23784 PIN, Dowel
    PIN, Dowel
  • 11
    10-4010875 SCREW, (M10 x 75) Hex Flange - Stainless Steel
    SCREW, (M10 x 75) Hex Flange - Stainless Steel
  • 12
    8M0043148 SEAL, Bottom Cowl
    SEAL, Bottom Cowl
  • 13
    822419 COUPLER
    COUPLER
  • 14
    25-822408001 GROMMET
    GROMMET
  • 15
    880042 SHIFT SHAFT (UPPER)
    SHIFT SHAFT (UPPER)
  • 16
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 17
    17-822417 PIN
    PIN
  • 18
    18-210711 COTTER PIN
    COTTER PIN
  • 19
    8M0000520 SCREW, (M12 x 162)
    SCREW, (M12 x 162)
  • 20
    1400-8M4501487 MOUNT
    MOUNT
  • 21
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 22
    12-32834 WASHER, Neoprene
    WASHER, Neoprene
  • 23
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 24
    11-896963 NUT, (M12)
    NUT, (M12)
  • 25
    821512A4 TRIM COVER
    (BLACK)
    TRIM COVER
    (BLACK)
  • 25
    821512A4 TRIM COVER
    (GRAY)
    TRIM COVER
    (GRAY)
  • 26
    8M0043155 BUMPER
    BUMPER
  • 27
    10-826173 SCREW, (M5 x .8 x 60)
    SCREW, (M5 x .8 x 60)
  • 28
    12-73288 WASHER, (.220 x .500 x .030) Stainless Steel
    WASHER, (.220 x .500 x .030) Stainless Steel
  • 29
    11-400263 NUT, (M5)
    NUT, (M5)
  • -
    27-822420A94 GASKET SET
    GASKET SET
