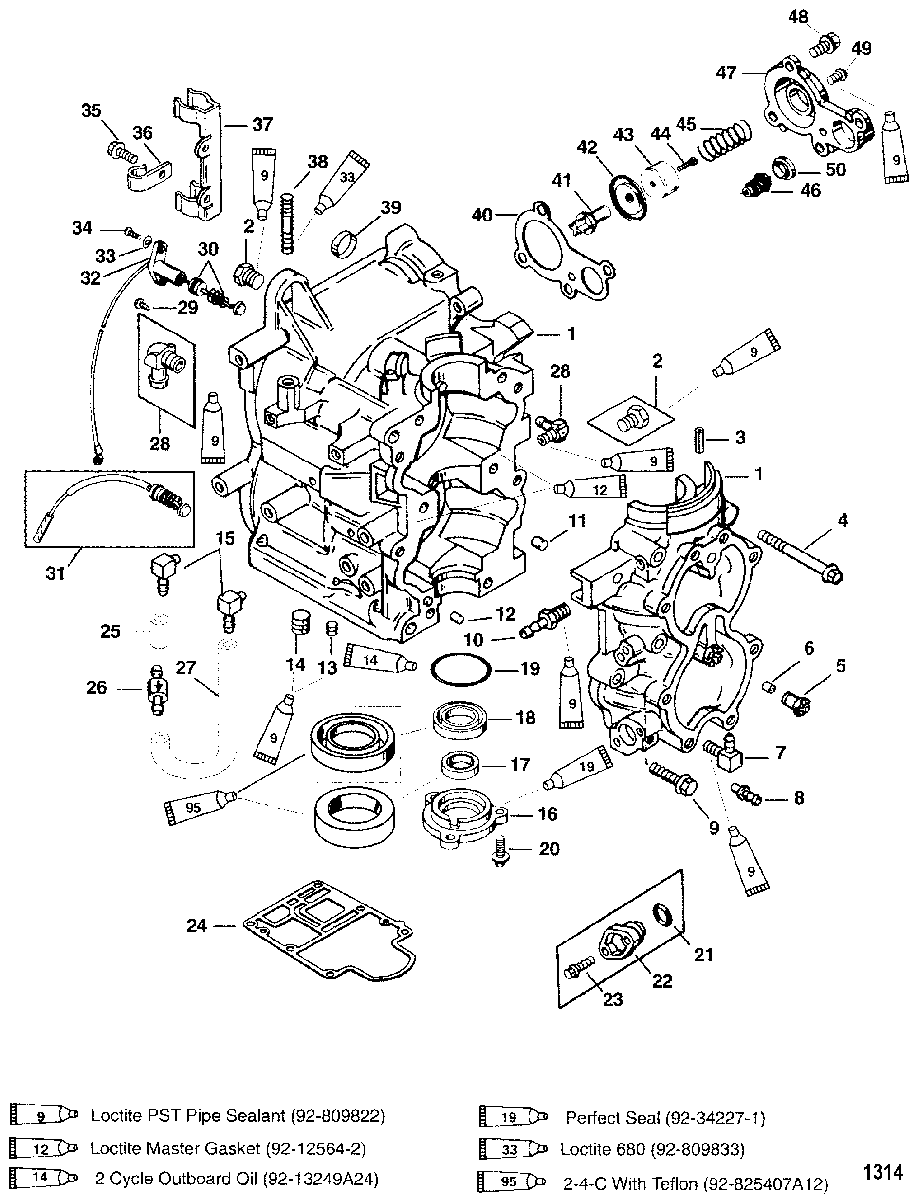

CYLINDER BLOCK для Mariner - 30 (2 CYL.) 9854537 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    890-821358T5 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    22-328022 PLUG, Pipe (.125-27) (HEX HEAD-BRASS)
    PLUG, Pipe (.125-27) (HEX HEAD-BRASS)
  • 3
    17-824864 PIN, Roll (USE WHERE APPLICABLE)
    PIN, Roll (USE WHERE APPLICABLE)
  • 4
    10-81742780 SCREW, (M8 x 80) (HEX FLANGE HEAD)
    SCREW, (M8 x 80) (HEX FLANGE HEAD)
  • 5
    812888A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 6
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 7
    21-8282182 CHECK VALVE
    CHECK VALVE
  • 8
    22-56759 CONNECTOR (BARBED-ELECTRIC)
    CONNECTOR (BARBED-ELECTRIC)
  • 9
    10-81742740 SCREW, (M8 x 40) (HEX FLANGE HEAD)
    SCREW, (M8 x 40) (HEX FLANGE HEAD)
  • 10
    22-85439001 CONNECTOR, Male
    CONNECTOR, Male
  • 11
    17-8M0084653 PIN, Center Main
    PIN, Center Main
  • 12
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 13
    22-390721 PLUG, (1/8 Inch Brass) (1/8 IN.-BRASS)
    PLUG, (1/8 Inch Brass) (1/8 IN.-BRASS)
  • 14
    22-185981 PIPE PLUG (3/8-18)
    PIPE PLUG (3/8-18)
  • 15
    22-15133 FITTING
    FITTING
  • 16
    1171-9812A8 END CAP
    END CAP
  • 17
    26-828932 SEAL, Oil
    SEAL, Oil
  • 18
    26-41953 SEAL
    SEAL
  • 19
    25-896523 O-RING, (2.175 x .175)
    O-RING, (2.175 x .175)
  • 20
    10-81742720 SCREW, (M8 x 20) (HEX FLANGE HEAD)
    SCREW, (M8 x 20) (HEX FLANGE HEAD)
  • -
    27-822420A94 GASKET SET
    GASKET SET
  • -
    808569T02 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
