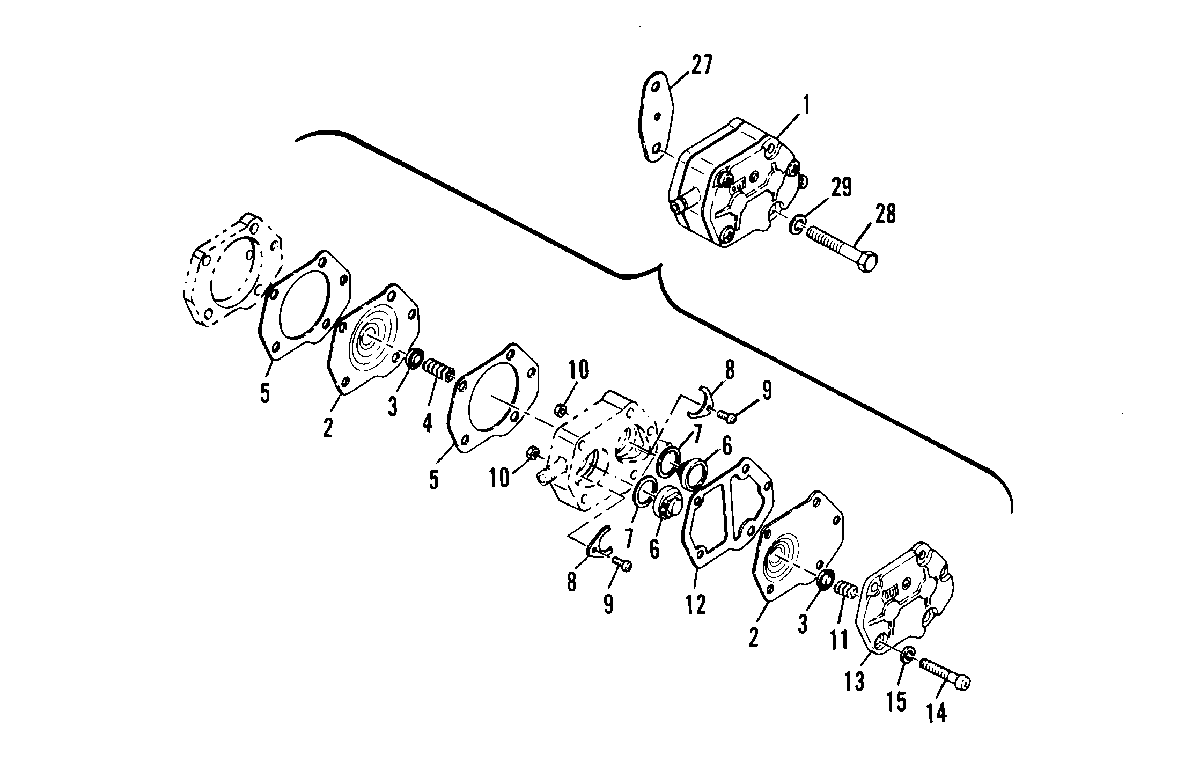

FUEL PUMP для Mariner - 28 664-25801 AND UP

  • №
    Артикул
    Название
  • 1
    43113T FUEL PUMP ASS'Y
    SERIAL 00000000-00151345
    FUEL PUMP ASS'Y
    SERIAL 00000000-00151345
  • 2
    80606M DIAPHRAGM
    SERIAL 00000000-00151345
    DIAPHRAGM
    SERIAL 00000000-00151345
  • 3
    80611M PLATE, SPRING GUIDE
    SERIAL 00000000-00151345
    PLATE, SPRING GUIDE
    SERIAL 00000000-00151345
  • 4
    24-80610M SPRING
    SERIAL 00000000-00151345
    SPRING
    SERIAL 00000000-00151345
  • 5
    27-80613 GASKET, BODY TO BASE
    SERIAL 00000000-00151345
    GASKET, BODY TO BASE
    SERIAL 00000000-00151345
  • 6
    21-80608M CHECK VALVE
    SERIAL 00000000-00151345
    CHECK VALVE
    SERIAL 00000000-00151345
  • 7
    27-80612M GASKET, CHECK VALVE
    SERIAL 00000000-00151345
    GASKET, CHECK VALVE
    SERIAL 00000000-00151345
  • 8
    80609M RETAINER, CHECK VALVE
    SERIAL 00000000-00151345
    RETAINER, CHECK VALVE
    SERIAL 00000000-00151345
  • 9
    10-82511M SCREW
    SERIAL 00000000-00151345
    SCREW
    SERIAL 00000000-00151345
  • 10
    11-82537M NUT
    SERIAL 00000000-00151345
    NUT
    SERIAL 00000000-00151345
  • 11
    24-80615M SPRING
    SERIAL 00000000-00151345
    SPRING
    SERIAL 00000000-00151345
  • 12
    27-80614 GASKET, BODY TO COVER
    SERIAL 00000000-00151345
    GASKET, BODY TO COVER
    SERIAL 00000000-00151345
  • 13
    80607M COVER
    SERIAL 00000000-00151345
    COVER
    SERIAL 00000000-00151345
  • 14
    10-82522M SCREW
    SERIAL 00000000-00151345
    SCREW
    SERIAL 00000000-00151345
  • 15
    13-82186M WASHER, LOCK
    SERIAL 00000000-00151345
    WASHER, LOCK
    SERIAL 00000000-00151345
  • 27
    27-80757 GASKET, FUEL PUMP TO CRANKCASE
    GASKET, FUEL PUMP TO CRANKCASE
  • 28
    10-827043M BOLT
    BOLT
  • 29
    12-82213M WASHER
    WASHER
