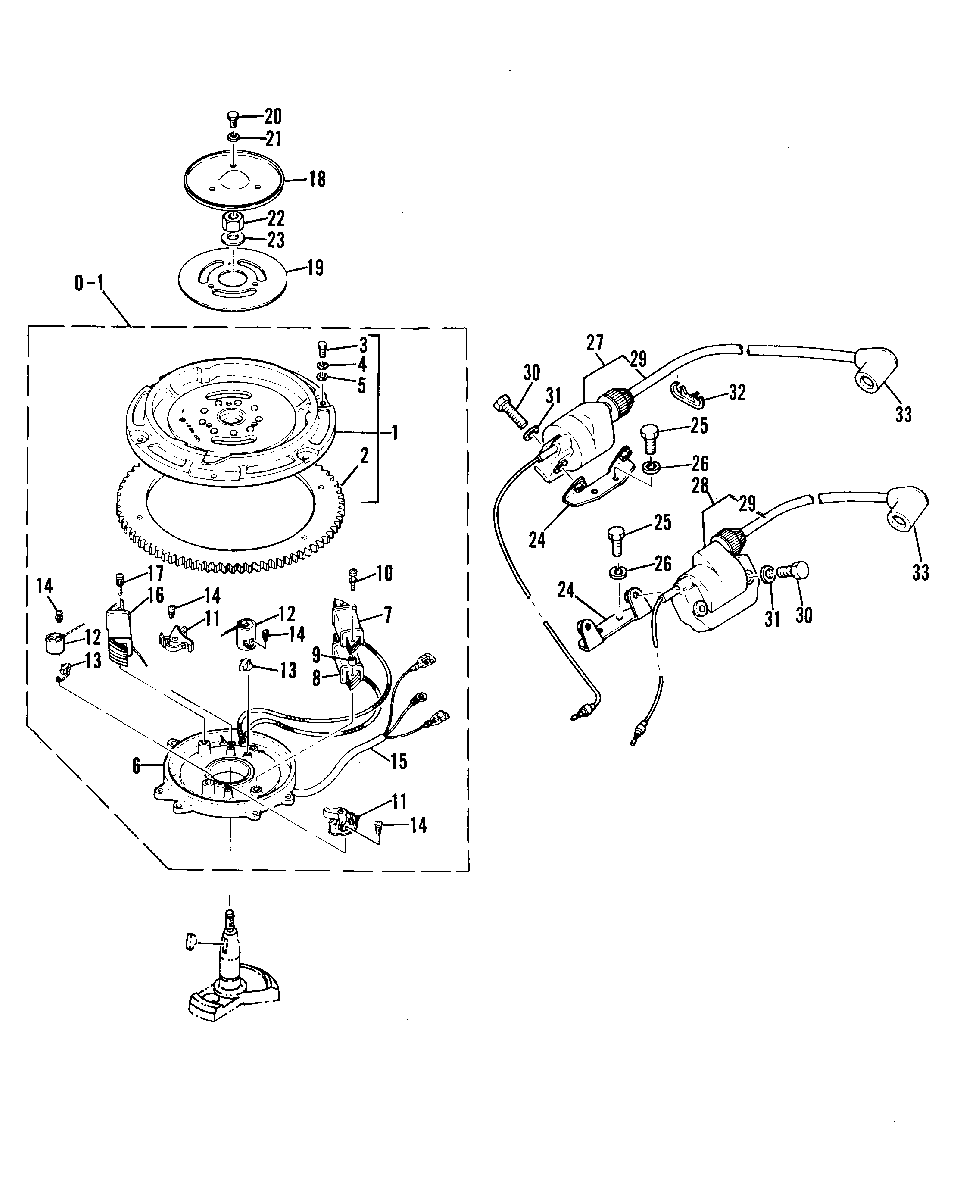

FLYWHEEL MAGNETO для Mariner - 28 664-25801 AND UP

  • №
    Артикул
    Название
  • 0-1
    253-6981M FLYWHEEL MAG ASS'Y (MANUAL START MODEL)
    SERIAL EL570101-0Z999999
    FLYWHEEL MAG ASS'Y (MANUAL START MODEL)
    SERIAL EL570101-0Z999999
  • 0-1
    253-6799M FLYWHEEL MAG ASS'Y (MANUAL START MODEL)
    SERIAL 00000000-00150100
    FLYWHEEL MAG ASS'Y (MANUAL START MODEL)
    SERIAL 00000000-00150100
  • 0-1
    253-6981M FLYWHEEL MAG ASS'Y (ELECTRIC START MODEL)
    SERIAL EL570101-0Z999999
    FLYWHEEL MAG ASS'Y (ELECTRIC START MODEL)
    SERIAL EL570101-0Z999999
  • 0-1
    80683M FLYWHEEL MAG ASS'Y (ELECTRIC START MODEL)
    SERIAL 00000000-00150100
    FLYWHEEL MAG ASS'Y (ELECTRIC START MODEL)
    SERIAL 00000000-00150100
  • 1
    83312M FLYWHEEL ASS'Y (MANUAL START MODEL)
    SERIAL EL570101-0Z999999
    FLYWHEEL ASS'Y (MANUAL START MODEL)
    SERIAL EL570101-0Z999999
  • 1
    253-7170M FLYWHEEL ASS'Y (MANUAL START MODEL)
    SERIAL 00000000-00150100
    FLYWHEEL ASS'Y (MANUAL START MODEL)
    SERIAL 00000000-00150100
  • 1
    83312M FLYWHEEL ASS'Y (ELECTRIC START MODEL)
    SERIAL EL570101-0Z999999
    FLYWHEEL ASS'Y (ELECTRIC START MODEL)
    SERIAL EL570101-0Z999999
  • 1
    80687M FLYWHEEL ASS'Y (ELECTRIC START MODEL)
    SERIAL 00000000-00150100
    FLYWHEEL ASS'Y (ELECTRIC START MODEL)
    SERIAL 00000000-00150100
  • 2
    43-80711M RING GEAR(ELECTRIC START MODEL)
    RING GEAR(ELECTRIC START MODEL)
  • 3
    10-82404M BOLT (ELECTRIC START MODEL)
    BOLT (ELECTRIC START MODEL)
  • 4
    13-82212M WASHER, LOCK (ELECTRIC START MODEL)
    WASHER, LOCK (ELECTRIC START MODEL)
  • 5
    12-82213M WASHER (ELECTRIC START MODEL)
    WASHER (ELECTRIC START MODEL)
  • 6
    80684M BASE, MAGNETO
    BASE, MAGNETO
  • 7
    83313M PRIMARY IGNITION COIL, #1 CYL
    SERIAL EL570101-0Z999999
    PRIMARY IGNITION COIL, #1 CYL
    SERIAL EL570101-0Z999999
  • 7
    80551M PRIMARY IGNITION COIL, #1 CYL
    SERIAL 00000000-00150100
    PRIMARY IGNITION COIL, #1 CYL
    SERIAL 00000000-00150100
  • 8
    83314M PRIMARY IGNITION COIL, #2 CYL
    SERIAL EL570101-0Z999999
    PRIMARY IGNITION COIL, #2 CYL
    SERIAL EL570101-0Z999999
  • 8
    80552M PRIMARY IGNITION COIL, #2 CYL
    SERIAL 00000000-00150100
    PRIMARY IGNITION COIL, #2 CYL
    SERIAL 00000000-00150100
  • 9
    23-80555M SPACER, COILE
    SPACER, COILE
  • 10
    10-80556M SCREW W/WASHER
    SCREW W/WASHER
  • 11
    80930M BREAKER ASS'Y
    BREAKER ASS'Y
  • 12
    80558M CONDENSER
    CONDENSER
  • 13
    80025M LUBRICATOR
    LUBRICATOR
  • 14
    10-82500M SCREW W/WASHER
    SCREW W/WASHER
  • 15
    84-92594M LEAD WIRE
    LEAD WIRE
  • 16
    83315M LIGHTING COIL (SEE NOTE)
    SERIAL EL570101-0Z999999
    LIGHTING COIL (SEE NOTE)
    SERIAL EL570101-0Z999999
  • 16
    80553M LIGHTING COIL (SEE NOTE)
    SERIAL 00000000-00150100
    LIGHTING COIL (SEE NOTE)
    SERIAL 00000000-00150100
  • 17
    10-82522M SCREW W/WAWSHER
    SCREW W/WAWSHER
  • 18
    80688M COVER, FLYWHEEL
    COVER, FLYWHEEL
  • 19
    27-80690M GASKET, FLYWHEEL COVER
    GASKET, FLYWHEEL COVER
  • 20
    10-91772M BOLT, COVER ATTACHING
    BOLT, COVER ATTACHING
  • 21
    12-82213M WASHER, COVER BOLT
    WASHER, COVER BOLT
  • 22
    11-81770M NUT, FLYWHEEL ATTACHING
    NUT, FLYWHEEL ATTACHING
  • 23
    12-81814M WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 24
    81657M BRACKET, SECONDARY COIL
    BRACKET, SECONDARY COIL
  • 25
    10-826957M BOLT
    BOLT
  • 26
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 27
    81656M SECONDARY IGNITION COIL ASS'Y #1 CYL
    SECONDARY IGNITION COIL ASS'Y #1 CYL
  • 28
    83776M SECONDARY IGNITION COIL ASS'Y #2 CYL
    SECONDARY IGNITION COIL ASS'Y #2 CYL
  • 29
    84-82831M CORD, HIGH TENSION
    CORD, HIGH TENSION
  • 30
    10-82405M BOLT
    BOLT
  • 31
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 32
    82038M CLAMP, HIGH TENSION LEADS
    CLAMP, HIGH TENSION LEADS
  • 33
    85-63709A1 PLUG CAP ASS'Y
    PLUG CAP ASS'Y
  • 33
    85-815119M PLUG CAP ASS'Y (NOISE SUPPRESSOR)(OPT)
    PLUG CAP ASS'Y (NOISE SUPPRESSOR)(OPT)
