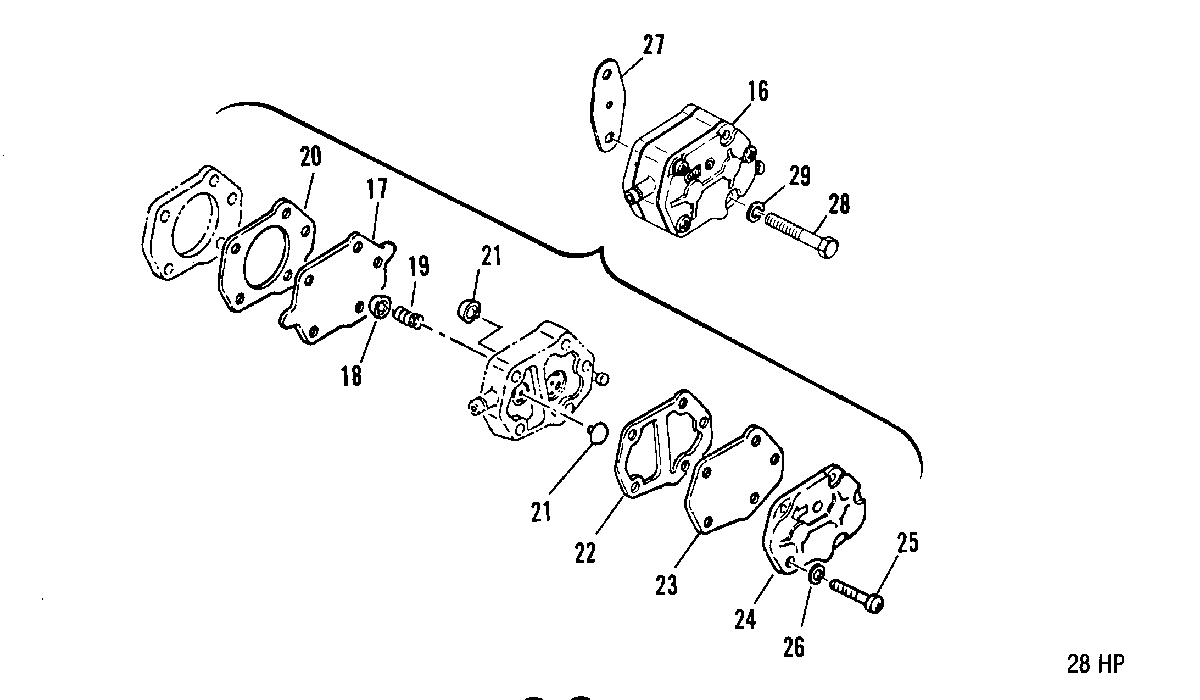

FUEL PUMP для Mariner - 28 664-25801 AND UP
-
№АртикулНазвание
-
1643113T FUEL PUMP ASS'Y
SERIAL 00151346-09999999FUEL PUMP ASS'Y
SERIAL 00151346-09999999 -
1780606M DIAPHGRAGM
SERIAL 00151346-09999999DIAPHGRAGM
SERIAL 00151346-09999999 -
1880611M PLATE, SPRING GUIDE
SERIAL 00151346-09999999PLATE, SPRING GUIDE
SERIAL 00151346-09999999 -
1924-80610M SPRING
SERIAL 00151346-09999999SPRING
SERIAL 00151346-09999999 -
2027-80613 GASKET, BODY TO BASE
SERIAL 00151346-09999999GASKET, BODY TO BASE
SERIAL 00151346-09999999 -
2121-84650M CHECK VALVE
SERIAL 00151346-09999999CHECK VALVE
SERIAL 00151346-09999999 -
2227-80614 GASKET, BODY TO COVER
SERIAL 00151346-09999999GASKET, BODY TO COVER
SERIAL 00151346-09999999 -
2384141M DIAPHGRAGM
SERIAL 00151346-09999999DIAPHGRAGM
SERIAL 00151346-09999999 -
2480607M COVER
SERIAL 00151346-09999999COVER
SERIAL 00151346-09999999 -
2510-82522M SCREW
SERIAL 00151346-09999999SCREW
SERIAL 00151346-09999999 -
2613-82186M WASHER, LOCK
SERIAL 00151346-09999999WASHER, LOCK
SERIAL 00151346-09999999 -
2727-80757 GASKET, FUEL PUMP TO CRANKCASEGASKET, FUEL PUMP TO CRANKCASE
-
2810-827043M BOLTBOLT
-
2912-82213M WASHERWASHER
