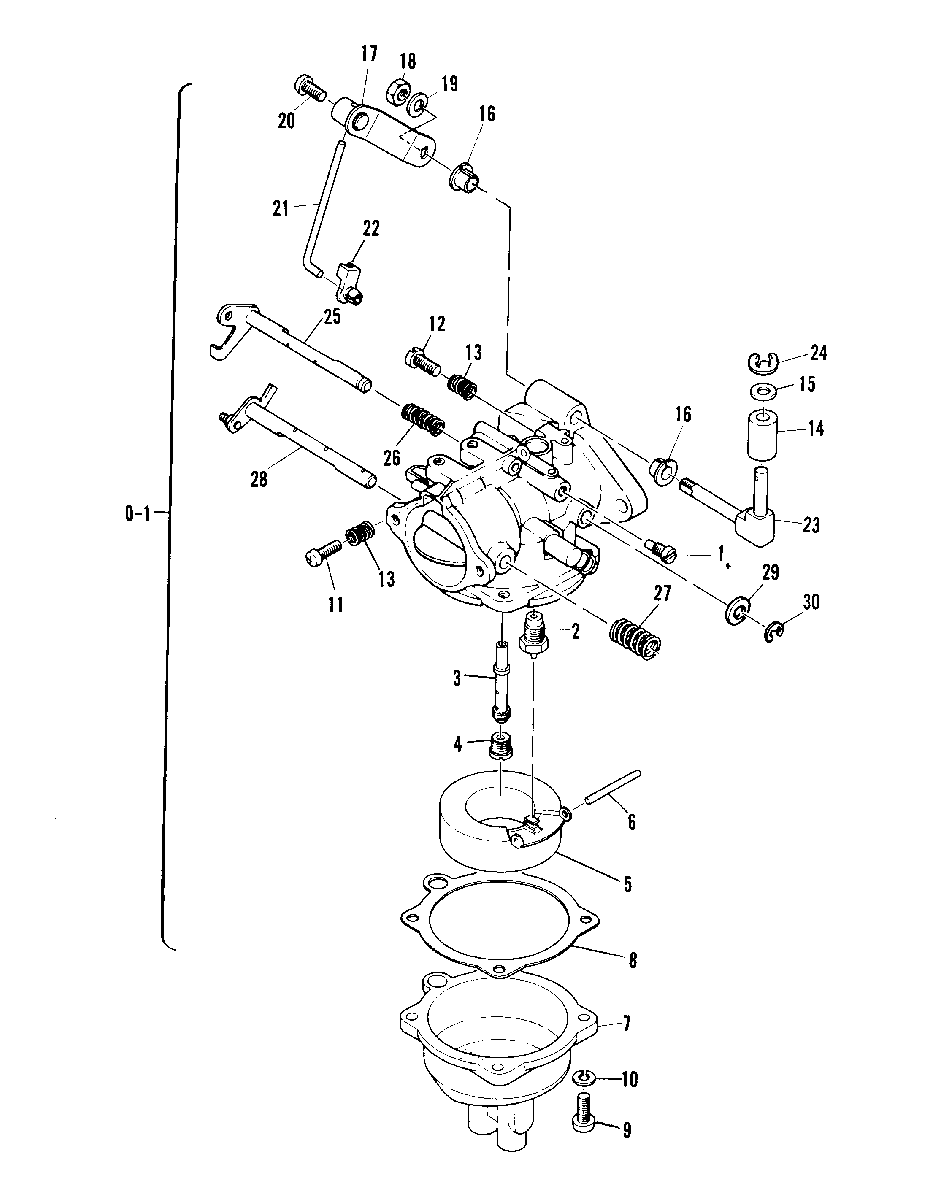

CARBURETOR для Mariner - 28 664-25801 AND UP

  • №
    Артикул
    Название
  • 0-1
    1383-6959M CARBURETOR ASS'Y
    SERIAL 00005306-09999999
    CARBURETOR ASS'Y
    SERIAL 00005306-09999999
  • 0-1
    1383-6850M CARBURETOR ASS'Y
    SERIAL 00000000-00005305
    CARBURETOR ASS'Y
    SERIAL 00000000-00005305
  • 1
    80578M JET, LOW SPEED (#60)
    JET, LOW SPEED (#60)
  • 2
    80593M INLET VALVE & SEAT
    INLET VALVE & SEAT
  • 3
    80576M NOZZLE, MAIN
    NOZZLE, MAIN
  • 4
    80582M JET, MAIN (#140)
    JET, MAIN (#140)
  • 5
    80591M FLOAT
    FLOAT
  • 6
    17-80592M PIN, FLOAT
    PIN, FLOAT
  • 7
    83200M FLOAT BOWL
    FLOAT BOWL
  • 8
    27-80590M GASKET, FLOAT BOWL
    GASKET, FLOAT BOWL
  • 9
    10-82515M SCREW
    SCREW
  • 10
    13-82206M WASHER, LOCK
    WASHER, LOCK
  • 11
    10-83509M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 12
    10-80573M SCREW, IDLE MIXTURE
    SCREW, IDLE MIXTURE
  • 13
    24-80575M SPRING, IDLE SCREW
    SPRING, IDLE SCREW
  • 14
    23-80220M BUSHING
    SERIAL 00000000-00010710
    BUSHING
    SERIAL 00000000-00010710
  • 14
    23-84454M BUSHING, THROTTLE SHAFT
    SERIAL 00010711-09999999
    BUSHING, THROTTLE SHAFT
    SERIAL 00010711-09999999
  • 15
    12-82209M WASHER
    WASHER
  • 16
    23-81941M BUSHING, THROTTLE SHAFT
    BUSHING, THROTTLE SHAFT
  • 17
    80622M LEVER, THROTTLE
    LEVER, THROTTLE
  • 18
    11-83763M NUT
    NUT
  • 19
    13-82186M WASHER, LOCK
    WASHER, LOCK
  • 20
    10-83112M SET SCREW, THROTTLE LEVER
    SET SCREW, THROTTLE LEVER
  • 21
    83160M LINK ROD, THROTTLE LEVER
    LINK ROD, THROTTLE LEVER
  • 22
    16333 SWIVEL, THROTTLE
    SWIVEL, THROTTLE
  • 23
    811037M SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 24
    53-82328M SNAP RING
    SNAP RING
  • 25
    83201M LEVER THROTTLE
    LEVER THROTTLE
  • 26
    24-80574M SPRING, THROTTLE VALVE
    SPRING, THROTTLE VALVE
  • 27
    24-83202M SPRING, CHOKE LEVER
    SPRING, CHOKE LEVER
  • 28
    83203M CHOKE LEVER
    SERIAL 00000000-00010710
    CHOKE LEVER
    SERIAL 00000000-00010710
  • 28
    84455M CHOKE LEVER
    SERIAL 00010711-09999999
    CHOKE LEVER
    SERIAL 00010711-09999999
  • 29
    12-84401M M-12-83204M
    M-12-83204M
  • 30
    53-83205M SNAP RING
    SNAP RING
  • 30
    84456M REPAIR KIT, CARBURETOR
    SERIAL 00005306-09999999
    REPAIR KIT, CARBURETOR
    SERIAL 00005306-09999999
