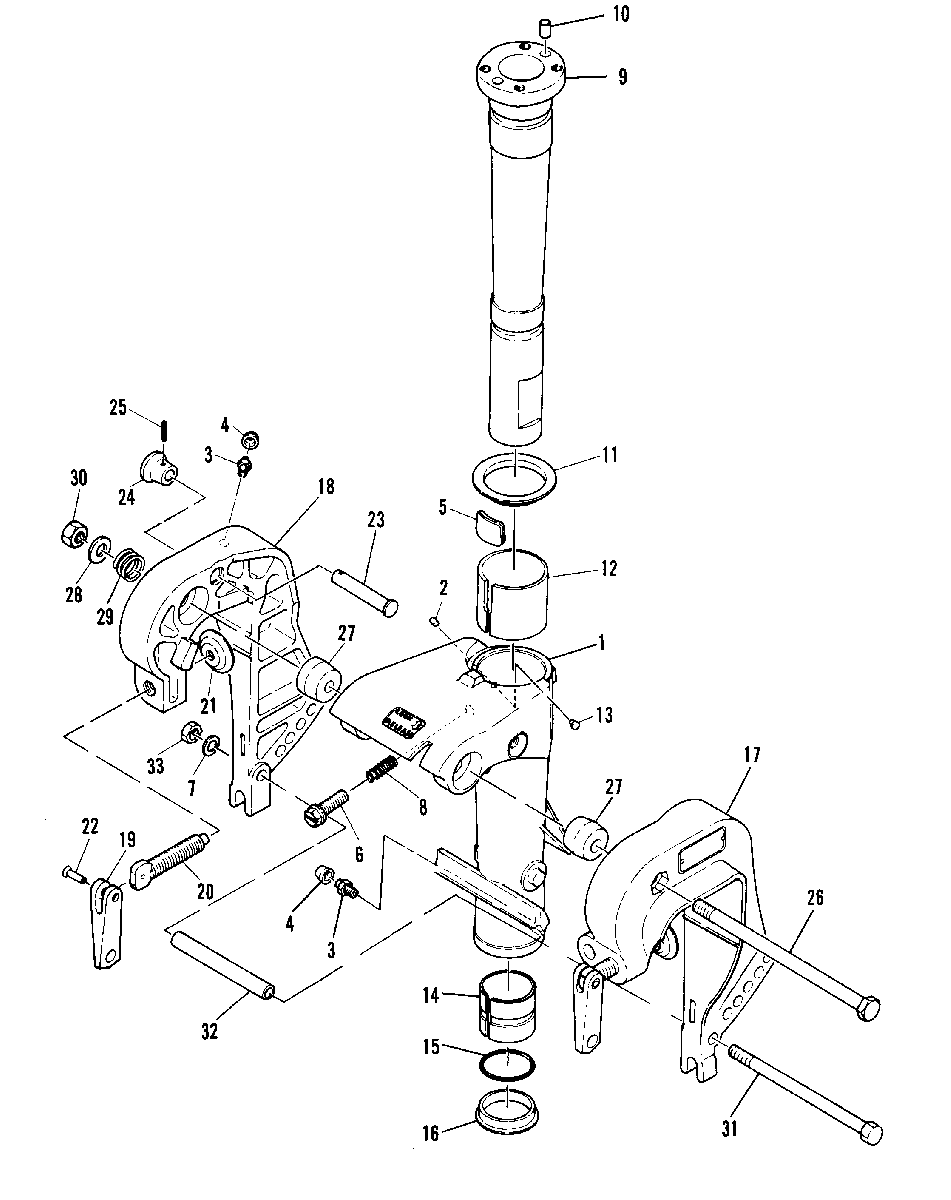

CLAMP AND SWIVEL BRACKET для Mariner - 28 664-25801 AND UP

  • №
    Артикул
    Название
  • 1
    1485-6796M SWIVEL BRACKET
    SWIVEL BRACKET
  • 2
    22-81917M PLUG
    PLUG
  • 3
    22-82369M FITTING, PIVOT SHAFT BUSHING, GREASE
    FITTING, PIVOT SHAFT BUSHING, GREASE
  • 4
    81439M CAP, GRTEASE FITTING
    CAP, GRTEASE FITTING
  • 5
    80633M P:LATE, FRICTION
    P:LATE, FRICTION
  • 6
    10-81754M SCREW
    SCREW
  • 7
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 8
    24-82088M SPRING, FRICTION PLATE SCREW
    SPRING, FRICTION PLATE SCREW
  • 9
    84833M SHAFT, STEERING PIVOT
    SHAFT, STEERING PIVOT
  • 10
    17-82368M PINK DOWEL
    PINK DOWEL
  • 11
    12-81873M COLLAR, THRUST & PIVOT SHAFT
    COLLAR, THRUST & PIVOT SHAFT
  • 12
    23-81964M BUSHING, PIVOT SHAFT-UPPER
    BUSHING, PIVOT SHAFT-UPPER
  • 13
    17-81887M PIN
    PIN
  • 14
    23-81959M BUSHING, PIVOT SHAFT-LOWER
    BUSHING, PIVOT SHAFT-LOWER
  • 15
    25-82274M O-RING, PIVOT SHAFT BUSHING
    O-RING, PIVOT SHAFT BUSHING
  • 16
    23-81961M COLLAR, THRUST-PIVOT SHAFT
    COLLAR, THRUST-PIVOT SHAFT
  • 17
    1484-6794M CLAMP BRACKET, PORT
    CLAMP BRACKET, PORT
  • 18
    1484-6795M CLAMP BRACKET, STARBOARD
    CLAMP BRACKET, STARBOARD
  • 19
    809959M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 20
    10-81756M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 21
    12-80638M PAD, TRANSOM CLAMP SCREW
    PAD, TRANSOM CLAMP SCREW
  • 22
    17-81888M PIN, ROLL
    PIN, ROLL
  • 23
    17-81150M SHAFT, TILT STOP
    SHAFT, TILT STOP
  • 24
    95426M KNOB, TILT STOP SHAFT
    KNOB, TILT STOP SHAFT
  • 25
    17-82148M PIN
    PIN
  • 26
    10-81146M BOLT
    BOLT
  • 27
    80639M MOUNT, RUBBER CLAMP BRACKET
    MOUNT, RUBBER CLAMP BRACKET
  • 28
    12-81806M WASHER
    WASHER
  • 29
    24-82101M SPRING
    SPRING
  • 30
    11-82395M NUT
    NUT
  • 31
    10-82924M BOLT, CLAMP BRACKET
    BOLT, CLAMP BRACKET
  • 32
    23-19108M SPACEER, CLAMP BRACKET STUD
    SPACEER, CLAMP BRACKET STUD
  • 33
    11-82382M NUT
    NUT
