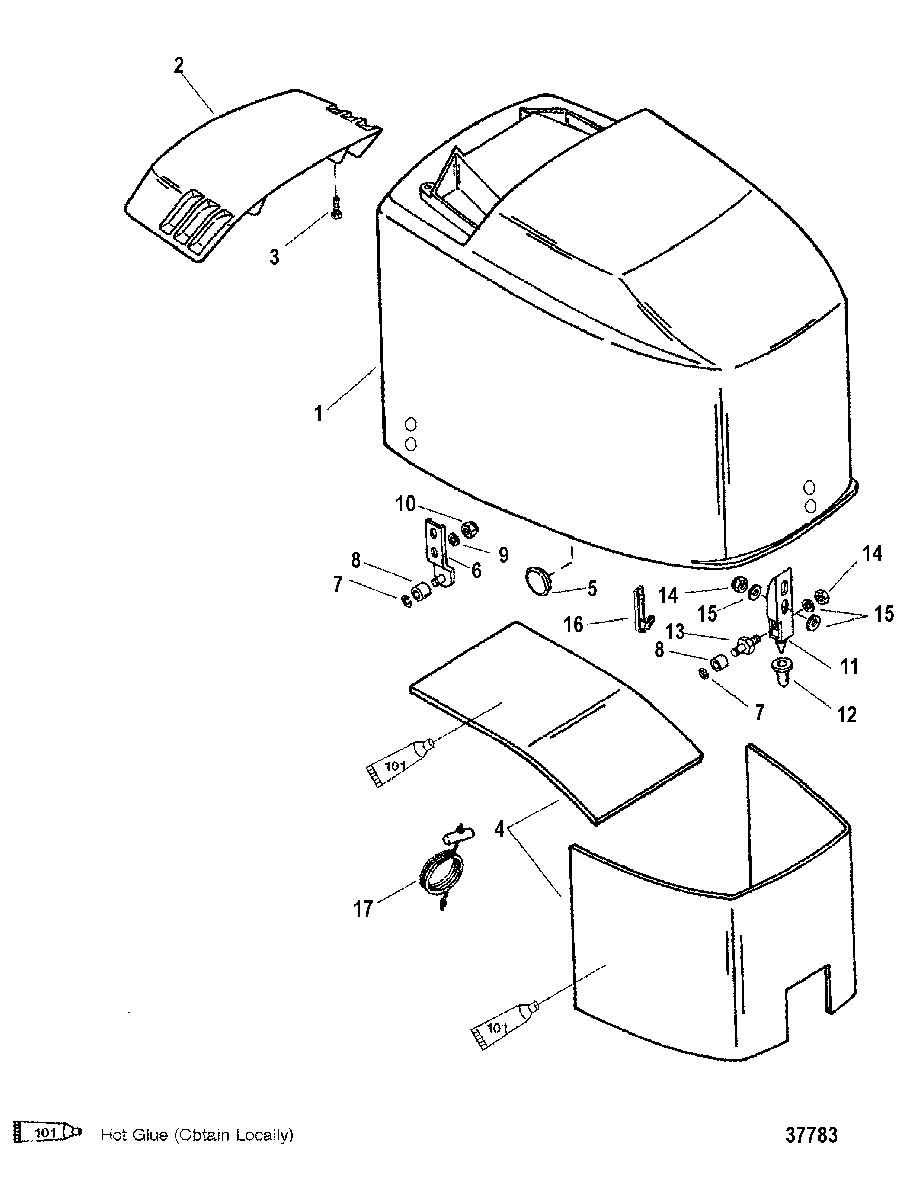

TOP COWL для Mariner - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
14001-814277T14 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
14001-814277T15 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
14001-814277T25 TOP COWL ASSEMBLY
(WHITE)TOP COWL ASSEMBLY
(WHITE) -
2821256T03 INLET, Air
(BLACK)INLET, Air
(BLACK) -
2821256T2 INLET, Air
(SILVER)INLET, Air
(SILVER) -
2821256F6 INLET, Air
(WHITE)INLET, Air
(WHITE) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4821250A1 SOUND BLANKET KITSOUND BLANKET KIT
-
519-823865 CAP PLUGCAP PLUG
-
6821248 REAR LATCH HOOKREAR LATCH HOOK
-
753-8237951 RING, RetainingRING, Retaining
-
8815263 ROLLERROLLER
-
912-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1011-401196 NUT, (M6)NUT, (M6)
-
118M0036792 BRACKET, FrontBRACKET, Front
-
12815477 BUMPER, LatchBUMPER, Latch
-
138155381 PIN, RollPIN, Roll
-
1411-401196 NUT, (M6)NUT, (M6)
-
1512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
16826639T COVERCOVER
-
1747341A11 ROPE AND HANDLE KITROPE AND HANDLE KIT
