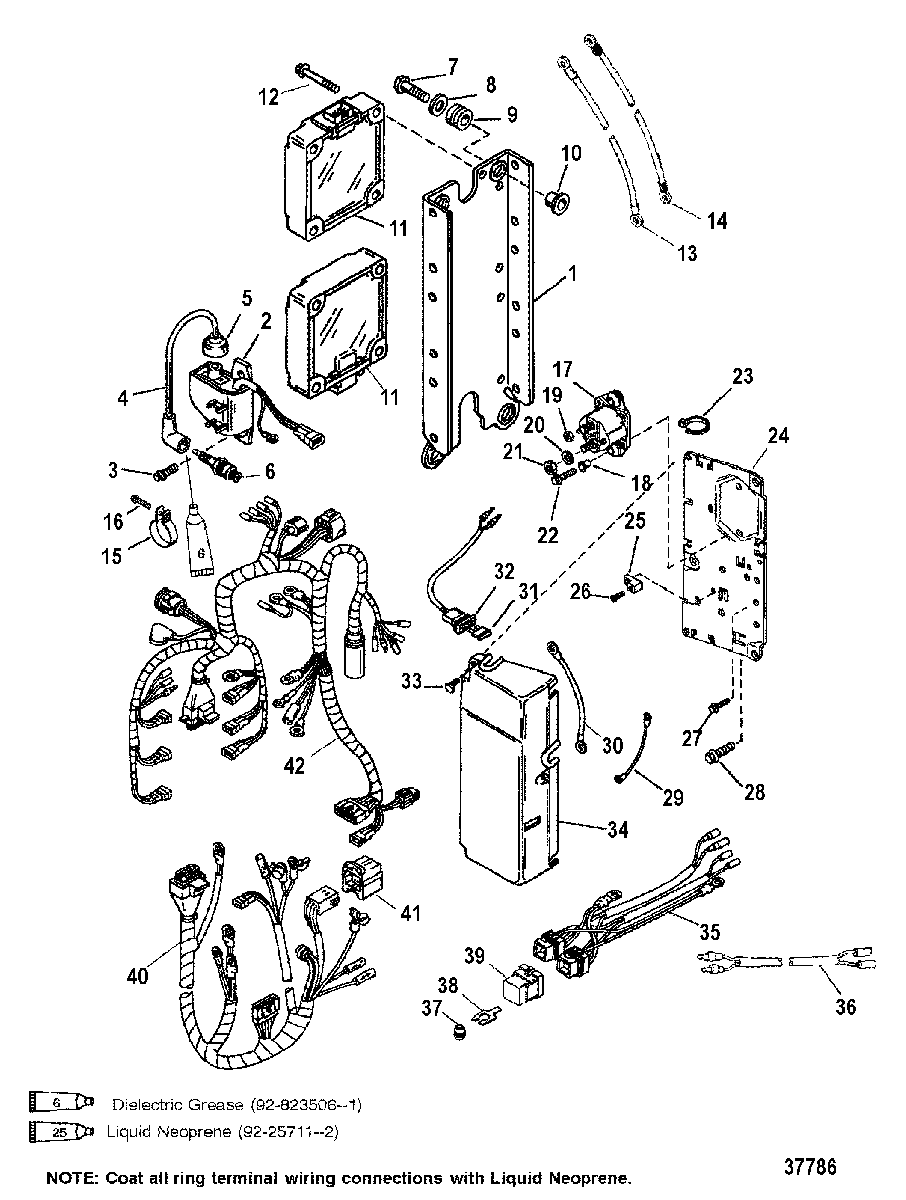

ELECTRICAL COMPONENTS(S/N-0G303045 AND BELOW) для Mariner - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
1825296 PLATE, Electrical MountingPLATE, Electrical Mounting
-
2827509A12 CDM ASSEMBLYCDM ASSEMBLY
-
310-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
484-821945A56 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
585-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
633-941 SPARK PLUGSPARK PLUG
-
710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
925-825380001 GROMMETGROMMET
-
1023-19064 BUSHINGBUSHING
-
11830044T04 ECU, Engine Control Unit (CDI)
(NAME PLATE IS WHITE/BLACK)ECU, Engine Control Unit (CDI)
(NAME PLATE IS WHITE/BLACK) -
11830046T02 ECU, Engine Control Unit (EFI)
(NAME PLATE IS WHITE/RED)ECU, Engine Control Unit (EFI)
(NAME PLATE IS WHITE/RED) -
1210-82129145 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
1384-88439A34 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
1484-88439A24 CABLE ASSEMBLY, Negative - BatteryCABLE ASSEMBLY, Negative - Battery
-
1554-826188 CLAMPCLAMP
-
1610-82104520 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
1789-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
1823-818968 BUSHINGBUSHING
-
1911-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2013-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2111-68292 NUT, (.312-18)NUT, (.312-18)
-
2210-82129125 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
248212282 PLATE, Solenoid MountingPLATE, Solenoid Mounting
-
2586-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2610-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2710-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
2710-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
2810-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
2984-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
3084-93388A9 CABLE ASSEMBLY (BLACK)(15 IN.)CABLE ASSEMBLY (BLACK)(15 IN.)
-
3084-93388A8 CABLE ASSEMBLY, Black (12-1/2 IN.)CABLE ASSEMBLY, Black (12-1/2 IN.)
-
3188-812619 FUSE, Yellow - 20 AmpereFUSE, Yellow - 20 Ampere
-
3288-19637 SOCKET, FuseSOCKET, Fuse
-
3310-82239320 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
348216091 COVERCOVER
-
3584-826802A2 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
3684-827356A2 HARNESS ASSEMBLY, SHIFT INTERRUPT (26 IN.)HARNESS ASSEMBLY, SHIFT INTERRUPT (26 IN.)
-
3725-818967 GROMMETGROMMET
-
38828102 BRACKETBRACKET
-
39882751A1 RELAYRELAY
-
4084-825763A2 HARNESS ASSEMBLY, EFIHARNESS ASSEMBLY, EFI
-
41822449A1 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
4284-825433A5 HARNESS ASSEMBLY, IgnitionHARNESS ASSEMBLY, Ignition
