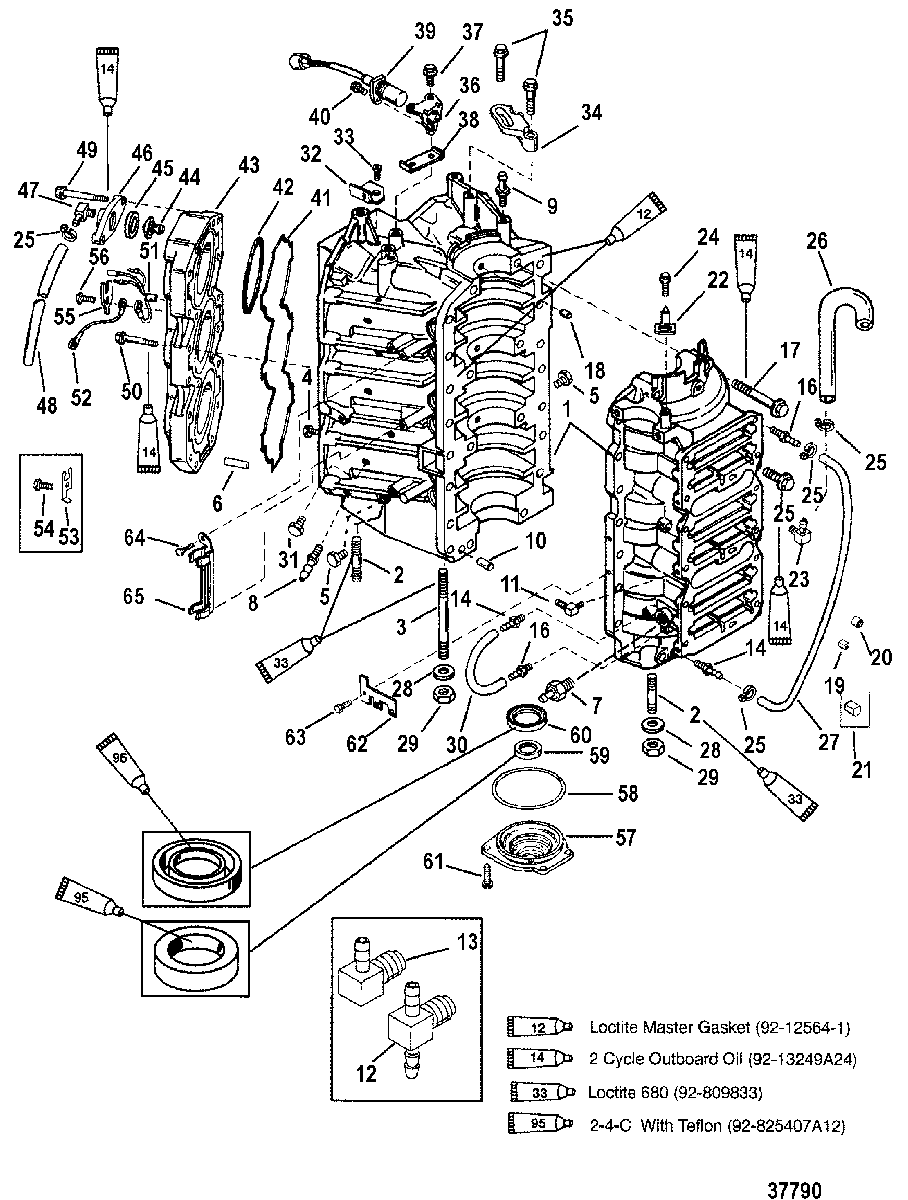

CYLINDER BLOCK AND END CAP для Mariner - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
1885-9811A19 CYLINDER BLOCK
SN# 0G438000 & UpCYLINDER BLOCK
SN# 0G438000 & Up -
1885-9811A19 CYLINDER BLOCK
SN# 0G437999 & BelowCYLINDER BLOCK
SN# 0G437999 & Below -
216-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
316-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
422-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
522-36382 FITTING, (.250-18 x .62) Brass (USE WHERE APPLICABLE)FITTING, (.250-18 x .62) Brass (USE WHERE APPLICABLE)
-
68248577 DEFLECTOR, Water
SN# 0G438000 & UpDEFLECTOR, Water
SN# 0G438000 & Up -
721-8781051 FITTINGFITTING
-
822-8245021 CONNECTORCONNECTOR
-
98215832 PINPIN
-
1017-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1122-768431 FITTING
SN# 0G438000 THRU 0G485988FITTING
SN# 0G438000 THRU 0G485988 -
1122-768431 FITTING
SN# 0G437999 & BelowFITTING
SN# 0G437999 & Below -
1221-8348041 CHECK VALVE
SN# 0G485989 & UpCHECK VALVE
SN# 0G485989 & Up -
1321-8282182 CHECK VALVECHECK VALVE
-
1421-426585 CHECK VALVECHECK VALVE
-
1510-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1621-8159234 CHECK VALVECHECK VALVE
-
1710-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
1817-8M0036405 PINPIN
-
19825367A1 CARRIER ASSEMBLY (INCLUDES 6 CARRIERS)
SN# 0G437999 & BelowCARRIER ASSEMBLY (INCLUDES 6 CARRIERS)
SN# 0G437999 & Below -
2021-42657A3 CHECK VALVE
SN# 0G437999 & BelowCHECK VALVE
SN# 0G437999 & Below -
2119-850309001 PLUG
SN# 0G438000 & UpPLUG
SN# 0G438000 & Up -
228217621 TIMING POINTERTIMING POINTER
-
2322-687271 FITTING, (.250-18) 90 Degree - Brass (INCLUDED W/REF. #26)FITTING, (.250-18) 90 Degree - Brass (INCLUDED W/REF. #26)
-
2410-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2632-826544A1 TUBING KITTUBING KIT
-
2732-892024122 TUBING, (20.00 Feet Bulk) (22-1/2 IN.)TUBING, (20.00 Feet Bulk) (22-1/2 IN.)
-
2812-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
-
2911-4013610 NUT, (M10)NUT, (M10)
-
3032-892024122 TUBING, (20.00 Feet Bulk) (3-3/4 IN.)
SN# 0G438000 & UpTUBING, (20.00 Feet Bulk) (3-3/4 IN.)
SN# 0G438000 & Up -
3032-892024122 TUBING, (20.00 Feet Bulk) (4 IN.)
SN# 0G437999 & BelowTUBING, (20.00 Feet Bulk) (4 IN.)
SN# 0G437999 & Below -
3122-8272011 PIPE PLUG
SN# 0G437999 & BelowPIPE PLUG
SN# 0G437999 & Below -
328256751 BRACKETBRACKET
-
3310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
348211051 BRACKET, AlternatorBRACKET, Alternator
-
3510-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
368212251 BRACKETBRACKET
-
3710-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
38822486 BRACKET, GuideBRACKET, Guide
-
39821909 SENSORSENSOR
-
4010-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
41818574 SEALSEAL
-
4225-818573 O-RINGO-RING
-
43812851A2 CYLINDER HEADCYLINDER HEAD
-
44833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
SN# 0G438000 & UpTHERMOSTAT, 62A° Celsius (143A° Fahrenheit)
SN# 0G438000 & Up -
4475692 THERMOSTAT (143 DEGREES)
SN# 0G437999 & BelowTHERMOSTAT (143 DEGREES)
SN# 0G437999 & Below -
4527-62386001 GASKETGASKET
-
4619801A1 THERMOSTAT COVER
USE WITH 45 DEGREE ELBOWTHERMOSTAT COVER
USE WITH 45 DEGREE ELBOW -
4619801A1 COVER, Thermostat
USE WITH 90 DEGREE ELBOWCOVER, Thermostat
USE WITH 90 DEGREE ELBOW -
4722-8167811 FITTING (45 DEGREE)FITTING (45 DEGREE)
-
4722-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
4832-77653101 HOSE, (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.)
USE WITH 45 DEGREE ELBOWHOSE, (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.)
USE WITH 45 DEGREE ELBOW -
4832-77653101 HOSE, (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.)
USE WITH 90 DEGREE ELBOWHOSE, (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.)
USE WITH 90 DEGREE ELBOW -
4910-82446090 SCREW, (M8 x 90)SCREW, (M8 x 90)
-
5010-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
5113536A14 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
5284-88807A42 CABLE ASSEMBLY (USE WHERE APPLICABLE)CABLE ASSEMBLY (USE WHERE APPLICABLE)
-
53828523 RETAINER, Sensor
DESIGN IRETAINER, Sensor
DESIGN I -
5410-828552 SCREW, (.375-16 x .500)
DESIGN ISCREW, (.375-16 x .500)
DESIGN I -
55137151 RETAINER
DESIGN IIRETAINER
DESIGN II -
5610-81893412 SCREW, (M8 x 12)
DESIGN IISCREW, (M8 x 12)
DESIGN II -
571171-9787A5 END CAP ASSEMBLY, Lower
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & BelowEND CAP ASSEMBLY, Lower
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & Below -
571171-9787A4 END CAP ASSEMBLY
SN# 0G303046 & UpEND CAP ASSEMBLY
SN# 0G303046 & Up -
5825-62700 O-RING, (3.237 x .103)
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & BelowO-RING, (3.237 x .103)
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & Below -
5825-62700 O-RING, (3.237 x .103)
SN# 0G303046 & UpO-RING, (3.237 x .103)
SN# 0G303046 & Up -
5926-8185711 SEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & BelowSEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & Below -
5926-8308981 SEAL, Oil
SN# 0G303046 & UpSEAL, Oil
SN# 0G303046 & Up -
6026-859093 SEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & BelowSEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & Below -
6110-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
628261211 BRACKETBRACKET
-
6310-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
6410-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
658266241 CLAMPCLAMP
-
-27-814195A93 GASKET SETGASKET SET
-
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
