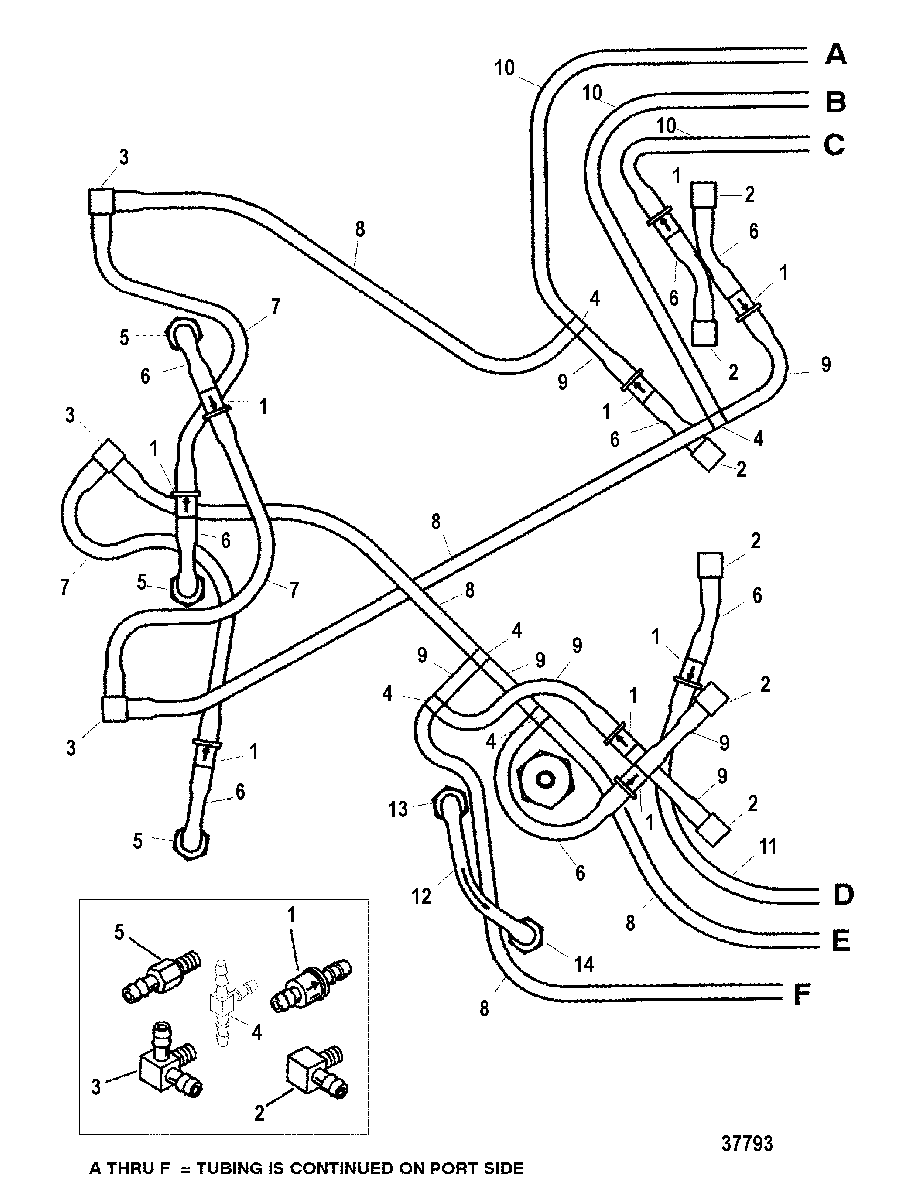

BLEED SYSTEM(STBD.)(S/N-0G438000 THRU 0G485988) для Mariner - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
121-149125 CHECK VALVECHECK VALVE
-
222-768431 FITTING
SHOWN AS REF #11 ON "CYLINDER BLOCK AND END CAP"FITTING
SHOWN AS REF #11 ON "CYLINDER BLOCK AND END CAP" -
322-8243561 FITTINGFITTING
-
422-59169003 FITTING (PLASTIC)FITTING (PLASTIC)
-
522-8245021 CONNECTOR
SHOWN AS REF #8 ON "CYLINDER BLOCK AND END CAP"CONNECTOR
SHOWN AS REF #8 ON "CYLINDER BLOCK AND END CAP" -
632-892024122 TUBING, (20.00 Feet Bulk) (3 IN.)TUBING, (20.00 Feet Bulk) (3 IN.)
-
732-892024122 TUBING, (20.00 Feet Bulk) (6 IN.)TUBING, (20.00 Feet Bulk) (6 IN.)
-
832-892024122 TUBING, (20.00 Feet Bulk) (9-1/2 IN.)TUBING, (20.00 Feet Bulk) (9-1/2 IN.)
-
932-892024122 TUBING, (20.00 Feet Bulk) (1-1/2 IN.)TUBING, (20.00 Feet Bulk) (1-1/2 IN.)
-
1032-892024122 TUBING, (20.00 Feet Bulk) (14 IN.)TUBING, (20.00 Feet Bulk) (14 IN.)
-
1132-892024122 TUBING, (20.00 Feet Bulk) (11-3/4 IN.)TUBING, (20.00 Feet Bulk) (11-3/4 IN.)
-
1232-892024122 TUBING, (20.00 Feet Bulk) (3-3/4 IN.)
SHOWN AS REF #28 ON "CYLINDER BLOCK AND END CAP"TUBING, (20.00 Feet Bulk) (3-3/4 IN.)
SHOWN AS REF #28 ON "CYLINDER BLOCK AND END CAP" -
1321-426585 CHECK VALVE
SHOWN AS REF #14 ON "CYLINDER BLOCK AND END CAP"CHECK VALVE
SHOWN AS REF #14 ON "CYLINDER BLOCK AND END CAP" -
1421-8159234 CHECK VALVE
SHOWN AS REF #16 ON "CYLINDER BLOCK AND END CAP"CHECK VALVE
SHOWN AS REF #16 ON "CYLINDER BLOCK AND END CAP" -
-809794R97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
