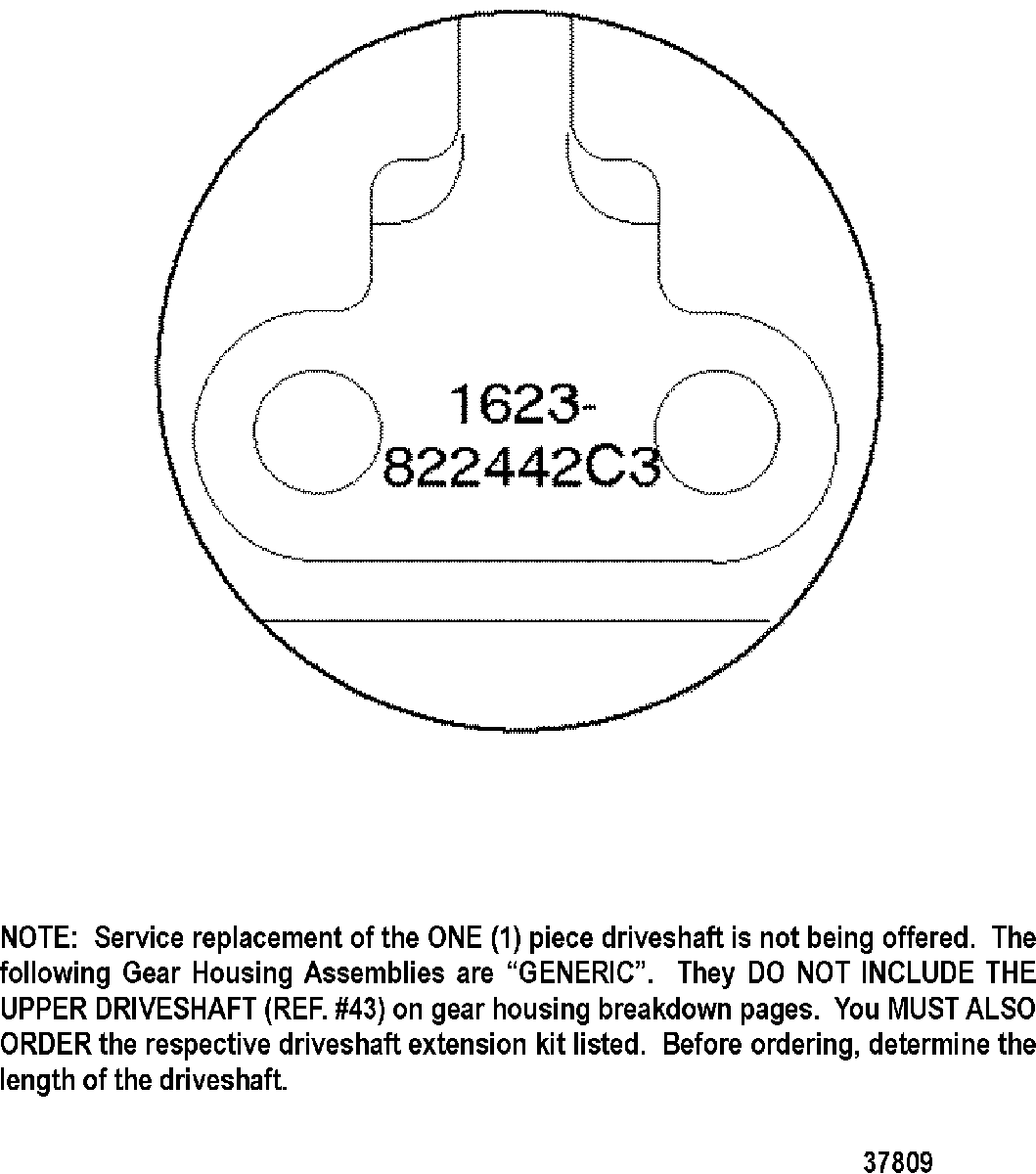

GEAR HOUSING CHART(S/N-0G438000 AND UP) для Mariner - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
-1623-822442T77 GEAR HOUSING ASSEMBLY (BLACK)
STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY (BLACK)
STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-822442T78 GEAR HOUSING ASSEMBLY (GRAY)
STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY (GRAY)
STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-822442T80 GEAR HOUSING ASSEMBLY (WHITE)
STANDARD ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY (WHITE)
STANDARD ROTATION 1.75:1 GEAR RATIO -
-1623-857113T2 GEAR HOUSING ASSEMBLY (BLACK)
COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY (BLACK)
COUNTER ROTATION 1.75:1 GEAR RATIO -
-1623-822442T82 GEAR HOUSING ASSEMBLY (GRAY)
COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY (GRAY)
COUNTER ROTATION 1.75:1 GEAR RATIO -
-1623-822442T85 GEAR HOUSING ASSEMBLY (WHITE)
COUNTER ROTATION 1.75:1 GEAR RATIOGEAR HOUSING ASSEMBLY (WHITE)
COUNTER ROTATION 1.75:1 GEAR RATIO -
-1623-822442T95 GEAR HOUSING ASSEMBLY (BLACK)
HIGH ALTITUDE 1.87:1 GEAR RATIOGEAR HOUSING ASSEMBLY (BLACK)
HIGH ALTITUDE 1.87:1 GEAR RATIO -
-1623-822442T96 GEAR HOUSING ASSEMBLY (GRAY)
HIGH ALTITUDE 1.87:1 GEAR RATIOGEAR HOUSING ASSEMBLY (GRAY)
HIGH ALTITUDE 1.87:1 GEAR RATIO -
-45-827754A1 EXTENSION KIT, Driveshaft (LONG-20 IN.)
13 SPLINESEXTENSION KIT, Driveshaft (LONG-20 IN.)
13 SPLINES -
-45-827755A1 EXTENSION KIT, Driveshaft (X-LONG-25 IN.)
13 SPLINESEXTENSION KIT, Driveshaft (X-LONG-25 IN.)
13 SPLINES -
-45-826353A1 EXTENSION KIT, Driveshaft (XX-LONG-30 IN.)
13 SPLINESEXTENSION KIT, Driveshaft (XX-LONG-30 IN.)
13 SPLINES
