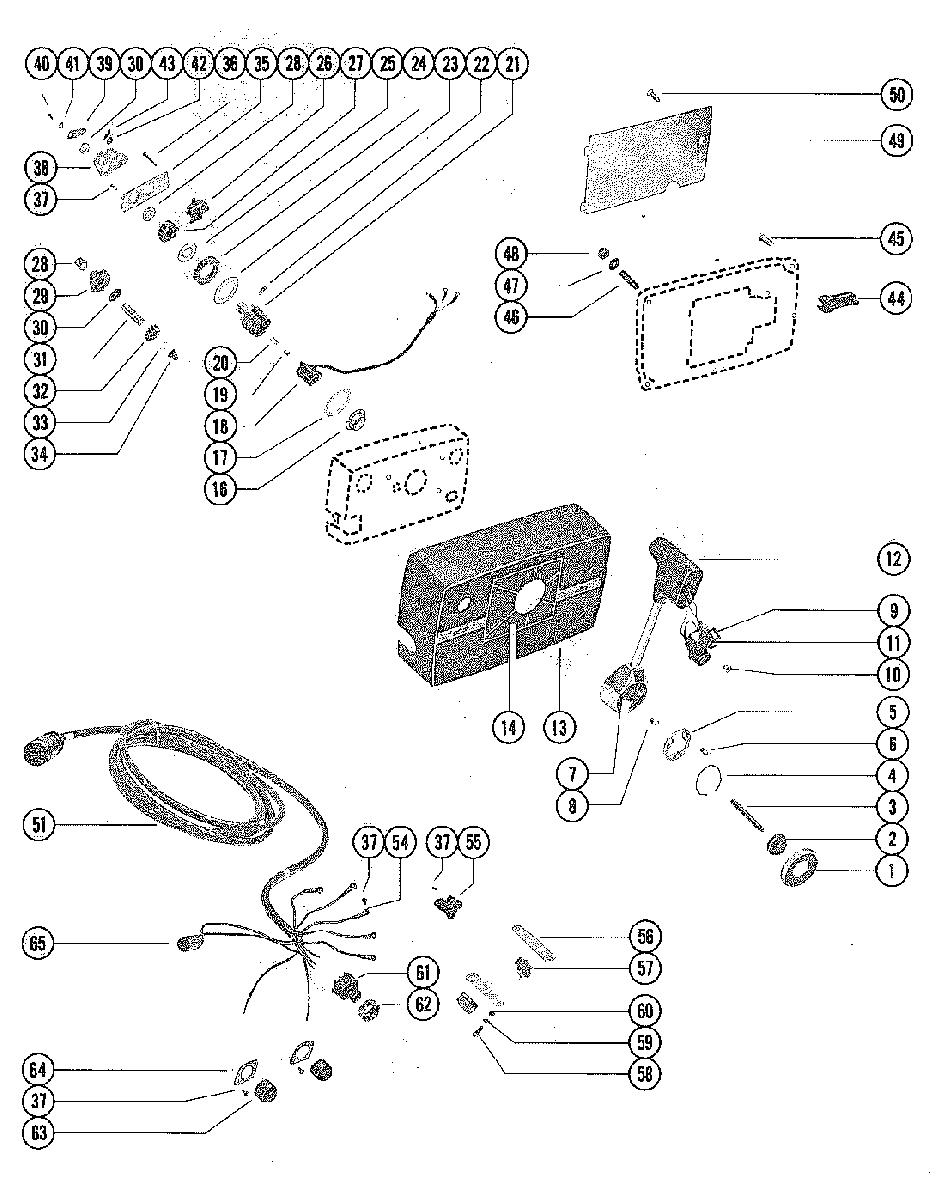

REMOTE CONTROL ASSEMBLY (ELECTRIC) (USE ON MARINER 115) для Mariner - 140 8055605 THRU 8062459
-
№АртикулНазвание
-
-78025A REMOTE CONTROL ASSEMBLY, COMPLETE (ELECTRIC)
A-78025A REMOTE CONTROL IS AVAILABLE IN LENGTHS OF 10', 15', 20' AND 40'.eFOR USE ON MARINER 115 WITH POWER TRIM.REMOTE CONTROL ASSEMBLY, COMPLETE (ELECTRIC)
A-78025A REMOTE CONTROL IS AVAILABLE IN LENGTHS OF 10', 15', 20' AND 40'.eFOR USE ON MARINER 115 WITH POWER TRIM. -
185006 COVER, ASSEMBLY, HUBCOVER, ASSEMBLY, HUB
-
265676 BOOT, RUBBER - SHAFTBOOT, RUBBER - SHAFT
-
365673 SHAFTSHAFT
-
456773 RETAINER , HUB COVERRETAINER , HUB COVER
-
565954 PLATE, CONTROL HANDLEPLATE, CONTROL HANDLE
-
610-70903 SCREW, PLATE TO CONTROL HANDLE (1/2")SCREW, PLATE TO CONTROL HANDLE (1/2")
-
765955 CONNECTORCONNECTOR
-
810-20650 SCREW, CONNECTOR TO DISCONNECT (3/8")SCREW, CONNECTOR TO DISCONNECT (3/8")
-
974646 RETAINER, PUSH BUTTON SWITCHESRETAINER, PUSH BUTTON SWITCHES
-
1010-77444 SCREW, RETAINER TO CONTROL HANDLE (5/16")SCREW, RETAINER TO CONTROL HANDLE (5/16")
-
1187-68691 SWITCH, PUSH BUTTON (BLACK)SWITCH, PUSH BUTTON (BLACK)
-
1187-68033 SWITCH, PUSH BUTTOM (RED)SWITCH, PUSH BUTTOM (RED)
-
1255719 HANDLE, CONTROLHANDLE, CONTROL
-
1368034 COVER, REMOTE CONTROLCOVER, REMOTE CONTROL
-
1437-77992 DECAL, REMOTE CONTROL COVER (NOT AS SHOWN)DECAL, REMOTE CONTROL COVER (NOT AS SHOWN)
-
1623-55399 BUSHING, NYLON - PORT CONTROL HOUSINGBUSHING, NYLON - PORT CONTROL HOUSING
-
1768026 PLATE, RETAINING - DISCONNECT PLUGPLATE, RETAINING - DISCONNECT PLUG
-
1865672 PLUG, DISCONNECTPLUG, DISCONNECT
-
1917-68672 PIN, CONTROL HUBPIN, CONTROL HUB
-
2024-73190 SPRING, CONTROL HUBSPRING, CONTROL HUB
-
2165665 HUB, CONTROLHUB, CONTROL
-
2228-68024 KEY, CONTROL HUBKEY, CONTROL HUB
-
2312-68025 WASHER, CONTROL HUBWASHER, CONTROL HUB
-
2443-65731 GEAR, THROTTLEGEAR, THROTTLE
-
2512-65986 WASHER, NYLON - CONTROL HUBWASHER, NYLON - CONTROL HUB
-
2668876A1 DETENT ASSEMBLYDETENT ASSEMBLY
-
2743-65733 GEAR, SHIFTGEAR, SHIFT
-
2823-74647 BUSHING, NYLON - SUPPORT PLATEBUSHING, NYLON - SUPPORT PLATE
-
2943-65734 PINION GEAR, SHIFTPINION GEAR, SHIFT
-
3012-68032 WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
3165730 SHAFT, THROTTLESHAFT, THROTTLE
-
3243-65732 PINION GEAR, THROTTLEPINION GEAR, THROTTLE
-
3353-46250 RING, RETAINING - THROTTLE PINIONRING, RETAINING - THROTTLE PINION
-
3423-65830 BUSHING, NYLON - THROTTLE SHAFTBUSHING, NYLON - THROTTLE SHAFT
-
3565832 PLATE, SUPPORT SHAFT AND DETENTPLATE, SUPPORT SHAFT AND DETENT
-
3610-73013 SCREW, PLATE TO CONTROL HOUSING (1 1/2")SCREW, PLATE TO CONTROL HOUSING (1 1/2")
-
3710-69079 SCREW (7/16")SCREW (7/16")
-
3865655A1 LEVER ASSEMBLY, SHIFTLEVER ASSEMBLY, SHIFT
-
3965657A1 LEVER ASSEMBLY, THROTTLELEVER ASSEMBLY, THROTTLE
-
4010-37571 SCREW, THROTTLE LEVER TO THROTTLE SCREW (1/2")SCREW, THROTTLE LEVER TO THROTTLE SCREW (1/2")
-
4112-72761 WASHER, THROTTLE LEVER SCREWWASHER, THROTTLE LEVER SCREW
-
4212-35950 WASHER, CABLE ATTACHINGWASHER, CABLE ATTACHING
-
4318-210711 COTTER PIN, CABLE ATTACHINGCOTTER PIN, CABLE ATTACHING
-
4468023 HOUSING, CABLEHOUSING, CABLE
-
4510-35386 SCREW, CONTROL HOUSING ATTACHING (1")SCREW, CONTROL HOUSING ATTACHING (1")
-
4616-29208 STUD, PORT CONTROL HOUSING (2 1/2")STUD, PORT CONTROL HOUSING (2 1/2")
-
4712-26168 WASHER, PORT CONTROL HOUSING STUDWASHER, PORT CONTROL HOUSING STUD
-
4811-29250 NUT, PORT CONTROL HOUSING STUDNUT, PORT CONTROL HOUSING STUD
-
4965956 COVER, STARBOARD CONTROL HOUSINGCOVER, STARBOARD CONTROL HOUSING
-
5010-25504 SCREW, COVER ATTACHING (3/4")SCREW, COVER ATTACHING (3/4")
-
5184-76407 WIRING HARNESS
AVAILABLE IN LENGTHS OF 10' ,15' ,20' , AND 40'WIRING HARNESS
AVAILABLE IN LENGTHS OF 10' ,15' ,20' , AND 40' -
5486-60878T TERMINAL, WIRING HARNESSTERMINAL, WIRING HARNESS
-
5586-65738 TERMINAL BLOCKTERMINAL BLOCK
-
5674596 PLATE, MICRO SWTICH MOUNTINGPLATE, MICRO SWTICH MOUNTING
-
5787-74605 SWITCH, MICROSWITCH, MICRO
-
5810-90342 SCREW, MIRCO SWITCH TO PLATE (5/8")SCREW, MIRCO SWITCH TO PLATE (5/8")
-
5913-24658 LOCKWASHER, MICRO SWITCH SCREWLOCKWASHER, MICRO SWITCH SCREW
-
6011-63683 NUT, MICRO SWITCH SCREW WHEN ORDERING REPLACEMENT KEYS ALSNUT, MICRO SWITCH SCREW WHEN ORDERING REPLACEMENT KEYS ALS
-
6154211T IGNITION SWITCH(WITH KEYS) KEY PART #C-30431
WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEYIGNITION SWITCH(WITH KEYS) KEY PART #C-30431
WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY -
6268863 BEZEL, IGNITION SWITCHBEZEL, IGNITION SWITCH
-
6355738A1 SWITCH ASSEMBLY, PUSH BUTTONSWITCH ASSEMBLY, PUSH BUTTON
-
6455691 COVER, PUSH BUTTON SWITCHCOVER, PUSH BUTTON SWITCH
-
6584-76353 HARNESS, TRIM
AVAILALBE IN LENGTHS OF 10' , 15' ,25' , & 45'HARNESS, TRIM
AVAILALBE IN LENGTHS OF 10' , 15' ,25' , & 45'
