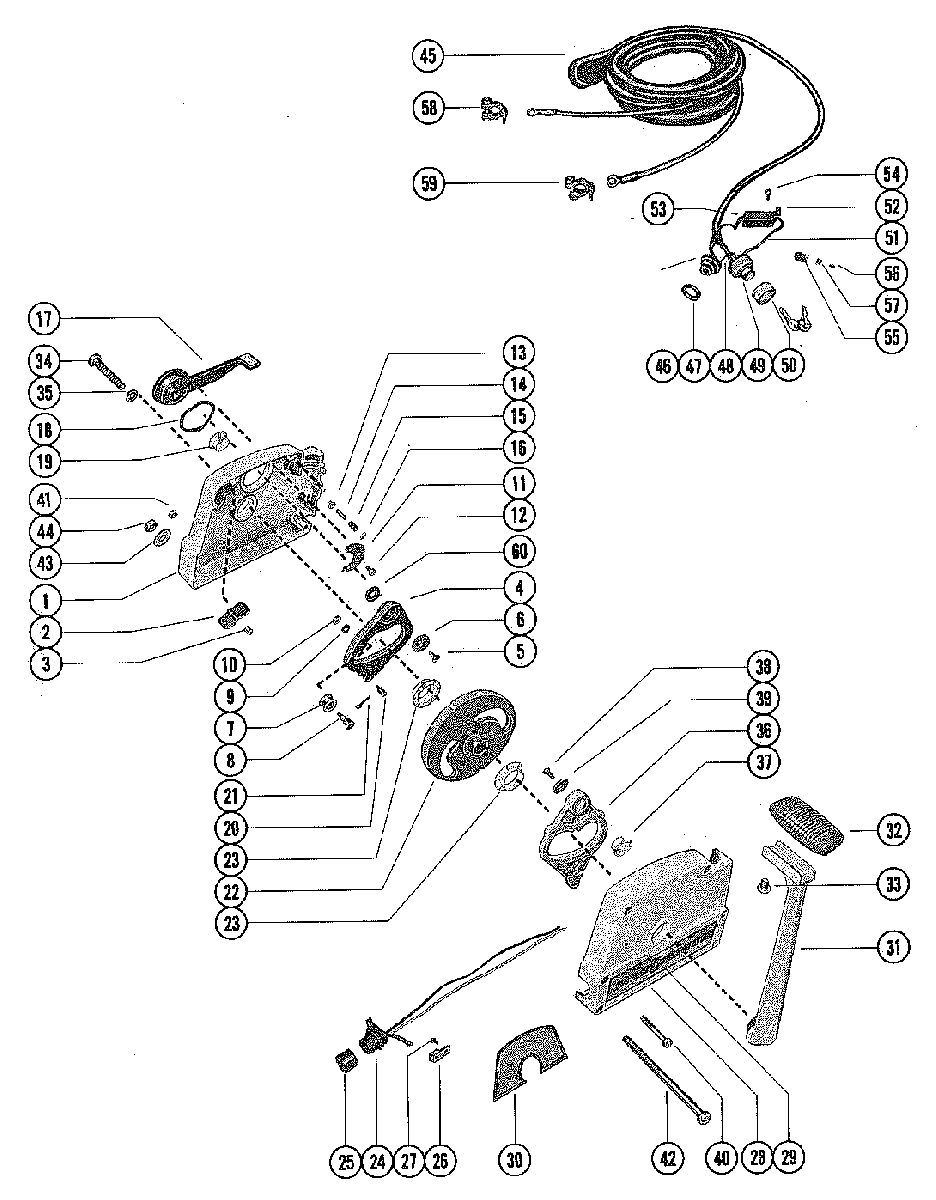

REMOTE CONTROL ASSEMBLY (ELECTRIC) для Mariner - 140 8055605 THRU 8062459

  • №
    Артикул
    Название
  • -
    76714A ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE
    ELECTRIC REMOTE CONTROL ASSEMBLY, COMPLETE
  • 1
    458802 HOUSING, REMOTE CONTROL (STARBOARD)
    HOUSING, REMOTE CONTROL (STARBOARD)
  • 2
    24-34683 SPRING, DETENT - CONTROL HOUSING
    SPRING, DETENT - CONTROL HOUSING
  • 3
    34992 ROLLER, DETENT SPRING
    ROLLER, DETENT SPRING
  • 4
    34671 LEVER, THROTTLE - CONTROL HOUSING
    LEVER, THROTTLE - CONTROL HOUSING
  • 5
    10-85072 SCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVER
    SCREW, THROTTLE LEVER TO NEUTRAL WARM-UP LEVER
  • 6
    12-34675 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 7
    34672 CAM ROLLER, THROTTLE LEVER
    CAM ROLLER, THROTTLE LEVER
  • 8
    17-34673 PIN, CAM ROLLER TO THROTTLE LEVER
    PIN, CAM ROLLER TO THROTTLE LEVER
  • 9
    12-34680 WASHER, CAM ROLLER PIN
    WASHER, CAM ROLLER PIN
  • 10
    11-24656 NUT, CAM ROLLETR TO THROTTLE LEVER PIN
    NUT, CAM ROLLETR TO THROTTLE LEVER PIN
  • 11
    34679 PLATE, THRUST - CONTROL HOUSING
    PLATE, THRUST - CONTROL HOUSING
  • 12
    10-47220 SCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVER
    SCREW, THRUST PLATE TO NEUTRAL WARM-UP LEVER
  • 13
    17-20009 PIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVER
    PIN, DETENT - CONTROL HOUSING NEUTRAL WARM-UP LEVER
  • 14
    24-35210 SPRING, DETENT PIN
    SPRING, DETENT PIN
  • 15
    24-35227 SPRING, DETENT PIN TENSION
    SPRING, DETENT PIN TENSION
  • 16
    19-20011 WELCH PLUG, DETENT PIN AND SPRING RETAINING
    WELCH PLUG, DETENT PIN AND SPRING RETAINING
  • 17
    346702 LEVER, NEUTRAL WARM-UP
    LEVER, NEUTRAL WARM-UP
  • 18
    13-34678 WASHER, WAVE - NEUTRAL WARM-UP LEVER
    WASHER, WAVE - NEUTRAL WARM-UP LEVER
  • 19
    23-33589 BUSHING, NYLON - NEUTRAL WARM-UP LEVER (5/8" I.D.)
    BUSHING, NYLON - NEUTRAL WARM-UP LEVER (5/8" I.D.)
  • 20
    17-34692 PIN, SHIFT AND THROTTLE LEVERS
    PIN, SHIFT AND THROTTLE LEVERS
  • 21
    18-29623 COTTER PIN, SHIFT AND THROTTLE LEVER PINS
    COTTER PIN, SHIFT AND THROTTLE LEVER PINS
  • 22
    59369 FACE CAM
    FACE CAM
  • 23
    23-34677 BUSHING, NYLON - FACE CAM (1" I.D.)
    BUSHING, NYLON - FACE CAM (1" I.D.)
  • 24
    84-93466A1 CONNECTOR, TACHOMETER LEAD TO REMOTE CONTROL
    CONNECTOR, TACHOMETER LEAD TO REMOTE CONTROL
  • 25
    45940 CAP, TCHOMETER LEAD CONNECTOR
    CAP, TCHOMETER LEAD CONNECTOR
  • 26
    86-63577 TERMINAL BLOCK, CONNECTOR LEADS
    TERMINAL BLOCK, CONNECTOR LEADS
  • 27
    10-37260 SCREW, TERMINAL BLOCK TO CONTROL HOUSING (7/16")
    SCREW, TERMINAL BLOCK TO CONTROL HOUSING (7/16")
  • 28
    459392 HOUSING, REMOTE CONTROL (PORT)
    HOUSING, REMOTE CONTROL (PORT)
  • 29
    37-76703 DECAL, CONTROL HOUSING (MARINER)-NOT AS SHOWN
    DECAL, CONTROL HOUSING (MARINER)-NOT AS SHOWN
  • 30
    37-64043 DECAL, CONTROL HOUSING (MERCONTROL)
    DECAL, CONTROL HOUSING (MERCONTROL)
  • 31
    346892 LEVER, CONTROL
    LEVER, CONTROL
  • 32
    36005 GRIP, CONTROL LEVER
    GRIP, CONTROL LEVER
  • 33
    10-37342 SCREW, GRIP TO CONTROL LEVER (7/16")
    SCREW, GRIP TO CONTROL LEVER (7/16")
  • 34
    10-68909 SCREW, CONTROL LEVER TO FACE CAM (1 1/2")
    SCREW, CONTROL LEVER TO FACE CAM (1 1/2")
  • 35
    13-26992 LOCKWASHER, CONTROL LEVER SCREW
    LOCKWASHER, CONTROL LEVER SCREW
  • 36
    34682 LEVER, SHIFT - CONTROL HOUSING
    LEVER, SHIFT - CONTROL HOUSING
  • 37
    23-33589 BUSHING, NYLON - SHIFT LEVER (5/8" I.D.)
    BUSHING, NYLON - SHIFT LEVER (5/8" I.D.)
  • 38
    10-85072 SCREW, SHIFT LEVER TO CONTROL HOUSING
    SCREW, SHIFT LEVER TO CONTROL HOUSING
  • 39
    12-34675 WASHER, SHIFT LEVER SCREW
    WASHER, SHIFT LEVER SCREW
  • 40
    10-37941 SCREW, REMOTE CONTROL HOUSING CLAMPING
    SCREW, REMOTE CONTROL HOUSING CLAMPING
  • 41
    11-30506 NUT, REMOTE CONTROL HOUSING CLAMPING SCREW
    NUT, REMOTE CONTROL HOUSING CLAMPING SCREW
  • 42
    10-34900 SCREW, REMOTE CONTROL TO BOAT (4 1/4")
    SCREW, REMOTE CONTROL TO BOAT (4 1/4")
  • 43
    12-69057 WASHER, REMOTE CONTROL SCREW
    WASHER, REMOTE CONTROL SCREW
  • 44
    11-24652 NUT, REMOTE CONTROL TO BOAT TRANSOM
    NUT, REMOTE CONTROL TO BOAT TRANSOM
  • 45
    45876 WIRING HARNESS, EXTERNAL
    AVAILABLE IN LENGTHS OF 10 ,15 ,20' AND 40'
    WIRING HARNESS, EXTERNAL
    AVAILABLE IN LENGTHS OF 10 ,15 ,20' AND 40'
  • 46
    29759 SWITCH,CHOKE
    SWITCH,CHOKE
  • 47
    30053 COLLAR, CHOKE SWITCH TO CONTROL HOUSING
    COLLAR, CHOKE SWITCH TO CONTROL HOUSING
  • 48
    39180 JUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCH WHEN ORDERING
    JUMPER WIRE, CHOKE SWITCH TO IGNITION SWITCH WHEN ORDERING
  • 49
    54211T SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431
    WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY
    SWITCH, IGNITION (WITH KEYS) KEY PART #C-30431
    WHEN ORDERING REPLACEMENT KEYS ALSO LIST NUMBER STAMPED ON KEY
  • 50
    68863 BEZEL, IGNITION SWITCH TO CONTROL HOUSING
    BEZEL, IGNITION SWITCH TO CONTROL HOUSING
  • 51
    30795 JUMPER WIRE, SAFETY SWITCH TO IGNITION SWITCH
    JUMPER WIRE, SAFETY SWITCH TO IGNITION SWITCH
  • 52
    34621T SWITCH, SAFETY
    SWITCH, SAFETY
  • 53
    23-379612 SLEEVE, SAFETY SWITCH LEADS
    SLEEVE, SAFETY SWITCH LEADS
  • 54
    10-30902 SCREW, SAFETY SWITCH TO CONTROL HOUSING
    SCREW, SAFETY SWITCH TO CONTROL HOUSING
  • 55
    54-22627 CLIP, INNER - WIRING HARNESS TO CONTROL HOUSING
    CLIP, INNER - WIRING HARNESS TO CONTROL HOUSING
  • 56
    10-37260 SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (7/16")
    SCREW, WIRING HARNESS CLIP TO CONTROL HOUSING (7/16")
  • 57
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    "D" WASHER, WIRING HARNESS CLIP SCREW
  • 58
    27913 BATTERY TERMINAL, NEGATIVE (WITH BOLT AND NUT)
    BATTERY TERMINAL, NEGATIVE (WITH BOLT AND NUT)
  • 59
    27912 BATTERY TERMINAL, POSITIVE (WITH BOLT AND NUT)
    BATTERY TERMINAL, POSITIVE (WITH BOLT AND NUT)
  • 60
    13-60861 WASHER, WAVE - THROTTLE LEVER
    WASHER, WAVE - THROTTLE LEVER
