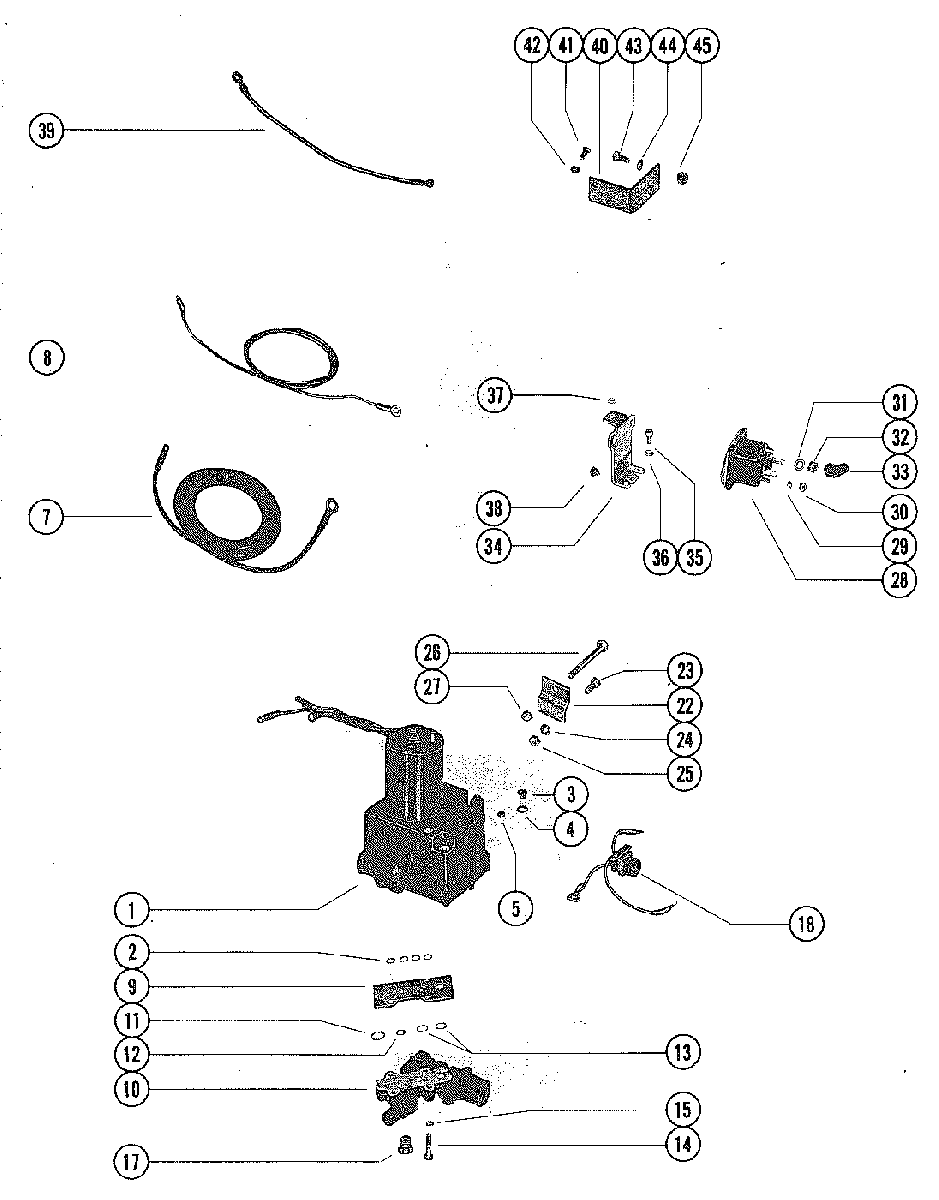

HYDRAULIC PUMP AND CONTROL VALVE для Mariner - 140 8055605 THRU 8062459
-
№АртикулНазвание
-
192975A32 HYDRAULIC PUMP ASSEMBLY - SEE PAGE 39 FOR BREAKDOWNHYDRAULIC PUMP ASSEMBLY - SEE PAGE 39 FOR BREAKDOWN
-
225-48171 "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE
-
310-79953Q04 SCREW, FILLER - HYDRAULIC PUMPSCREW, FILLER - HYDRAULIC PUMP
-
412-191833 WASHER, SEALING - HYDRAULIC PUMP FILLER SCREWWASHER, SEALING - HYDRAULIC PUMP FILLER SCREW
-
510-62269 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
732979 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
832988 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
-
945336 PLATE, MANIFOLDPLATE, MANIFOLD
-
1045197A2 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
--25-48171 "O" RING, PUMP TO MANIFOLD PLATE (SEE REFERENCE #2)"O" RING, PUMP TO MANIFOLD PLATE (SEE REFERENCE #2)
-
1125-45254 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)"O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)
-
1225-48171 "O" RING, CONTROL VALVE TO MANIFOLD PLATE ( 1/2" O.D.)"O" RING, CONTROL VALVE TO MANIFOLD PLATE ( 1/2" O.D.)
-
1325-45253 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)"O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)
-
1410-56500 SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")SCREW, VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")
-
1513-26992 LOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREWLOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREW
-
1722-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1884-74023A1 CONNECTOR AND HARNESSCONNECTOR AND HARNESS
-
2245377T BRACKET, MOUNTING - HYDRAULIC PUMP TO BOATBRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT
-
2310-35386 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")
-
2413-39107 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
2511-21908 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
2610-68298 BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")
-
2711-82670912 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2889-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
2913-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
3011-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
3113-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
3211-68292 NUT, STARTER SOLENOID TERMINAL (5/16")NUT, STARTER SOLENOID TERMINAL (5/16")
-
3346265 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
3474407T BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
3510-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
-
3613-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3711-24656 BUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTBUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
-
38269011 BUMPER, RUBBER - SOLENOID BRACKETBUMPER, RUBBER - SOLENOID BRACKET
-
3984-79139A2 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
3955992 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
-
4074406 BRACKET, MOUNTING STARTER SOLENOIDBRACKET, MOUNTING STARTER SOLENOID
-
4110-69028 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")
-
4213-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
4310-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
-
4413-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
4511-21825 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
