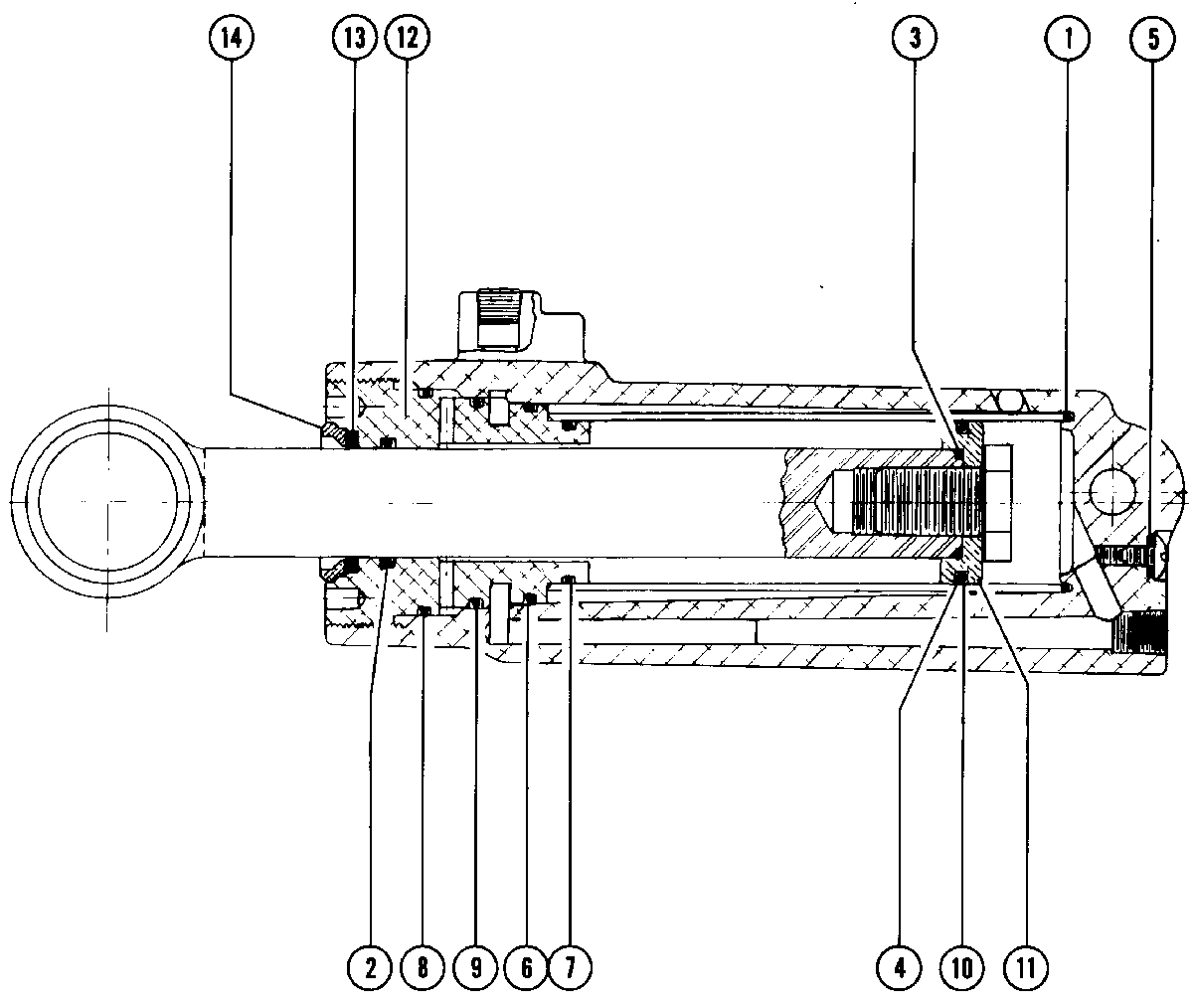

POWER TRIM CYLINDER REPAIR KITS для Mariner - 140 8055605 THRU 8062459

  • №
    Артикул
    Название
  • -
    64507A1 REPAIR KIT
    REPAIR KIT
  • 1
    N.S.S. "O" RING (1 1/2" X 15/8" X 1/16")
    "O" RING (1 1/2" X 15/8" X 1/16")
  • 2
    N.S.S. "O" RING, (3/4" X 15/16" X 18")
    "O" RING, (3/4" X 15/16" X 18")
  • 3
    N.S.S. "O" RING (5/8" X 3/4" X 1/16")
    "O" RING (5/8" X 3/4" X 1/16")
  • 4
    N.S.S. "O" RING (1 1/4" X 1 7/16" X 1/16")
    "O" RING (1 1/4" X 1 7/16" X 1/16")
  • 5
    N.S.S. "O" RING (7/32" X 11/32" X 1/16")
    "O" RING (7/32" X 11/32" X 1/16")
  • 6
    N.S.S. "O" RING (1 5/8" X 1 13/16" X 1/8")
    "O" RING (1 5/8" X 1 13/16" X 1/8")
  • 7
    N.S.S. "O" RING (1 5/16" X 1 1/2" X 1/8")
    "O" RING (1 5/16" X 1 1/2" X 1/8")
  • 8
    N.S.S. "O" RING (1 7/8" X 2" X1/8)
    "O" RING (1 7/8" X 2" X1/8)
  • 9
    N.S.S. "O" RING (1 3/4" X 1 15/16" X1/8")
    "O" RING (1 3/4" X 1 15/16" X1/8")
  • 10
    N.S.S. SEAL, SLIPPER - PISTON
    SEAL, SLIPPER - PISTON
  • 11
    N.S.S. PISTON, ROD - HEAVY DUTY
    PISTON, ROD - HEAVY DUTY
  • 12
    64505A1 RETAINER ASSEMBLY, PISTON
    RETAINER ASSEMBLY, PISTON
  • 13
    N.S.S. ROD, SCRAPER
    ROD, SCRAPER
  • 14
    N.S.S. RETAINER, SCRAPER
    RETAINER, SCRAPER
  • 1
    32-877682Q8 FUEL LINE ASSEMBLY (8 )
    FUEL LINE ASSEMBLY (8 )
  • 1
    32-877682Q12 FUEL LINE ASSMBLY (12 )
    FUEL LINE ASSMBLY (12 )
  • 2
    89396Q01 PRIMER BULB ASSEMBLY
    PRIMER BULB ASSEMBLY
  • 3
    21-13883A3 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 4
    21-13883A4 FITTING, FUEL LINE TO PRIMER BULB
    FITTING, FUEL LINE TO PRIMER BULB
  • 5
    54-27764 CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
    CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
  • 6
    54-55206 CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
    CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
  • 7
    22-63187 CONNECTOR, FUEL LINE (FUEL TANK END)
    CONNECTOR, FUEL LINE (FUEL TANK END)
  • 8
    22-63186 CONNECTOR, FUEL LINE (ENGINE END)
    CONNECTOR, FUEL LINE (ENGINE END)
  • 9
    54-55206 CLAMP, FUEL LINE TO CONNECTOR
    CLAMP, FUEL LINE TO CONNECTOR
  • 10
    30185Q3 BAYONET BODY ASSEMBLY (FUEL TANK END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    BAYONET BODY ASSEMBLY (FUEL TANK END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 11
    30185Q3 STEM, BAYONET BODY
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    STEM, BAYONET BODY
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 12
    25-16524 "O" RING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    "O" RING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 13
    24-30189 SPRING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    SPRING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 14
    30188 WASHER, CUPPED - BAYONET SPRING
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    WASHER, CUPPED - BAYONET SPRING
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 15
    22831Q3 CHECK UNIT ASSEMBLY (ENGINE END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    CHECK UNIT ASSEMBLY (ENGINE END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
