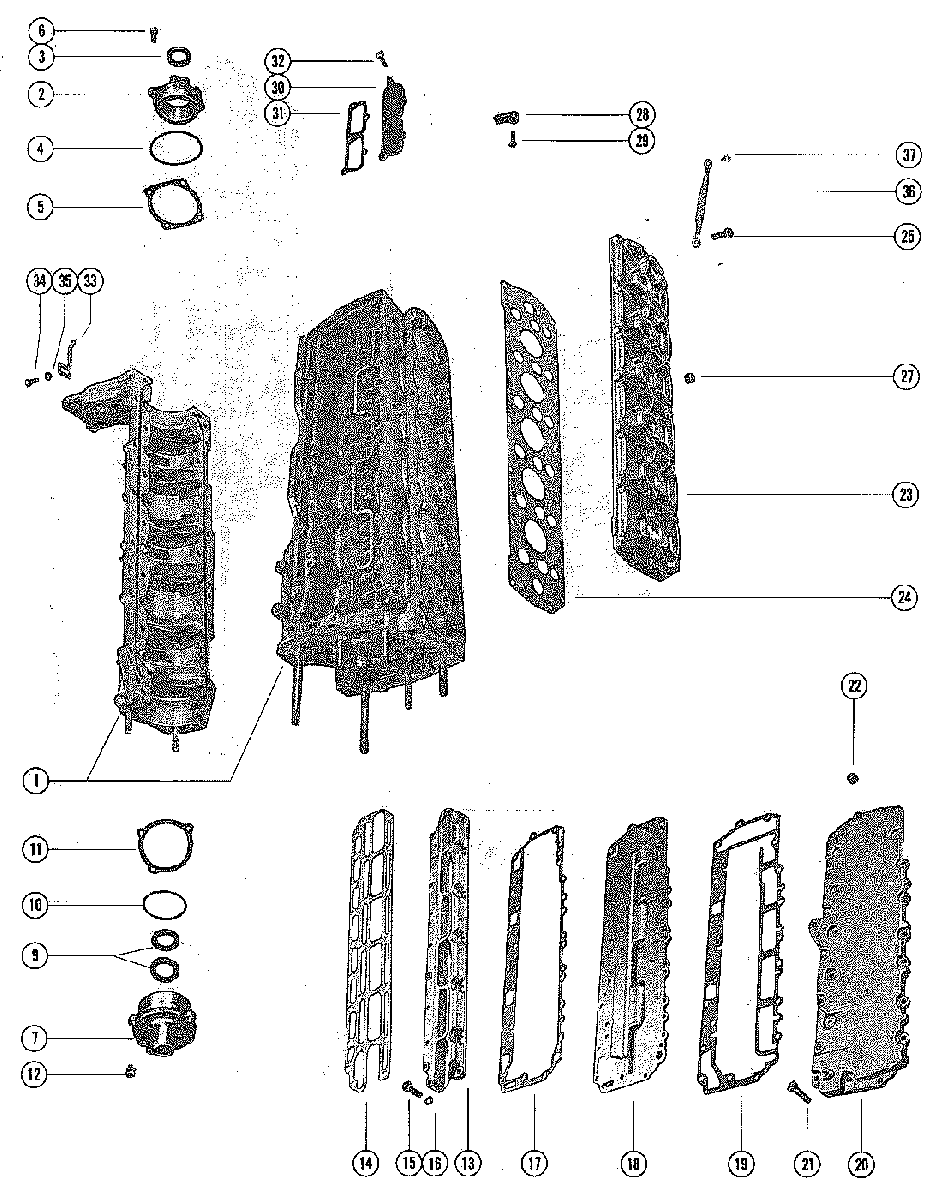

END CAP, MANIFOLD AND EXHAUST COVERS для Mariner - 140 8055605 THRU 8062459
-
№АртикулНазвание
-
1852-7408A2 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
21134-3197A1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
326-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
425-47254 "O" RING"O" RING
-
515-47248A1 SHIM, END CAP TO CRANKCASE (.006-8-10)SHIM, END CAP TO CRANKCASE (.006-8-10)
-
610-30225 SCREW, END CAP MOUNTINGSCREW, END CAP MOUNTING
-
71148-5410T1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
926-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
1025-32546 "O" RING, END CAP"O" RING, END CAP
-
1115-20085A1 SHIM, END CAP TO CRANKCASE (.002-3-5-10)SHIM, END CAP TO CRANKCASE (.002-3-5-10)
-
1210-30225 SCREW, END CAP MOUNTING (1")SCREW, END CAP MOUNTING (1")
-
1371808 COVER, WATER JACKET - CYLINDER BLOCKCOVER, WATER JACKET - CYLINDER BLOCK
-
1427-721421 GASKET, WATER JACKET COVERGASKET, WATER JACKET COVER
-
1510-53167T SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")SCREW, WATER JACKET COVER TO CYLINDER BLOCK (7/8")
-
1612-8M0042642 WASHER, WATER JACKET COVER FASTENING SCREWWASHER, WATER JACKET COVER FASTENING SCREW
-
1727-854952 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
18757781 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
1927-854972 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVERGASKET, BAFFLE PLATE TO EXHAUST MANIFOLD COVER
-
2099896A1 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
2110-53576 SCREW, MANIFOLD COVER MOUNTINGSCREW, MANIFOLD COVER MOUNTING
-
2222-328022 PLUG, PIPE - EXHAUST MANIFOLD COVERPLUG, PIPE - EXHAUST MANIFOLD COVER
-
231023-8368A1 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
2427-981853 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
2510-76630 SCREW, COVER MOUNTING (1")SCREW, COVER MOUNTING (1")
-
2722-68307 PLUG, PIPE - CYLINDER BLOCK COVERPLUG, PIPE - CYLINDER BLOCK COVER
-
2837440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCKBRACKET, MOUNT SUPPORT - CYLINDER BLOCK
-
2910-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")SCREW, BRACKET TO CYLINDER BLOCK (1")
-
3062301 COVER, TRANSFER PORT (TOP/MIDDLE)COVER, TRANSFER PORT (TOP/MIDDLE)
-
3066094 COVER, TRANSFER PORT (BOTTOM)COVER, TRANSFER PORT (BOTTOM)
-
3127-64941 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
3210-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")SCREW, TRANSFER PORT COVER MOUNTING (1")
-
3210-28636 SCREW, TRANSFER PORT COVER MOUNTING (3/4")SCREW, TRANSFER PORT COVER MOUNTING (3/4")
-
3343352 POINTER, TIMINGPOINTER, TIMING
-
3410-28636 SCREW, TIMING POINTER ATTACHING (3/4")SCREW, TIMING POINTER ATTACHING (3/4")
-
3512-35462 WASHER, TIMING POINTER SCREWWASHER, TIMING POINTER SCREW
-
3646933A3 GROUND STRAP ASSEMBLY, EXHAUST COVERGROUND STRAP ASSEMBLY, EXHAUST COVER
-
3710-62568 SCREW, GROUND STRAP ATTACHING (3/8")SCREW, GROUND STRAP ATTACHING (3/8")
