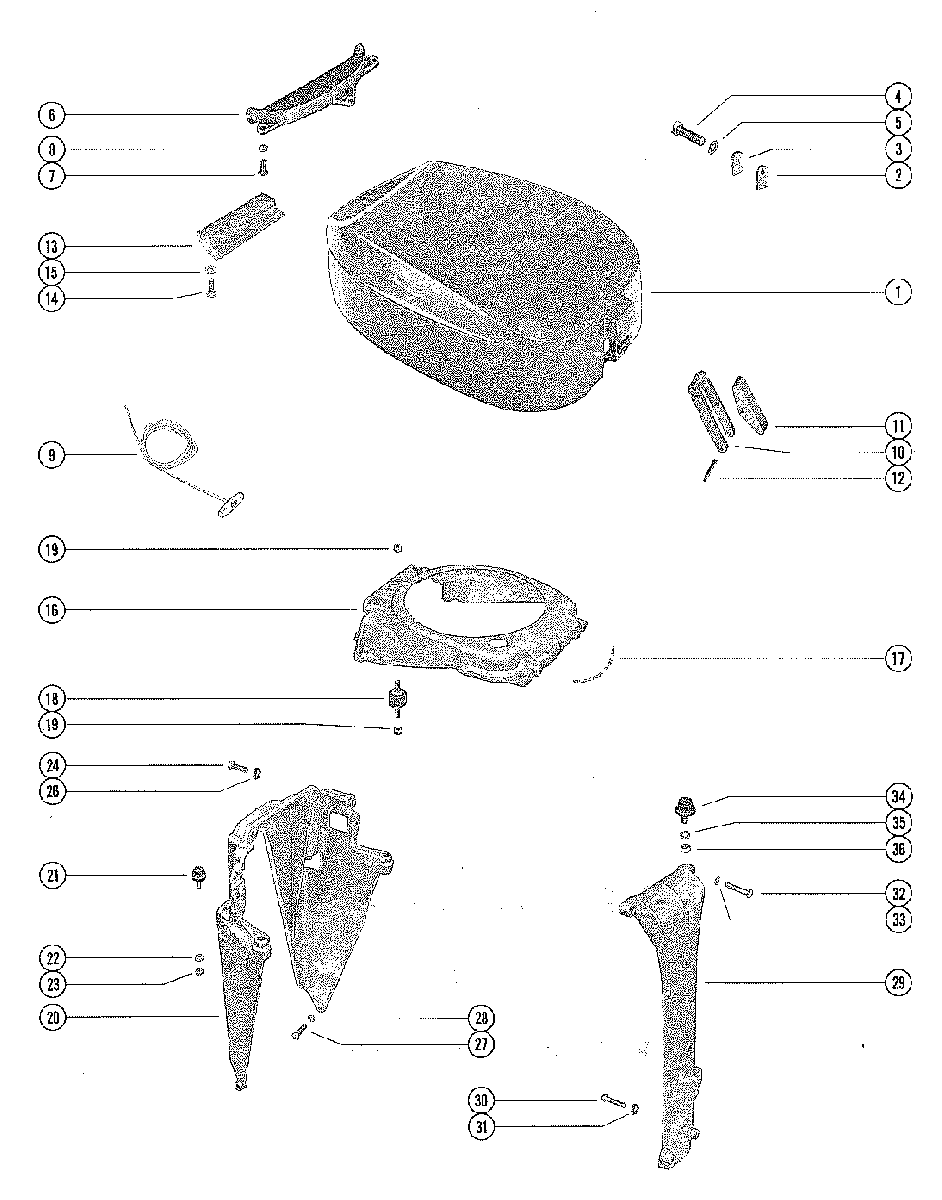

TOP COWL AND SUPPORT BRACKETS для Mariner - 115 (6 CYL.) 4865178 THRU 5430526
-
№АртикулНазвание
-
12162-6392T6 COWL, TOP (WITHOUT DECALS)COWL, TOP (WITHOUT DECALS)
-
276440 RETAINER, TOP COWLRETAINER, TOP COWL
-
376505 PAD, BUMPER - TOP COWL RETAINERPAD, BUMPER - TOP COWL RETAINER
-
410-25299 SCREW, RETAINER TO TOP COWL (3/4")SCREW, RETAINER TO TOP COWL (3/4")
-
513-39107 LOCKWASHER, RETAINER TO TOP COWL SCREWLOCKWASHER, RETAINER TO TOP COWL SCREW
-
676433 SHIELD, TOP COWL - REARSHIELD, TOP COWL - REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
947341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)ROPE, STARTER (FOR MANUAL STARTING ONLY)
-
1052739 HINGE, COWL LATCH - TOP COWLHINGE, COWL LATCH - TOP COWL
-
1194918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1217-58998 PIN, ROLL - COWL LATCH LEVER TO HINGEPIN, ROLL - COWL LATCH LEVER TO HINGE
-
1355455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
1410-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1513-26992 LOCKWASHER, REAR HOOK MOUNTING SCREWLOCKWASHER, REAR HOOK MOUNTING SCREW
-
1679897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5180698 AND BELOWFRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5180698 AND BELOW -
1679897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5180699 AND UP
AUSTRALIA 8057045 AND UPFRAME ASSEMBLY, TOP COWL SUPPORT
UNITED STATES 5180699 AND UP
AUSTRALIA 8057045 AND UP -
1737-73291 DECAL, TIMING (FLYWHEEL)DECAL, TIMING (FLYWHEEL)
-
1890435 MOUNT, RUBBER - TOP COWL FRAMEMOUNT, RUBBER - TOP COWL FRAME
-
1846096 MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
-
1911-35888 NUT, RUBBER MOUNT TO TOP COWL FRAMENUT, RUBBER MOUNT TO TOP COWL FRAME
-
2086472 BRACKET, TOP COWL SUPPORT - REARBRACKET, TOP COWL SUPPORT - REAR
-
2131014 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
2213-26992 LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2311-29598 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKETNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
-
2410-37562 SCREW, REAR BRACKET TO FRAME (1")SCREW, REAR BRACKET TO FRAME (1")
-
2613-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
2710-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")SCREW, REAR BRACKET TO BOTTOM COWL (1")
-
2813-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
2942706A1 BRACKET ASSEMBLY, TOP COWL - FRONTBRACKET ASSEMBLY, TOP COWL - FRONT
-
3010-60411 SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/4")SCREW, FRONT BRACKET TO BOTTOM COWL (1 1/4")
-
3113-26992 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3210-55511 SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2")
-
3313-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
3437640 MOUNT, RUBBER FRONT SUPPORT BRACKETMOUNT, RUBBER FRONT SUPPORT BRACKET
-
3513-26993 LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKETLOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET
-
3611-28770 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKETNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
