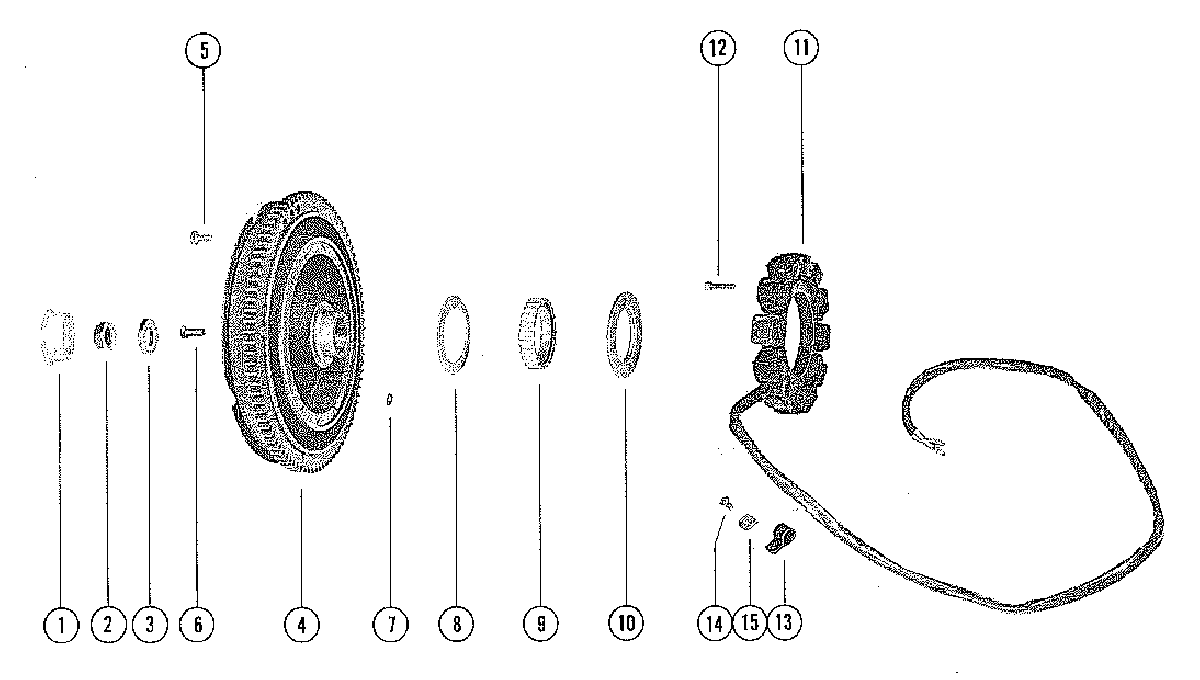

FLYWHEEL ASSEMBLY AND STATOR для Mariner - 115 (6 CYL.) 4865178 THRU 5430526

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 2
    11-52901 NUT, FLYWHEEL (PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)
    NUT, FLYWHEEL (PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5180698 AND BELOW
    FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5180698 AND BELOW
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
    FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
  • 5
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 6
    10-68997 SCREW, PLATE/HUB TO FLEX. PLATE
    SCREW, PLATE/HUB TO FLEX. PLATE
  • 7
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 8
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 9
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 10
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 11
    398-4793 STATOR, ALTERNATOR (NOT AS SHOWN)
    STATOR, ALTERNATOR (NOT AS SHOWN)
  • 12
    10-75840 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 13
    54-24871 CLIP, STATOR LEAD FASTENING (5/8")
    CLIP, STATOR LEAD FASTENING (5/8")
  • 13
    54-22627 CLIP, STATOR/WIRING HARNESS LEADS FASTENING (1/2")
    CLIP, STATOR/WIRING HARNESS LEADS FASTENING (1/2")
  • 14
    10-62568 SCREW, STATOR LEAD CLIP FASTENING (3/8")
    SCREW, STATOR LEAD CLIP FASTENING (3/8")
  • 15
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
