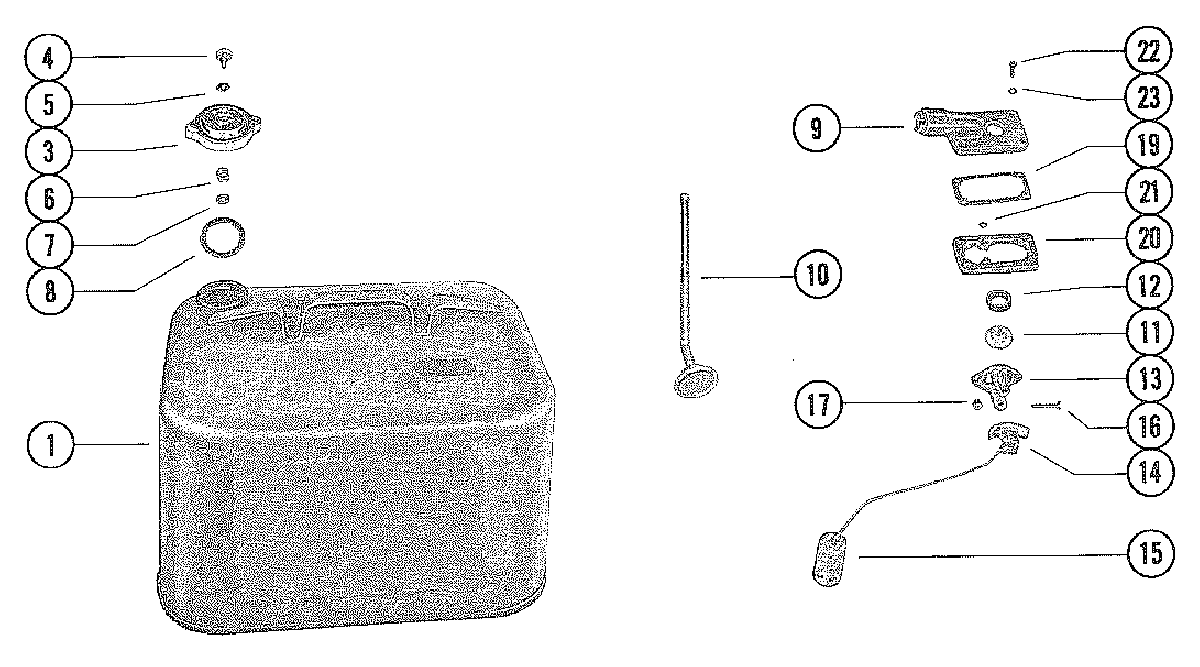

FUEL TANK ASSEMBLY (6 GALLON) для Mariner - 115 (6 CYL.) 4865178 THRU 5430526

  • №
    Артикул
    Название
  • 1259-812410A1 FUEL TANK ASSEMBLY, COMPLETE (6 GALLON)
    FUEL TANK ASSEMBLY, COMPLETE (6 GALLON)
  • 1
    1259-812410A1 FUEL TANK (6 GALLON)
    FUEL TANK (6 GALLON)
  • 1
    37-13921 DECAL, FUEL TANK
    DECAL, FUEL TANK
  • 3
    36-18962M FILLER CAP ASSEMBLY
    FILLER CAP ASSEMBLY
  • 4
    10-25575 SCREW, VENT - FILLER CAP
    SCREW, VENT - FILLER CAP
  • 5
    12-49221 WASHER, VENT SCREW
    WASHER, VENT SCREW
  • 6
    24-22227 SPRING, TENSION - VENT SCREW
    SPRING, TENSION - VENT SCREW
  • 7
    11-28587 NUT, SPEED - SPRING RETAINER
    NUT, SPEED - SPRING RETAINER
  • 8
    27-41065 GASKET, FILLER CAP TO FUEL TANK
    GASKET, FILLER CAP TO FUEL TANK
  • 8
    64841A1 COVER ASSEMBLY, COMPLETE - FUEL TANK
    COVER ASSEMBLY, COMPLETE - FUEL TANK
  • 9
    17792A1 COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)
    COVER ASS'Y, FUEL TANK (1/4-18 TAPPED HOLE)
  • 10
    32-75239 TUBE ASS'Y (1/4-18 CONNECTOR & 1/2" TUBE) (#32-75239)
    TUBE ASS'Y (1/4-18 CONNECTOR & 1/2" TUBE) (#32-75239)
  • 11
    98542A1 LENS ASSEMBLY, FUEL GAUGE
    LENS ASSEMBLY, FUEL GAUGE
  • 12
    98542A1 GASKET, FUEL GAUGE LENS
    GASKET, FUEL GAUGE LENS
  • 12
    28897A2 FUEL GAUGE ASSEMBLY, COMPLETE
    FUEL GAUGE ASSEMBLY, COMPLETE
  • 13
    20430 RETAINER, FUEL GAUGE
    RETAINER, FUEL GAUGE
  • 14
    28897A1 INDICATOR AND FLOAT ASSEMBLY
    INDICATOR AND FLOAT ASSEMBLY
  • 15
    99274 FLOAT, FUEL GAUGE
    FLOAT, FUEL GAUGE
  • 16
    17-20426 RIVET, INDICATOR TO RETAINER
    RIVET, INDICATOR TO RETAINER
  • 17
    10-62568 SCREW, RETAINER TO FUEL TANK COVER (5/16")
    SCREW, RETAINER TO FUEL TANK COVER (5/16")
  • 19
    27-28862 GASKET, COVER ASSEMBLY TO FRAME
    GASKET, COVER ASSEMBLY TO FRAME
  • 20
    28860 FRAME, RETAINING - FUEL TANK COVER
    FRAME, RETAINING - FUEL TANK COVER
  • 21
    11-28903 FASTENER, RETAINING FRAME TO FUEL TANK
    FASTENER, RETAINING FRAME TO FUEL TANK
  • 22
    10-20411 SCREW, FUEL TANK COVER TO FUEL TANK
    SCREW, FUEL TANK COVER TO FUEL TANK
  • 23
    12-29070 WASHER, FUEL TANK COVER FASTENING SCREW
    WASHER, FUEL TANK COVER FASTENING SCREW
