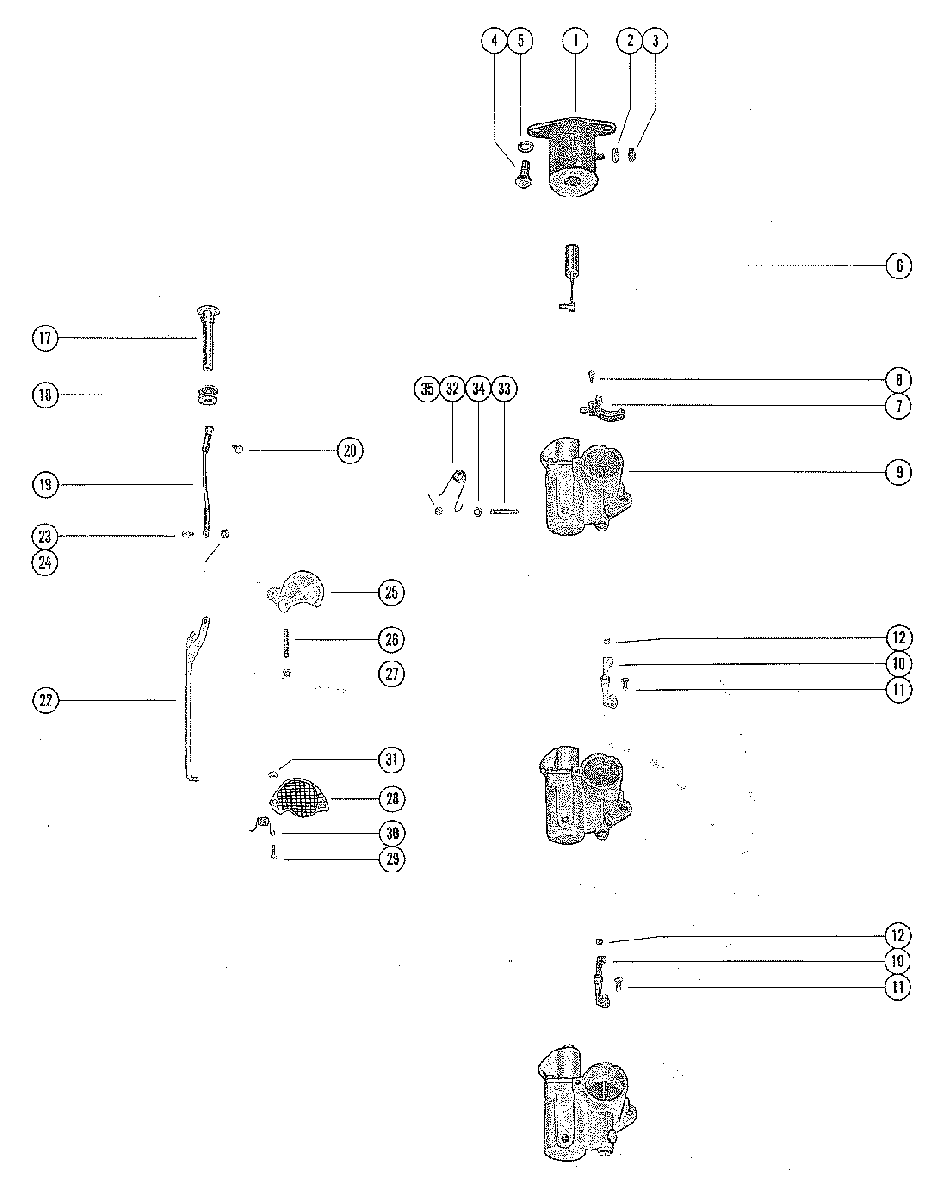

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mariner - 115 (6 CYL.) 4865178 THRU 5430526
-
№АртикулНазвание
-
154293A10 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, SOLENOID TERMINALLOCKWASHER, SOLENOID TERMINAL
-
311-68219 NUT, SOLENOID TERMINALNUT, SOLENOID TERMINAL
-
410-25299 SCREW, CHOKE SOLENOID (3/4")SCREW, CHOKE SOLENOID (3/4")
-
513-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
690548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
752518 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
81395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
91368-5702A19 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5076583 AND BELOWCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5076583 AND BELOW -
91368-5702A19 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5076584 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 5076584 AND UP -
1053720A2 THROTTLE PICK-UP BRACKET ASSEMBLYTHROTTLE PICK-UP BRACKET ASSEMBLY
-
1110-66104 SCREW, THROTTLE BRACKET MOUNTINGSCREW, THROTTLE BRACKET MOUNTING
-
1228-89694 INSERT, THROTTLE COUPLINGINSERT, THROTTLE COUPLING
-
1790242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1825-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1949589 STRAP, CHOKE KNOB TO CHOKE RODSTRAP, CHOKE KNOB TO CHOKE ROD
-
2010-77137 SCREW, STRAP TO CHOKE KNOB (5/8")SCREW, STRAP TO CHOKE KNOB (5/8")
-
2248203 ROD, CHOKEROD, CHOKE
-
2310-48591 SCREW, STRAP TO CHOKE ROD (1/2")SCREW, STRAP TO CHOKE ROD (1/2")
-
2411-46438 NUT, STRAP TO CHOKE ROD SCREWNUT, STRAP TO CHOKE ROD SCREW
-
2548152 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2616-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2711-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
2835-57819 SCREEN ASSEMBLY, FILTER - CARBURETORSCREEN ASSEMBLY, FILTER - CARBURETOR
-
2910-22523 SCREW, LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")SCREW, LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")
-
2910-23015 SCREW, UPPER CARBURETOR FILTER SCREEN TO CARB. (1")SCREW, UPPER CARBURETOR FILTER SCREEN TO CARB. (1")
-
3024-57818 SPRING, UPPER FILTER SCREEN SCREWSPRING, UPPER FILTER SCREEN SCREW
-
3111-20110 NUT, CARBURETOR FILTER SCREEN FASTENING SCREWNUT, CARBURETOR FILTER SCREEN FASTENING SCREW
-
3224-48230 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3310-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3423-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3511-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
