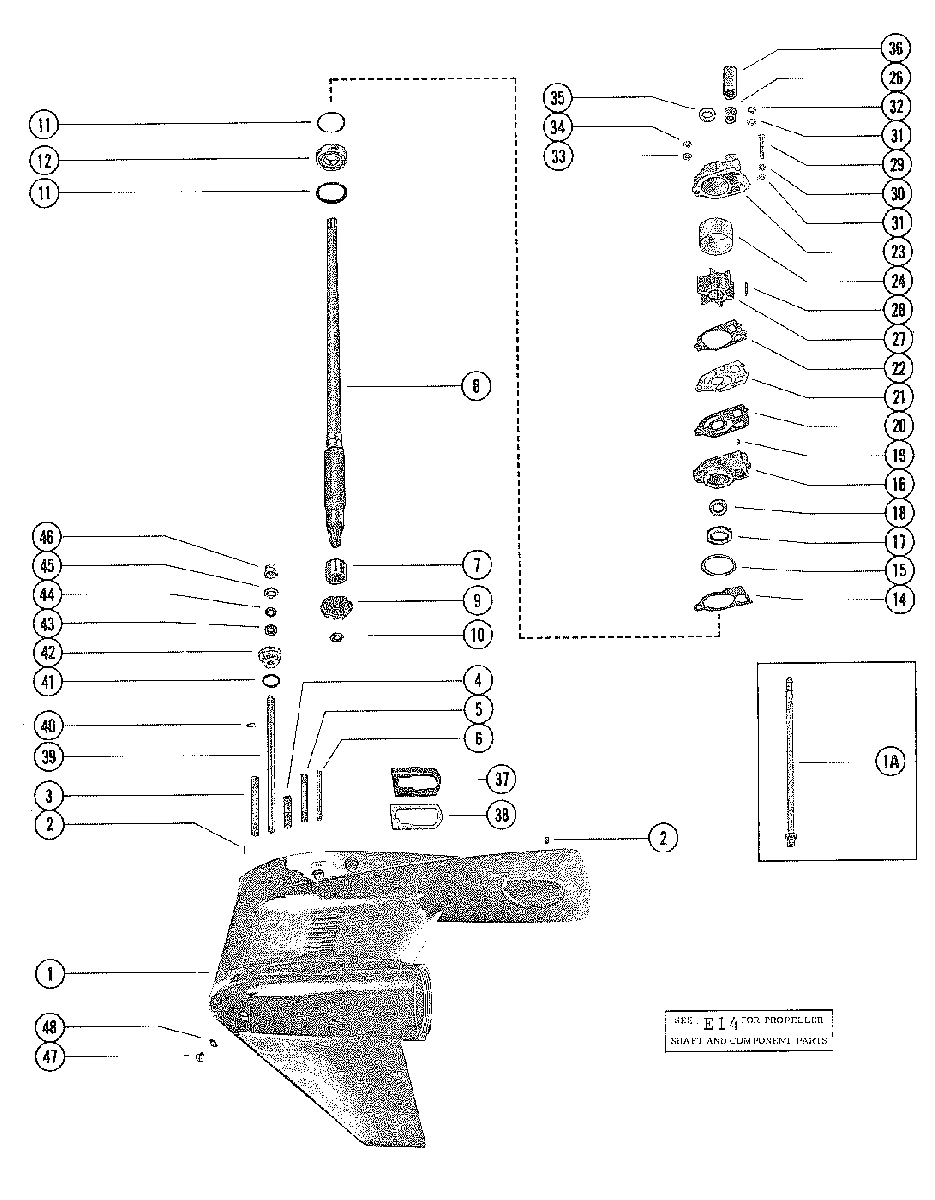

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mariner - 115 (6 CYL.) 4865178 THRU 5430526

  • №
    Артикул
    Название
  • 1655-7333T24 GEAR HOUSING ASS'Y, COMP.
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON E12 AND E14 UNITED STATES 5180698 AND BELOW
    GEAR HOUSING ASS'Y, COMP.
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON E12 AND E14 UNITED STATES 5180698 AND BELOW
  • 1655-7333T24 GEAR HOUSING ASS'Y, COMP.
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON E12 AND E14 UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
    GEAR HOUSING ASS'Y, COMP.
    THE ENCLOSED GEAR HOUSINGS INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON E12 AND E14 UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    UNITED STATES 5180698 AND BELOW
    GEAR HOUSING ASS'Y
    UNITED STATES 5180698 AND BELOW
  • 1
    1655-7333T23 GEAR HOUSING ASS'Y
    UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
    GEAR HOUSING ASS'Y
    UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
  • 1A
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
    CONNECTOR ASSEMBLY, SPEEDOMETER
    UNITED STATES 5180699 AND UP
    AUSTRALIA 8057045 AND UP
  • 2
    17-8M0084726 DOWEL PIN, GEAR HOUSING LOCATING
    DOWEL PIN, GEAR HOUSING LOCATING
  • 3
    16-57921 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4")
  • 4
    16-8M0133358 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 1/16")
  • 5
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
  • 6
    16-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8")
  • 7
    31-32898T BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 8
    45-42646 DRIVE SHAFT
    DRIVE SHAFT
  • 9
    43-68548T3 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
    Производитель Mercury-Mercruiser
  • 10
    11-35921 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 11
    23-70412 SPACER, BALL BEARING TO BASE
    SPACER, BALL BEARING TO BASE
  • 11
    15-57007A1 SHIM, BALL BEARING TO BASE
    SHIM, BALL BEARING TO BASE
  • 12
    31-69220T ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 14
    27-856704 GASKET, WATER PUMP BASE
    GASKET, WATER PUMP BASE
  • 15
    25-33145 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 16
    46-96146A5 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 17
    26-94038 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 18
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 19
    17-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
  • 20
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLATE
  • 21
    324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 22
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 23
    46-96148T1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 24
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 26
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 27
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 28
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 29
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
    SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4")
  • 30
    13-26992 LOCKWASHER, WATER PUMP BODY SCREW
    LOCKWASHER, WATER PUMP BODY SCREW
  • 31
    12-29245 WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
    WASHER, WATER PUMP BODY FASTENING SCREW AND STUD
  • 32
    11-35888 NUT, WATER PUMP FASTENING SCREW
    NUT, WATER PUMP FASTENING SCREW
  • 33
    12-36001 WASHER, WATER PUMP BODY FASTENING STUD
    WASHER, WATER PUMP BODY FASTENING STUD
  • 34
    11-82670911 NUT, WATER PUMP BODY FASTENING STUD
    NUT, WATER PUMP BODY FASTENING STUD
  • 35
    25-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 36
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 37
    37641001 SEAL, EXHAUST ELBOW
    SEAL, EXHAUST ELBOW
  • 38
    38051 PLATE, SUPPORT - EXHAUST TUBE SEAL
    PLATE, SUPPORT - EXHAUST TUBE SEAL
  • 39
    76062A1 SHAFT ASSEMBLY, SHIFT - LOWER
    SHAFT ASSEMBLY, SHIFT - LOWER
  • 40
    53-29641 "E" RING, RETAINING - SHIFT SHAFT
    "E" RING, RETAINING - SHIFT SHAFT
  • 41
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-8164641 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 44
    12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 45
    78036 SPACER, LOWER - REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM
    SPACER, LOWER - REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM
  • 46
    43308T1 CAM, REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM
    CAM, REVERSE LOCKING
    NOT USED WITH FULL POWER TRIM
  • 47
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 47
    22-8M0058389 PLUG, DRAIN (MAGNETIC)
    PLUG, DRAIN (MAGNETIC)
  • 48
    12-191833 WASHER, GREASE FILLER AND VENT HOLE SCREW
    WASHER, GREASE FILLER AND VENT HOLE SCREW
  • 1
    32-877682Q8 FUEL LINE ASSEMBLY (8')
    FUEL LINE ASSEMBLY (8')
  • 1
    32-877682Q12 FUEL LINE ASSEMBLY (12')
    FUEL LINE ASSEMBLY (12')
  • 2
    89396Q01 PRIMER BULB ASSEMBLY
    PRIMER BULB ASSEMBLY
  • 3
    21-13883A3 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 4
    21-13883A4 FITTING, FUEL LINE TO PRIMER BULB
    FITTING, FUEL LINE TO PRIMER BULB
  • 5
    54-27764 CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
    CLAMP, PRIMER BULB TO CHECK VALVE (LARGE)
  • 6
    54-55206 CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
    CLAMP, FUEL LINE TO CHECK VALVE (SMALL)
  • 7
    22-63187 CONNECTOR, FUEL LINE (FUEL TANK END)
    CONNECTOR, FUEL LINE (FUEL TANK END)
  • 8
    22-63186 CONNECTOR, FUEL LINE (ENGINE END)
    CONNECTOR, FUEL LINE (ENGINE END)
  • 9
    54-55206 CLAMP, FUEL LINE TO CONNECTOR
    CLAMP, FUEL LINE TO CONNECTOR
  • 10
    30185Q3 BAYONET BODY ASSEMBLY (FUEL TANK END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    BAYONET BODY ASSEMBLY (FUEL TANK END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 11
    30185Q3 STEM, BAYONET BODY
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    STEM, BAYONET BODY
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 12
    25-16524 "O" RING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    "O" RING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 13
    24-30189 SPRING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    SPRING, BAYONET BODY STEM
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 14
    30188 WASHER, CUPPED - BAYONET BODY SPRING
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    WASHER, CUPPED - BAYONET BODY SPRING
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
  • 15
    22831Q3 CHECK UNIT ASSEMBLY (ENGINE END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
    CHECK UNIT ASSEMBLY (ENGINE END)
    THE ENCLOSED PARTS ARE INCLUDED WITH ENGINE
