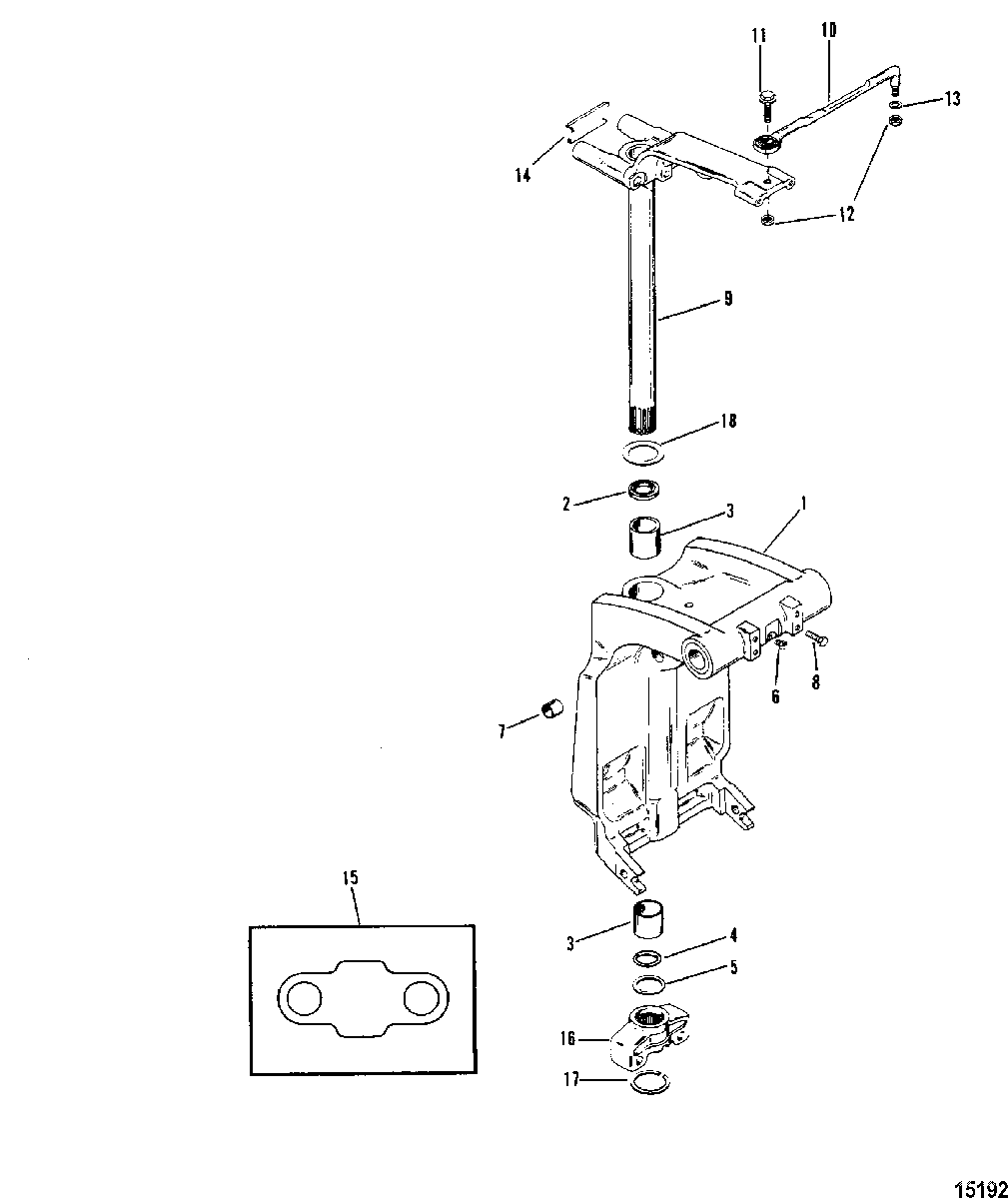

Swivel Bracket and Steering Arm(8709C6 / 818904C) для Mariner - 100 (4 CYL.) 9523034 THRU 9793576
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, Black
(Use With Non-Power Trim And Three Ram Power)SWIVEL BRACKET ASSEMBLY, Black
(Use With Non-Power Trim And Three Ram Power) -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, Gray
(Use With Non-Power Trim And Three Ram Power)SWIVEL BRACKET ASSEMBLY, Gray
(Use With Non-Power Trim And Three Ram Power) -
11400-8M0107419 SWIVEL BRACKET ASSEMBLY, Black
(Use With Single Ram Power Trim)SWIVEL BRACKET ASSEMBLY, Black
(Use With Single Ram Power Trim) -
13408-818904T2 SWIVEL BRACKET ASSEMBLY, Gray
(Use With Single Ram Power Trim)SWIVEL BRACKET ASSEMBLY, Gray
(Use With Single Ram Power Trim) -
226-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
323-818764 BUSHINGBUSHING
-
425-33504 O-RINGO-RING
-
523-816039 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
999661A35 SWIVEL PIN ASSEMBLY, BlackSWIVEL PIN ASSEMBLY, Black
-
999661A35 SWIVEL PIN ASSEMBLY, GraySWIVEL PIN ASSEMBLY, Gray
-
1092876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1110-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
1211-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1312-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
148M0000516 BUMPER, X-LongBUMPER, X-Long
-
1511288001 BUMPER, Bottom Yoke, X-LongBUMPER, Bottom Yoke, X-Long
-
1642961A06 YOKE ASSEMBLY, Bottom, BlackYOKE ASSEMBLY, Bottom, Black
-
1642961A06 YOKE ASSEMBLY, Bottom, GrayYOKE ASSEMBLY, Bottom, Gray
-
1753-67684 RING, RetainingRING, Retaining
-
1812-816432 THRUST WASHERTHRUST WASHER
