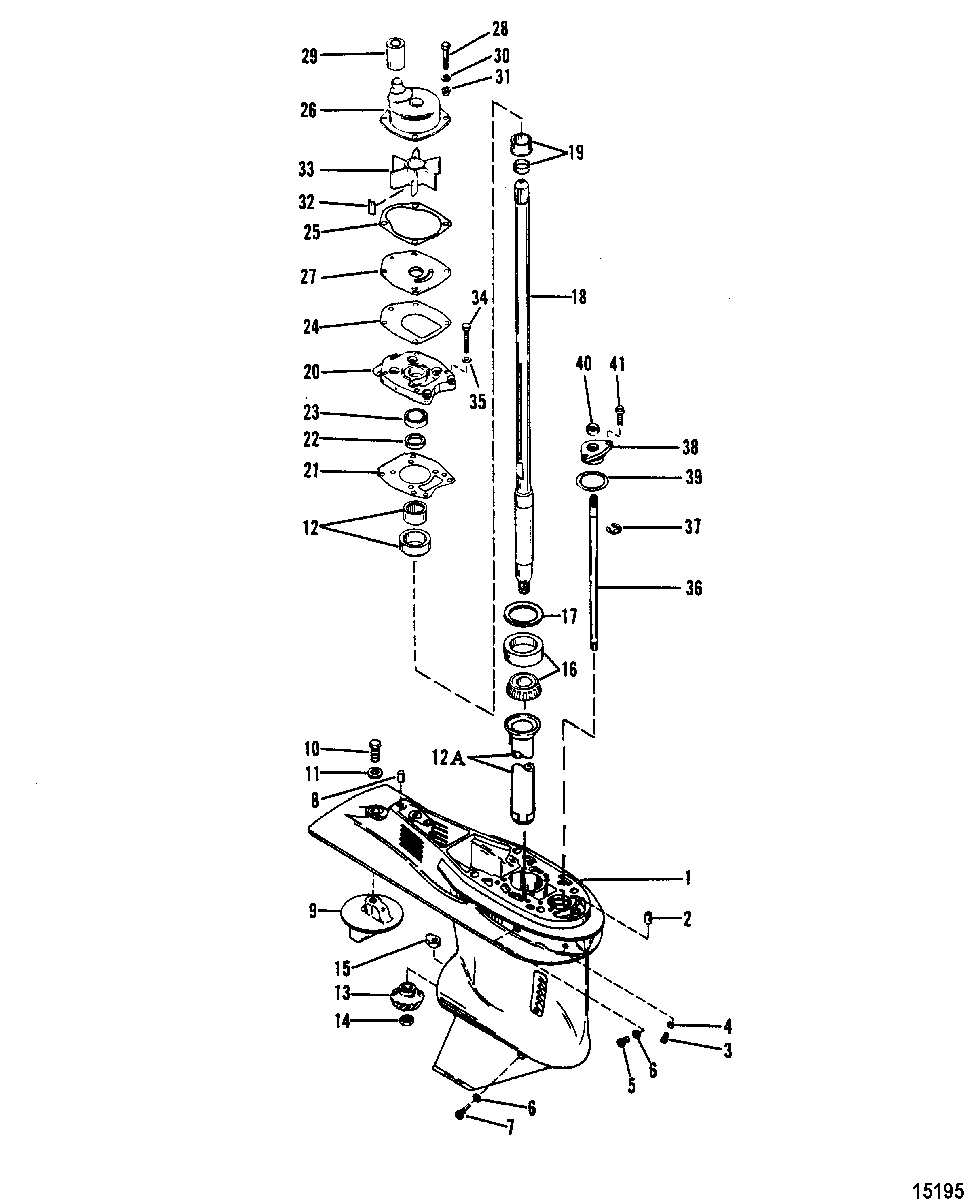

Gear Housing, Driveshaft для Mariner - 100 (4 CYL.) 9523034 THRU 9793576

  • №
    Артикул
    Название
  • -
    1667-9011J7 GEAR HOUSING ASSEMBLY, Long, Black
    GEAR HOUSING ASSEMBLY, Long, Black
  • -
    1667-9011J10 GEAR HOUSING ASSEMBLY, X-Long, Black
    GEAR HOUSING ASSEMBLY, X-Long, Black
  • -
    1667-9011J7 GEAR HOUSING ASSEMBLY, Long, Gray
    GEAR HOUSING ASSEMBLY, Long, Gray
  • -
    1667-9011G42 GEAR HOUSING ASSEMBLY, X-Long, Gray
    GEAR HOUSING ASSEMBLY, X-Long, Gray
  • -
    1667-9011J7 GEAR HOUSING ASSEMBLY, Long, Oyster
    GEAR HOUSING ASSEMBLY, Long, Oyster
  • -
    1667-9011G42 GEAR HOUSING ASSEMBLY, X-Long, Oyster
    GEAR HOUSING ASSEMBLY, X-Long, Oyster
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Black
    GEAR HOUSING ASSEMBLY, Black
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Gray
    GEAR HOUSING ASSEMBLY, Gray
  • 1
    1667-9011T73 GEAR HOUSING ASSEMBLY, Oyster
    GEAR HOUSING ASSEMBLY, Oyster
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) , Front, Quantity Of Two On X-Long
    PIN, Dowel - With Hole (.375 x .625) , Front, Quantity Of Two On X-Long
  • 3
    10-28653 SCREW, (#10-32 x 0.25), New Design Used For Reference Number 6, 7
    SCREW, (#10-32 x 0.25), New Design Used For Reference Number 6, 7
  • 4
    19643 SEAL
    SEAL
  • 5
    10-79953Q04 SCREW, (.375-16 x .250), Magnetic
    SCREW, (.375-16 x .250), Magnetic
  • 6
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 7
    22-8M0058389 SCREW, Magnetic
    SCREW, Magnetic
  • 8
    17-43044 PIN, Dowel - Without Hole (.375 x .625), Rear, Quantity Of Two On X-Long
    PIN, Dowel - Without Hole (.375 x .625), Rear, Quantity Of Two On X-Long
  • 9
    97-31640Q4 TRIM TAB
    TRIM TAB
  • 10
    10-825427 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 11
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 12
    43040T1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 12A
    43046 TUBE, Oiler
    TUBE, Oiler
  • 13
    43-881259A1 GEAR ASSEMBLY, Pinion
    GEAR ASSEMBLY, Pinion
  • 14
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 15
    760394 CAM, Shift Control
    CAM, Shift Control
  • 16
    31-42677A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 17
    15-8M0063265 SHIM SET
    SHIM SET
  • 18
    45-43031A1 DRIVESHAFT ASSEMBLY, Long
    DRIVESHAFT ASSEMBLY, Long
  • 18
    45-43032A4 DRIVESHAFT ASSEMBLY, X-Long
    DRIVESHAFT ASSEMBLY, X-Long
  • 19
    42461A1 SLEEVE/RING KIT
    SLEEVE/RING KIT
  • 20
    46-8M0113262 COVER ASSEMBLY, Water Pump, Aluminum Cover
    COVER ASSEMBLY, Water Pump, Aluminum Cover
  • 21
    27-430472 GASKET, Aluminum Cover
    GASKET, Aluminum Cover
  • 22
    26-43036 SEAL, Oil, Lower, Aluminum Cover
    SEAL, Oil, Lower, Aluminum Cover
  • 23
    26-43035 SEAL, Oil, Upper, Aluminum Cover
    SEAL, Oil, Upper, Aluminum Cover
  • 24
    27-430331 GASKET, Aluminum Cover
    GASKET, Aluminum Cover
  • 25
    27-430341 GASKET, Aluminum Cover
    (Use With Reference Number 30 And 31)
    GASKET, Aluminum Cover
    (Use With Reference Number 30 And 31)
  • 25
    27-8172771 GASKET
    (Use Without Reference Number 30 And 31)
    GASKET
    (Use Without Reference Number 30 And 31)
  • 20
    46-8M0113262 COVER ASSEMBLY, Plastic Cover
    COVER ASSEMBLY, Plastic Cover
  • 20
    46-8M0113262 COVER ASSEMBLY, Aluminum Cover
    COVER ASSEMBLY, Aluminum Cover
  • 22
    26-43036 SEAL, Oil, Lower, Plastic Cover
    SEAL, Oil, Lower, Plastic Cover
  • 23
    26-43035 SEAL, Oil, Upper, Plastic Cover
    SEAL, Oil, Upper, Plastic Cover
  • 25
    27-430341 GASKET, Aluminum Cover, Plastic Cover
    GASKET, Aluminum Cover, Plastic Cover
  • 26
    817275A2 PUMP ASSEMBLY, Water, Use With Reference Number 30 And 31
    PUMP ASSEMBLY, Water, Use With Reference Number 30 And 31
  • 27
    NLA No Longer Available, Order 817275A2
    (Use With Reference Number 30 And 31)
    No Longer Available, Order 817275A2
    (Use With Reference Number 30 And 31)
  • 28
    10-4000332 SCREW, (M6 x 35), Use With Reference Number 30 And 31
    SCREW, (M6 x 35), Use With Reference Number 30 And 31
  • 29
    43023 SEAL, Use With Reference Number 30 And 31
    SEAL, Use With Reference Number 30 And 31
  • 30
    12-4002315 WASHER, (6.60 X 12.5 X 1.5 mm -SS), Use With Reference Number 30 And 31
    WASHER, (6.60 X 12.5 X 1.5 mm -SS), Use With Reference Number 30 And 31
  • 31
    23-43045 INSULATOR, Use With Reference Number 30 And 31
    INSULATOR, Use With Reference Number 30 And 31
  • 26
    817275A2 HOUSING KIT, Upper Water Pump
    (Use Without Reference Number 30 And 31)
    HOUSING KIT, Upper Water Pump
    (Use Without Reference Number 30 And 31)
  • 27
    8172761 FACEPLATE, Use Without Reference Number 30 And 31
    FACEPLATE, Use Without Reference Number 30 And 31
  • 28
    10-40011130 SCREW, (M6 x 30) Stainless Steel, Use Without Reference Number 30 And 31
    SCREW, (M6 x 30) Stainless Steel, Use Without Reference Number 30 And 31
  • 29
    43023 SEAL, Use Without Reference Number 30 And 31
    SEAL, Use Without Reference Number 30 And 31
  • 32
    28-8M0032833 KEY
    KEY
  • 33
    47-43026T2 IMPELLER
    IMPELLER
  • 34
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 35
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 36
    43048A1 SHIFT SHAFT ASSEMBLY, Long
    SHIFT SHAFT ASSEMBLY, Long
  • 36
    43049A1 SHIFT SHAFT ASSEMBLY, X-Long
    SHIFT SHAFT ASSEMBLY, X-Long
  • 37
    53-29641 E RING
    E RING
  • 38
    23-43052A4 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 39
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 40
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 41
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
